USB Charging Socket 1 Type-A & 1 Type-C Port 3A 15W Output Legrand

BRAND: Legrand
SKU: 571077
$178.60 List price: $222.60
1 EA ($178.60 per EA)
+ −
30 Days Return Electricians Unlock Trade Access

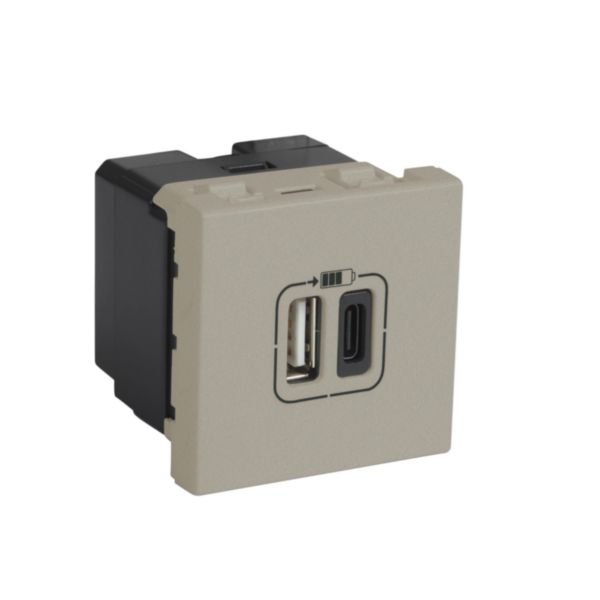

The Arteor USB Charging Socket features 1 USB Type-A and 1 USB Type-C port, delivering a total output of 3A 15W for efficient charging of mobile devices.
Technical Specifications
  • Number of USB-A ports: 1
  • Number of USB-C ports: 1
  • Operating voltage: 100-240 V AC
  • Frequency: 50-60 Hz
  • Max output current: 3000 mA
  • Output voltage: 5 V DC
  • Power consumption: 0.066 W standby
  • Connection type: Screwed terminal
  • Mounting method: Flush-mounted
  • Degree of protection: IP40
  • Impact strength: IK04
  • Operating temperature: 5-40 °C
  • Storage temperature: -20 to 70 °C
  • Cable section: 1.5-2.5 mm²
  • Mandatory neutral connection required
  • Dimensions (H x L x W): 45mm x 42mm x 45mm
  • Weight: 0.1 kg
Key Features
  • 1 USB Type-A and 1 USB Type-C charging ports
  • Output current: 3 A / 15 W total power
  • Operating voltage: 100-240 V AC
  • Flush-mounted installation with screwed terminal connection
  • Complies with IEC 62684 standard for USB charging
  • IP40 rated for protection against solid objects
  • IK04 impact resistance
  • Halogen free materials
  • Compatible with flexible or rigid cables of 1.5-2.5 mm² section
Professional Installation Requirements
  • Professional installation by a qualified electrician is recommended to ensure compliance with electrical standards and safety.
Applications
  • Residential: Charging mobile devices in homes
  • Commercial: Offices, hotels, and public spaces for device charging
  • General: Suitable for flush-mounted installation in electrical wiring systems
Standards & Compliance
  • AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
  • Energy-efficient USB charging reduces power consumption compared to traditional chargers.
  • Halogen-free materials contribute to reduced environmental impact.
Warranty Information

Legrand standard warranty applies, typically 2 years against manufacturing defects.

Available Now

The Legrand Arteor USB Type-A + USB Type-C charging socket is available for immediate purchase, ideal for residential and commercial electrical wiring applications.

F02464FR-03 (F02464FR-03.pdf, 114 Kb) [Download]

F02464EN-03 (F02464EN-03.pdf, 128 Kb) [Download]

ex223001_0568 (ex223001_0568.pdf, 107 Kb) [Download]
