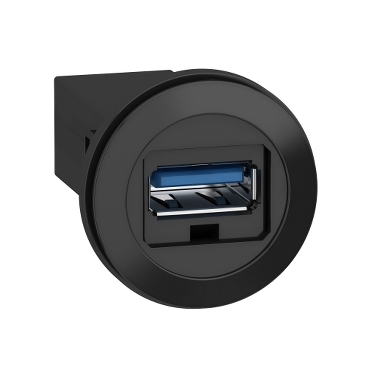

USB Panel Mount 22mm 3.0 Port | Fast Data Transfer | Robust Industrial Design | @Pack of 1 | by Clipsal
The USB Panel Mount 22mm 3.0 Port is designed for fast data transfer with a robust construction, making it ideal for industrial control panels and automation equipment. With a standard 22mm mounting diameter and backward compatibility with USB 2.0/1.1, this panel mount ensures reliable connectivity in commercial and industrial environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: USB Panel Mount 22mm 3.0 Port | Fast Data Transfer | Robust Industrial Design | @Each of 1 | by Clipsal
Brand: Clipsal
SKU: SCHXB5PUSB3
Alternatively Known As: 22mm USB 3.0 Panel Mount, Clipsal USB Panel Mount, Industrial USB Panel Connector, SCHXB5PUSB3, USB 3.0 Panel Socket
Technical Specifications
- USB Version: 3.0 (backward compatible with USB 2.0/1.1)
- Mounting Diameter: 22mm
- Connector Type: USB-A female
- Panel Mounting: Threaded with locking nut
- Cable Length: Approx. 0.5m (varies by model)
- Material: Industrial-grade plastic and metal
- Rated Voltage: 5V DC
- Data Transfer Rate: Up to 5Gbps (USB 3.0 standard)
- Operating Temperature: -20°C to +60°C
- Dimensions (H x L x W): 22mm x 40mm x 22mm
- Weight: 0.1 kg
Key Features
- USB 3.0 panel mount for fast data transfer
- 22mm mounting diameter for standard panel cutouts
- Robust construction for industrial environments
- Easy installation with secure panel mounting
- Compatible with USB 3.0 and backward compatible with USB 2.0/1.1
Professional Installation Requirements
- Installation should be performed by a qualified technician or electrician to ensure proper panel mounting and electrical safety.
Applications
- Industrial control panels
- Automation equipment
- Electrical enclosures
- Machine interface panels
- Commercial and industrial environments requiring USB connectivity
Standards & Compliance
- Complies with AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Enables efficient device connectivity, reducing the need for additional adapters and minimizing electronic waste.
- Durable design extends product lifespan, reducing replacement frequency.
Warranty Information
12 months manufacturer's warranty against defects.
Available Now
The Clipsal USB Panel Mount 22mm 3.0 Port SCHXB5PUSB3 is available for immediate purchase. Ideal for industrial control panels, automation systems, and commercial enclosures requiring reliable USB connectivity.
