USB Type-A & Type-C Charging Socket | 3A Output | 15W Power | Soft Aluminium Finish | @Each of 1 | by Legrand

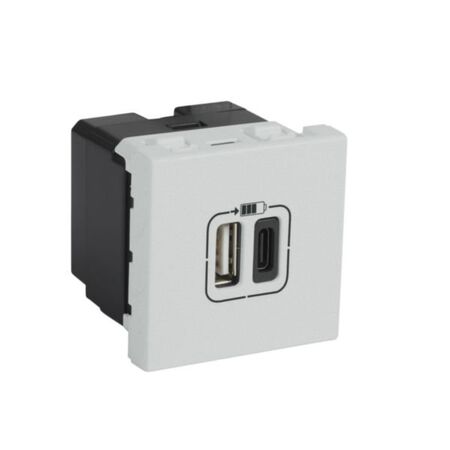

The Arteor USB Type-A and Type-C charging socket offers a powerful 3A output and 15W power, making it perfect for convenient device charging in homes and offices. Designed for flush-mounted installation, this socket features a modern soft aluminium finish and complies with IEC 62684 standards, ensuring safety and efficiency for all your charging needs.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: USB Type-A & Type-C Charging Socket | 3A Output | 15W Power | Soft Aluminium Finish | @Each of 1 | by Legrand
Brand: Legrand
SKU: 570077
Alternatively Known As: USB Charging Socket, USB Wall Charger Socket, USB Type A and C Power Outlet, Flush Mounted USB Charger
Technical Specifications
- Operating voltage: 100-240 V AC
- Frequency: 50-60 Hz
- Max output current: 3000 mA
- Output voltage: 5 V DC
- Power consumption: 0.066 W standby
- Connection type: Screwed terminal
- Mounting method: Flush-mounted
- Degree of protection: IP40
- Impact resistance: IK04
- Operating temperature: 5-40 °C
- Storage temperature: -20 to 70 °C
- Terminal capacity: 1.5-2.5 mm²
- Cable type: Flexible or rigid
- Dimensions (H x L x W): 45mm x 42mm x 45mm
- Weight: 0.1 kg
Key Features
- 1 USB Type-A and 1 USB Type-C charging ports
- Output current up to 3A and power output of 15W
- Flush-mounted installation with screwed terminal connection
- Soft Aluminium finish for modern aesthetic
- Complies with IEC 62684 standard for USB charging
- IP40 rated for protection against solid objects
- IK04 impact resistance
- Halogen free materials
Professional Installation Requirements
- Installation should be performed by a qualified electrician to ensure compliance with electrical safety standards and proper connection.
Applications
- Residential: Homes, apartments for convenient device charging
- Commercial: Offices, hotels, and public spaces requiring USB charging
- General: Suitable for flush-mounted installation in electrical wiring systems
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Halogen free materials reduce environmental impact
- Energy-efficient USB charging reduces power consumption
- Supports modern device charging reducing need for multiple adapters
Warranty Information
Legrand offers a standard 3-year warranty covering manufacturing defects.
Available Now
The Legrand Arteor USB Type-A + USB Type-C Charging Socket is available for immediate purchase, ideal for residential and commercial electrical wiring applications.
