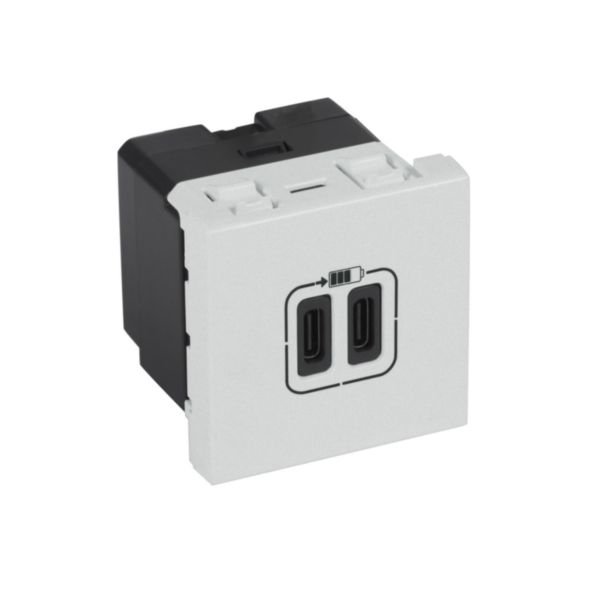

USB Type-C Charging Socket | 2 Ports with 3A Output | Soft Aluminium Finish | @Each of 1 | by Legrand
The USB Type-C Charging Socket features two 3A ports, perfect for charging devices in residential and commercial settings. With a sleek soft aluminium finish and flush-mounted design, it ensures a modern look while providing reliable power delivery. Ideal for homes, offices, and public spaces, this socket complies with IEC 62684 standards and offers low standby power consumption for energy efficiency.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: USB Type-C Charging Socket | 2 Ports with 3A Output | Soft Aluminium Finish | @Each of 1 | by Legrand
Brand: Legrand
SKU: 570078
Alternatively Known As: USB Type-C Wall Charger Socket, USB C Charging Outlet, Dual USB-C Power Socket
Technical Specifications
- Operating voltage: 100-240 V AC
- Frequency: 50-60 Hz
- Max output current: 3000 mA
- Output voltage: 5 V DC
- Power consumption: 0.064 W standby
- Connection type: Screwed terminal
- Mounting method: Flush-mounted
- Degree of protection: IP40
- Impact strength: IK04
- Operating temperature: 5-40 °C
- Storage temperature: -20 to 70 °C
- Number of USB-C ports: 2
- Power delivery: No
- Cable section for connection: 1.5-2.5 mm²
- Halogen free: Yes
- Dimensions (H x L x W): 45mm x 42mm x 45mm
- Weight: 0.1 kg
Key Features
- Two USB Type-C charging ports with 3A / 15W output
- Flush-mounted installation with screwed terminal connection
- Complies with IEC 62684 standard for USB charging
- Soft Aluminium finish for modern aesthetic
- Low standby power consumption of 0.064 W
- IP40 rated for protection against solid objects
- IK04 impact resistance rating
- Halogen free materials
Professional Installation Requirements
- Installation should be performed by a qualified electrician to ensure compliance with electrical safety standards and proper connection.
Applications
- Residential: Charging USB Type-C devices in homes
- Commercial: Offices, hotels, and public spaces for device charging
- General: Suitable for flush-mounted installation in walls
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Low standby power consumption reduces energy waste
- Halogen free materials contribute to safer disposal and reduced environmental impact
Warranty Information
Legrand standard warranty applies, typically 2 years against manufacturing defects.
Available Now
The Legrand Arteor 2 USB Type-C Charging Socket is available for immediate purchase, ideal for modern residential and commercial electrical installations.
