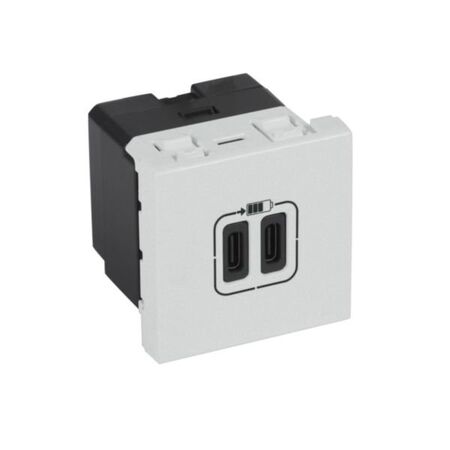

USB Type-C Charging Socket 2 Ports with 3A Output Soft Aluminium Finish Legrand
The USB Type-C Charging Socket features two 3A ports, perfect for charging devices in residential and commercial settings.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Operating voltage: 100-240 V AC
- Frequency: 50-60 Hz
- Max output current: 3000 mA
- Output voltage: 5 V DC
- Power consumption: 0.064 W standby
- Connection type: Screwed terminal
- Mounting method: Flush-mounted
- Degree of protection: IP40
- Impact strength: IK04
- Operating temperature: 5-40 °C
- Storage temperature: -20 to 70 °C
- Number of USB-C ports: 2
- Power delivery: No
- Cable section for connection: 1.5-2.5 mm²
- Halogen free: Yes
- Dimensions (H x L x W): 45mm x 42mm x 45mm
- Weight: 0.1 kg
Key Features
- Two USB Type-C charging ports with 3A / 15W output
- Flush-mounted installation with screwed terminal connection
- Complies with IEC 62684 standard for USB charging
- Soft Aluminium finish for modern aesthetic
- Low standby power consumption of 0.064 W
- IP40 rated for protection against solid objects
- IK04 impact resistance rating
- Halogen free materials
Professional Installation Requirements
- Installation should be performed by a qualified electrician to ensure compliance with electrical safety standards and proper connection.
Applications
- Residential: Charging USB Type-C devices in homes
- Commercial: Offices, hotels, and public spaces for device charging
- General: Suitable for flush-mounted installation in walls
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Low standby power consumption reduces energy waste
- Halogen free materials contribute to safer disposal and reduced environmental impact
Warranty Information
Legrand standard warranty applies, typically 2 years against manufacturing defects.
Available Now
The Legrand Arteor 2 USB Type-C Charging Socket is available for immediate purchase, ideal for modern residential and commercial electrical installations.
