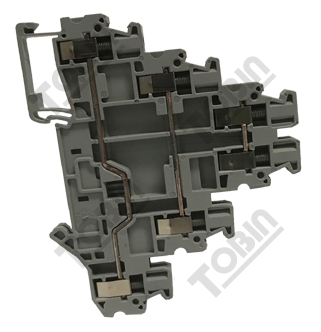

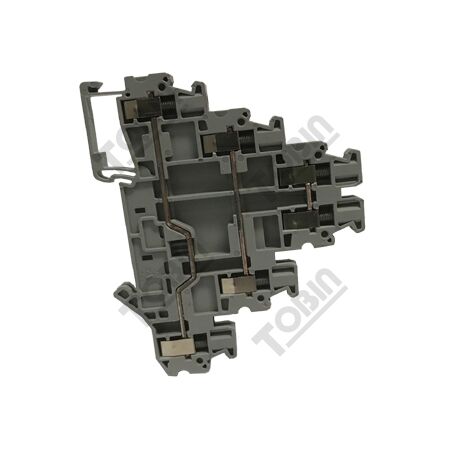

UT Terminal Triple Level 2.5mm | 3x32A Current Rating | DIN Rail Mountable | by Tobin
The UT Terminal Triple Level 2.5mm is designed for efficient electrical wiring with a 3x32A current rating and compact triple level design. Ideal for industrial control panels and electrical distribution systems, this terminal block ensures reliable connections and easy DIN rail installation, making it perfect for automation and control equipment.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: UT Terminal Triple Level 2.5mm | 3x32A Current Rating | DIN Rail Mountable | by Tobin
Brand: Tobin
SKU: 3214259
Alternatively Known As: Triple Level Terminal Block, 2.5mm Terminal Block, DIN Rail Terminal, UT Terminal 2.5mm
Technical Specifications
- Conductor size: 2.5mm²
- Current rating: 3x32A
- Connection type: 1 In / 1 Out
- Mounting: DIN rail
- Material: High-quality insulating material
- Dimensions (H x L x W): 60mm x 60mm x 6mm
- Weight: 0.1 kg
Key Features
- Triple level terminal design for compact wiring
- Supports 2.5mm² conductor size
- Rated for 3x32A current capacity
- DIN rail mountable for easy installation
Professional Installation Requirements
- Installation by a qualified electrician is recommended to ensure compliance with electrical standards and safety.
Applications
- Electrical wiring and connection in industrial control panels
- DIN rail mounting for electrical distribution systems
- Terminal block solutions for automation and control equipment
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Durable design reduces need for frequent replacements, minimizing waste
- Supports efficient electrical connections reducing energy loss
Warranty Information
1 year warranty against manufacturing defects.
Available Now
The Tobin UT Terminal Triple Level 2.5mm 1 In/1 Out 3x32A is available for immediate purchase, ideal for industrial and commercial electrical wiring applications.
