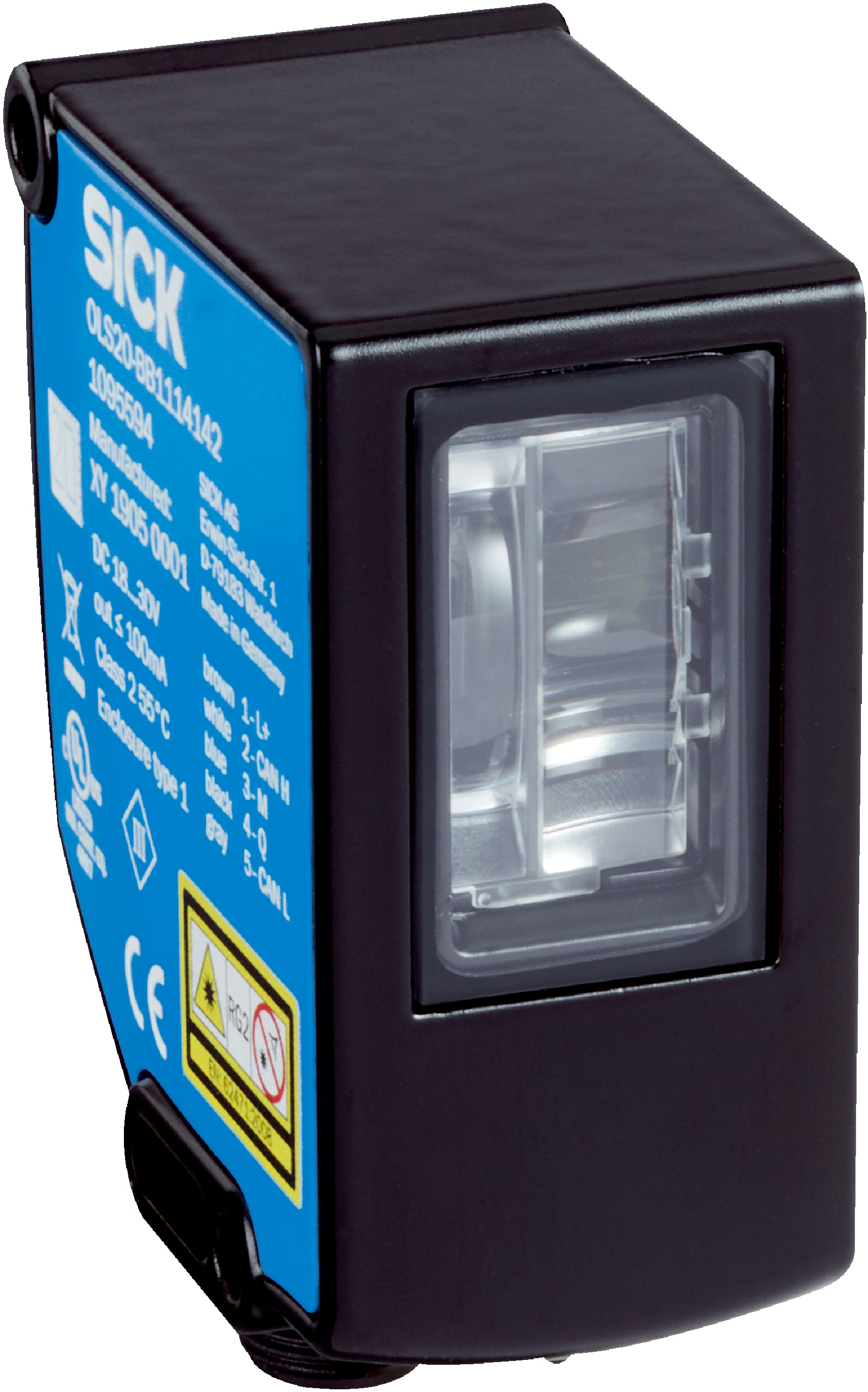

UV LED Optical Sensor OLS20-UB1114340 | 100 mm Sensing Distance | IP67 Rated | by SICK
The UV LED Optical Sensor OLS20-UB1114340 is designed for industrial automation, featuring a sensing distance of up to 100 mm and a UV light source at 385 nm. Ideal for barcode reading and material tracking, this sensor offers high ambient light immunity and an IP67 rated enclosure for dust and water protection, ensuring reliable performance in demanding environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Sensing distance: ≤ 100 mm with ±10 mm tolerance
- Working range: 90 mm to 110 mm
- Light source: LED, UV at 385 nm wavelength
- Light spot size: 180 mm x 9 mm
- Receiving filters: 420 to 750 nm
- Barcode types supported: 2/5 Interleaved with checksum
- Minimum module width: ≥ 1.5 mm
- Minimum line radius: ≥ 0.5 m
- Track colors: Orange, green, yellow
- Supply voltage: 18 V DC to 30 V DC
- Power consumption: < 3 W
- Sampling rate: 10 ms
- Switching output: Push-pull PNP/NPN, max 100 mA
- Protection class: III
- Circuit protection: Reverse polarity, short-circuit, interference pulse suppression
- LED risk group: 2 (IEC 62471)
- Connection type: Plug, M12, 5-pin
- Enclosure rating: IP67
- Operating temperature: -10 °C to +55 °C
- Storage temperature: -25 °C to +75 °C
- Dimensions (H x L x W): 62mm x 52.5mm x 31mm
- Weight: 0.25 kg
Key Features
- Rectangular zinc diecast housing design
- Sensing distance up to 100 mm with ±10 mm tolerance
- UV LED light source with 385 nm wavelength
- Light spot size of 180 mm x 9 mm
- High ambient light immunity up to 50,000 lx
- IP67 rated enclosure for dust and water protection
- Digital output with push-pull PNP/NPN switching
- Supports IO-Link and CANopen communication protocols
- Safety-related parameters with MTTFD of 271 years
- Reverse polarity and short-circuit protected outputs
Professional Installation Requirements
- Installation by qualified personnel is recommended to ensure proper electrical connections and compliance with safety standards.
Applications
- Industrial automation for barcode reading
- Material tracking and identification
- Quality control in manufacturing
- Safety monitoring in production lines
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
- Complies with AS/NZS 3820 – Essential Safety Requirements for Electrical Equipment
Environmental Benefits
- Low power consumption under 3 W reduces energy usage
- Durable zinc diecast housing extends product lifespan
- High ambient light immunity reduces false readings and waste
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy.
Available Now
The SICK OLS20-UB1114340 UV LED Optical Sensor is available for immediate purchase, ideal for industrial automation and barcode reading applications.
