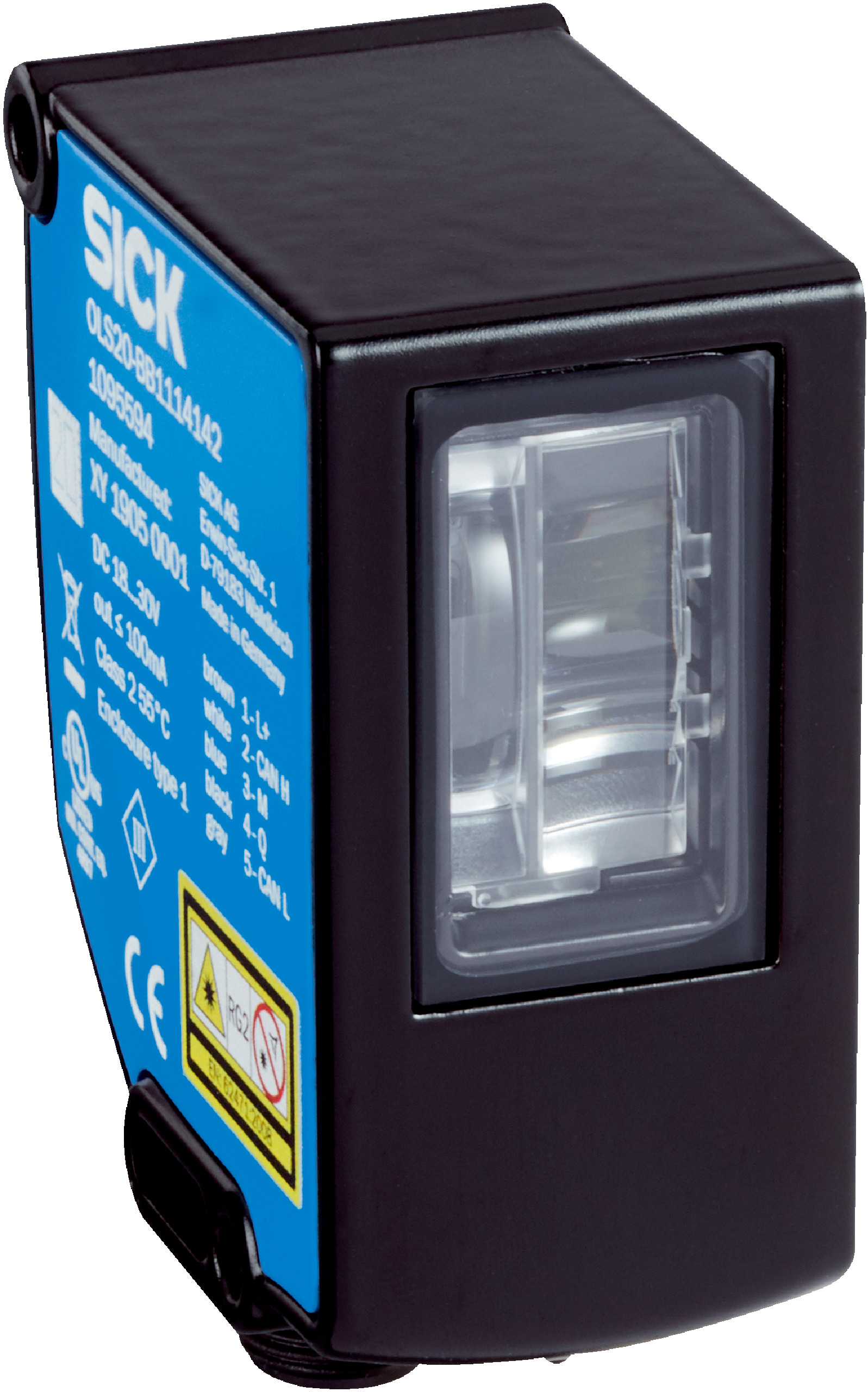

UV LED Optical Sensor OLS20-UB1114140 | 385 nm Wavelength | IP67 Rated | High Ambient Light Immunity | by SICK
The UV LED Optical Sensor OLS20-UB1114140 is designed for industrial automation and barcode reading, featuring a 385 nm wavelength light source and a sensing distance of up to 100 mm. With an IP67 rated enclosure for dust and water protection, this sensor ensures reliable performance in challenging environments, making it ideal for quality control and safety monitoring in manufacturing lines.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Sensing distance: ≤ 100 mm with ±10 mm tolerance
- Working range: 90 mm to 110 mm
- Light source: LED, UV at 385 nm wavelength
- Light spot size: 180 mm x 9 mm
- Receiving filters: 420 to 750 nm
- Barcode types supported: Interleaved 2 of 5
- Minimum module width: ≥ 1.5 mm
- Minimum line radius: ≥ 0.5 m
- Track colors detected: Orange, green, yellow
- Supply voltage: 18 V DC to 30 V DC
- Power consumption: < 3 W
- Sampling rate: 10 ms
- Switching output: Push-pull PNP/NPN, max 100 mA
- Protection class: III
- Circuit protection: Reverse polarity, short-circuit, interference pulse suppression
- Connection type: Plug, M12, 5-pin
- Enclosure rating: IP67
- Operating temperature: -10 °C to +55 °C
- Storage temperature: -25 °C to +75 °C
- Shock load: IEC 60068 compliant
- Communication: IO-Link COM3 (230.4 kBaud), CANopen
- Cycle time: 5 ms
- Process data length: 21 Byte Process Data In
- Safety parameters MTTFD: 271 years
- Dimensions (H x L x W): 62mm x 52.5mm x 31mm
- Weight: 0.25 kg
Key Features
- Rectangular zinc diecast housing for durability
- Sensing distance up to 100 mm with ±10 mm tolerance
- UV LED light source with 385 nm wavelength
- High ambient light immunity up to 50,000 lx
- IP67 rated enclosure for dust and water protection
- Push-pull PNP/NPN switching output with short-circuit protection
- Supports IO-Link and CANopen communication protocols
- Operating temperature range from -10 °C to +55 °C
- LED risk group 2 compliant with IEC 62471
Professional Installation Requirements
- Installation by a qualified electrician or trained technician is recommended to ensure proper electrical connections and compliance with safety standards.
Applications
- Industrial automation for barcode reading
- Object detection in manufacturing lines
- Quality control with UV light sensing
- Safety monitoring in automated systems
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
- Complies with AS/NZS 3820 – Essential Safety Requirements for Electrical Equipment
Environmental Benefits
- Low power consumption under 3 W reduces energy usage
- Durable zinc diecast housing extends product lifespan, reducing waste
- Complies with China-RoHS for hazardous substance restrictions
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy for details.
Available Now
The SICK OLS20-UB1114140 UV LED Optical Sensor is available for immediate purchase, ideal for industrial automation and barcode reading applications.
