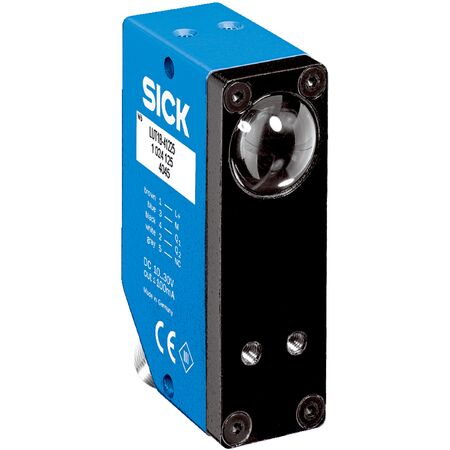

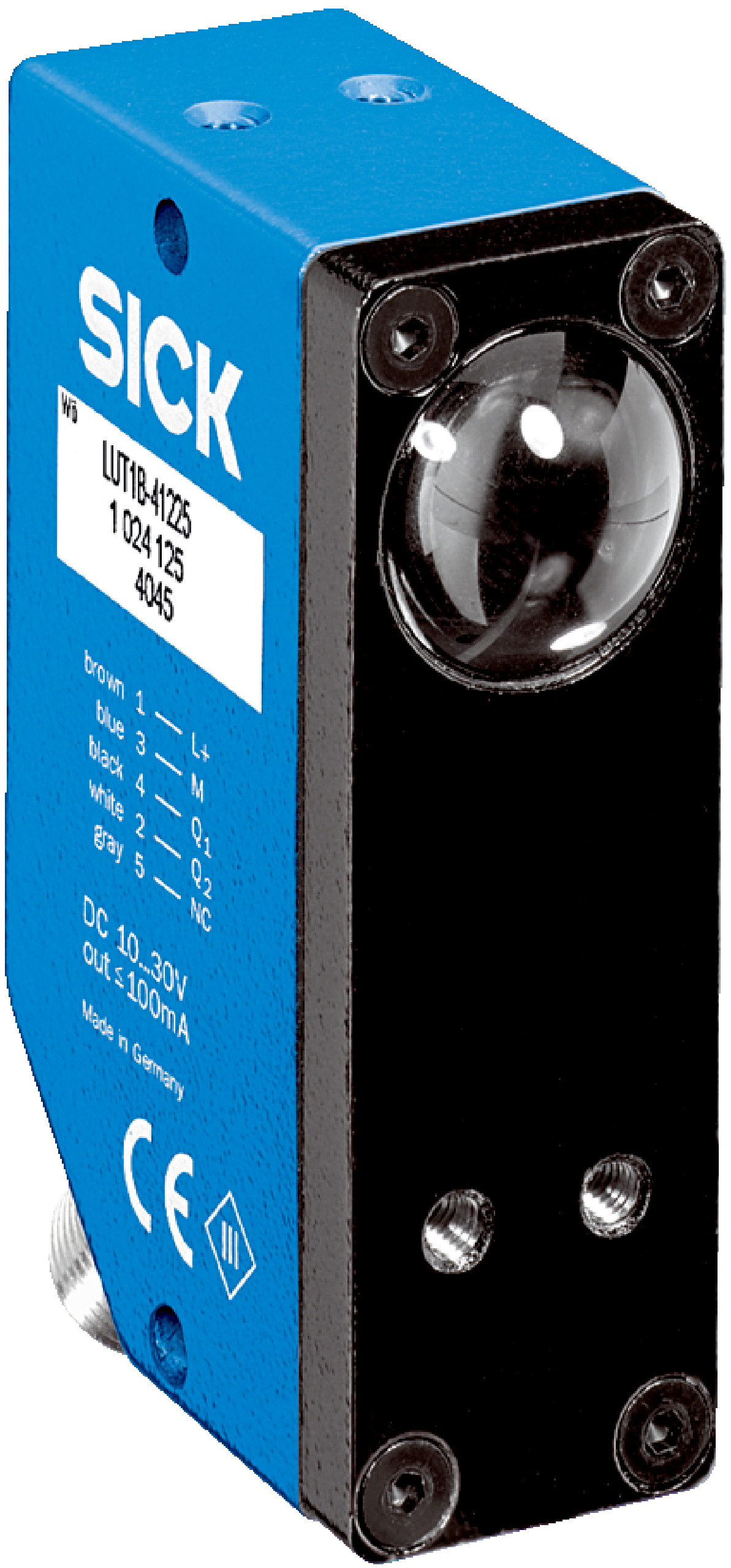

UV LED Sensor | 150 mm Sensing Distance | PNP Output | IP67 Rated | by SICK
The UV LED Sensor is designed for precise object detection with a sensing distance of up to 150 mm and a UV LED light source at 375 nm wavelength. Ideal for industrial automation and quality control applications, this sensor features a PNP switching output and an IP67 enclosure rating, ensuring durability and reliability in harsh environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: UV LED Sensor | 150 mm Sensing Distance | PNP Output | IP67 Rated | by SICK
Brand: SICK
SKU: 1024128
Alternatively Known As: UV LED Sensor, PNP UV Sensor, SICK UV Sensor, Industrial UV Light Sensor
Technical Specifications
- Sensing distance: ≤ 150 mm
- Working range: 60 mm to 160 mm
- Light source: UV LED, 375 nm wavelength
- Light spot size: 12 mm x 12 mm
- Receiving filters: ≤ 420 nm
- Receiving range: 450 nm to 750 nm
- Supply voltage: 10 V DC to 30 V DC
- Ripple: < 5 V pp
- Current consumption: < 40 mA
- Switching frequency: 6 kHz
- Response time: 85 µs
- Switching output: PNP, max 200 mA
- Connection type: Male connector M12, 5-pin
- Protection class: III
- Enclosure rating: IP67
- Housing material: Zinc diecast
- Dimensions (H x L x W): 70mm x 60mm x 23mm
- Weight: 0.24 kg
Key Features
- Sensing distance up to 150 mm
- UV LED light source with 375 nm wavelength
- Light emission from long side with 12 mm x 12 mm spot size
- Double teach-in button for easy adjustment
- PNP switching output with 200 mA max current
- Protection class III with IP67 enclosure rating
- Reverse polarity and short-circuit protected
- Male connector M12, 5-pin connection
Professional Installation Requirements
- Installation should be performed by a qualified technician or electrician to ensure proper connection and compliance with safety standards.
Applications
- Industrial automation for object detection
- UV light sensing in manufacturing processes
- Quality control and inspection systems
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
- Complies with AS/NZS 3820 – Essential Safety Requirements for Electrical Equipment
Environmental Benefits
- Low power consumption with efficient LED technology
- Durable zinc diecast housing reduces replacement frequency
- IP67 rating ensures long service life in harsh environments
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy.
Available Now
The SICK LUT1U-11331 UV LED Sensor is available for immediate purchase, ideal for industrial automation and UV sensing applications.
