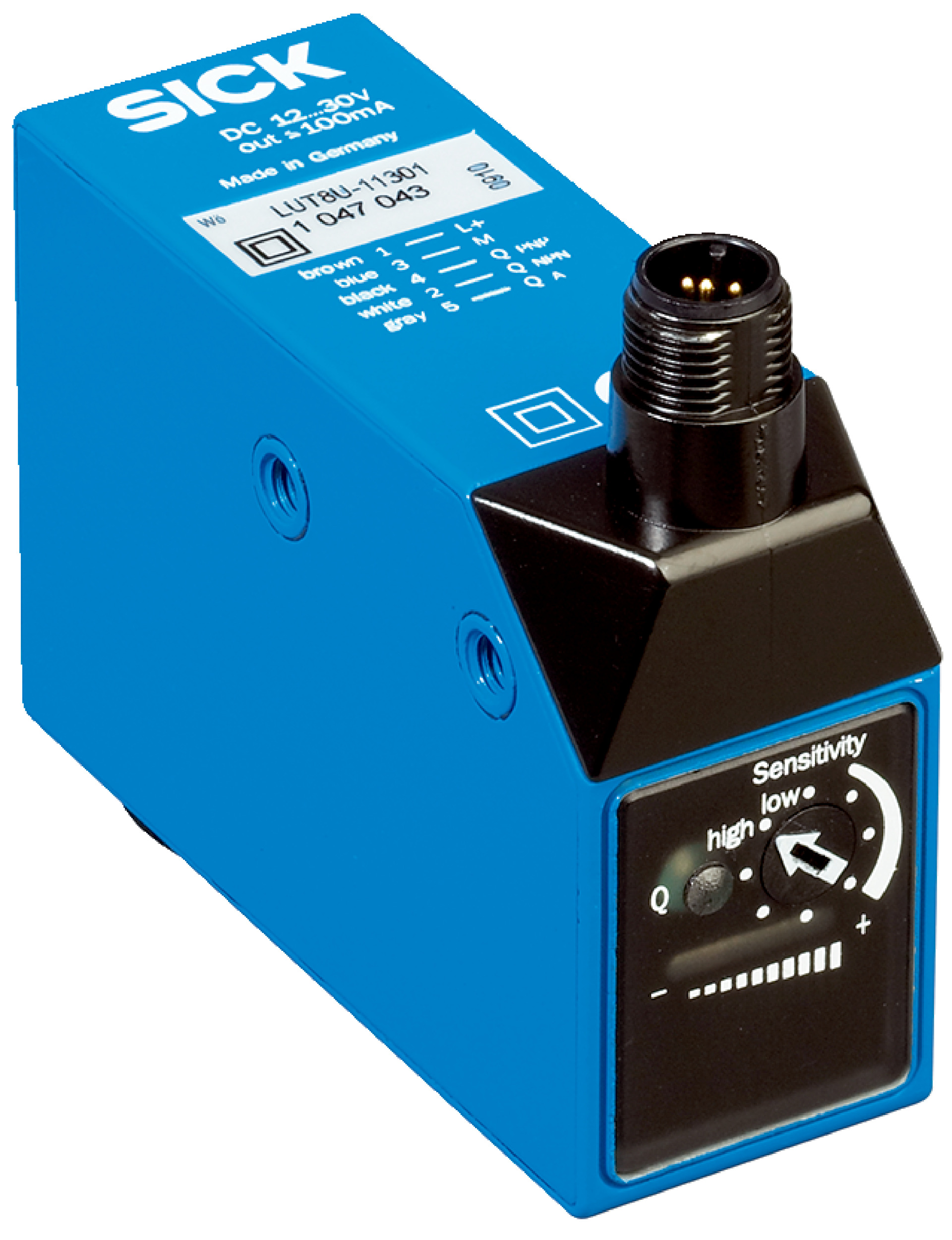

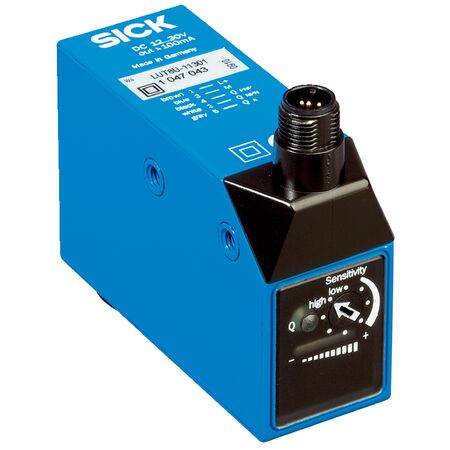

UV LED Sensor LUT8U-11101 | 375 nm Wavelength | IP67 Rated | PNP/NPN Output | by SICK
The UV LED Sensor LUT8U-11101 is designed for precise UV light sensing with a 375 nm wavelength and a sensing distance of up to 10 mm. Ideal for industrial automation and quality control applications, this sensor features a durable IP67 rated enclosure and manual rotary switch adjustment for easy configuration. With low power consumption and robust protection against short-circuits, it ensures reliable performance in demanding environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: UV LED Sensor LUT8U-11101 | 375 nm Wavelength | IP67 Rated | PNP/NPN Output | by SICK
Brand: SICK
SKU: 1046711
Alternatively Known As: UV LED Sensor, UV Light Sensor, SICK LUT8U Sensor, UV Proximity Sensor
Technical Specifications
- Sensing distance: ≤ 10 mm
- Working range: 0 mm to 20 mm
- Light source: LED, UV at 375 nm wavelength
- Light emission: Long side, vertical light spot direction
- Light spot size: 2 mm x 6 mm
- Receiving filters: ≤ 420 nm
- Receiving range: 450 nm to 750 nm
- Adjustment: Manual rotary switch
- Output function: Light switching
- Supply voltage: 12 V DC to 30 V DC
- Ripple: < 5 V pp
- Current consumption: < 100 mA
- Switching frequency: 2.5 kHz
- Response time: 200 µs
- Switching output: PNP, NPN
- Output current max: 100 mA
- Connection type: Male connector M12, 5-pin
- Protection class: II
- Circuit protection: Reverse polarity, short-circuit, interference pulse suppression
- Enclosure rating: IP67
- Housing material: Zinc diecast
- Operating temperature: -10°C to +55°C
- Storage temperature: -25°C to +75°C
- Shock load: According to IEC 60068
- Dimensions (H x L x W): 53mm x 80mm x 30.4mm
- Weight: 0.4 kg
Key Features
- Sensing distance up to 10 mm
- Manual rotary switch adjustment
- Light switching output with PNP and NPN options
- LED UV light source with 375 nm wavelength
- IP67 rated enclosure for dust and water protection
- Zinc diecast housing for durability
- Short-circuit and reverse polarity protected
- Operating temperature range from -10°C to +55°C
Professional Installation Requirements
- Installation should be performed by a qualified technician or electrician to ensure proper connection and compliance with electrical safety standards.
Applications
- Industrial automation for object detection
- UV light sensing in manufacturing processes
- Quality control and inspection systems
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Low power consumption with efficient LED UV light source
- Durable housing reduces need for frequent replacements
- IP67 rating ensures long service life in harsh environments
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy.
Available Now
The SICK LUT8U-11101 UV LED Sensor is available for immediate purchase, ideal for industrial automation and UV light sensing applications.
