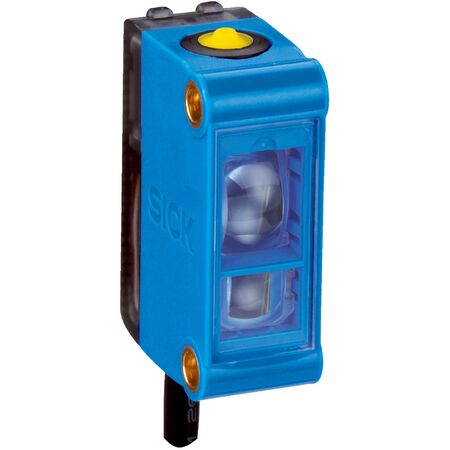

UV LED Sensor | Compact Design | 12.5 mm Sensing Distance | IP67 Rated | by SICK
The UV LED Sensor is designed for precise object detection with a sensing distance of up to 12.5 mm and a 370 nm LED light source. Ideal for industrial automation and quality control applications, this compact sensor features an IP67 rated enclosure for dust and water protection, ensuring reliable performance in harsh environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Sensing distance: ≤ 12.5 mm
- Working range: 8 mm to 20 mm
- Light source: LED, UV at 370 nm wavelength
- Light emission: Long side, vertical direction
- Light spot size: 2 mm x 2.5 mm
- Receiving range: 450 nm to 750 nm
- Supply voltage: 12 V DC to 24 V DC
- Current consumption: ≤ 50 mA
- Switching frequency: 6 kHz
- Response time: 80 µs
- Output function: Light/dark switching, NPN output
- Output current max: < 100 mA
- Connection: Cable with M12 male connector, 4-pin, 0.2 m
- Protection class: III
- Enclosure rating: IP67
- Housing material: ABS
- Operating temperature: -10 °C to +55 °C
- Storage temperature: -20 °C to +75 °C
- Dimensions (H x L x W): 31.5mm x 21mm x 12mm
- Weight: 0.1 kg
Key Features
- Small housing design for compact installation
- Sensing distance up to 12.5 mm
- LED UV light source with 370 nm wavelength
- Light/dark switching output with NPN transistor
- IP67 rated enclosure for dust and water protection
- Cable with M12 male connector, 4-pin, 0.2 m length
- Teach-in button with 2-point teach-in static/dynamic modes
- High switching frequency of 6 kHz and fast response time of 80 µs
- Reverse polarity and short-circuit protected output
Professional Installation Requirements
- Installation by qualified personnel is recommended to ensure proper electrical connections and sensor alignment.
Applications
- Industrial automation for object detection
- UV light sensing in manufacturing processes
- Quality control and inspection systems
- Material sorting and identification
Standards & Compliance
- Complies with AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Low power consumption with efficient LED UV light source
- Durable ABS housing reduces need for frequent replacements
- IP67 rating ensures long service life in harsh environments, reducing waste
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy.
Available Now
The SICK LUTM-UN81162P UV LED Sensor is available for immediate purchase, ideal for industrial automation and quality control applications.
