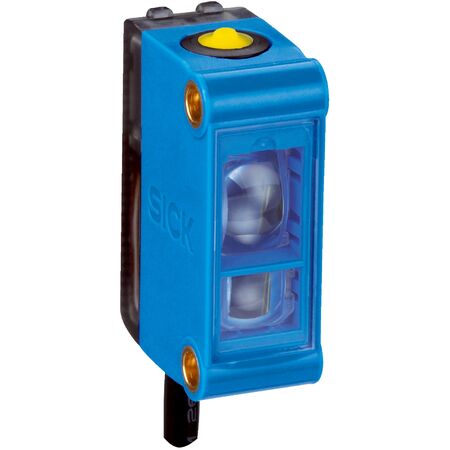

UV LED Sensor | Compact Design | 370 nm Wavelength | IP67 Rated | by SICK
The UV LED Sensor is designed for precise object detection in industrial automation, featuring a compact housing and a 370 nm wavelength light source. With a sensing distance of up to 12.5 mm and a high switching frequency of 6 kHz, it’s perfect for quality control and inspection systems, ensuring reliable performance in demanding environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Sensing distance: ≤ 12.5 mm
- Working range: 8 mm to 20 mm
- Light source: UV LED, 370 nm wavelength
- Light emission: Long side, vertical direction
- Light spot size: 2 mm x 2.5 mm
- Receiving range: 450 nm to 750 nm
- Supply voltage: 12 V DC to 24 V DC
- Current consumption: ≤ 50 mA
- Switching frequency: 6 kHz
- Response time: 80 µs
- Output function: Light/dark switching, PNP output
- Output current max: < 100 mA
- Connection: Cable with M12 male connector, 4-pin, 0.2 m
- Protection class: III
- Enclosure rating: IP67
- Housing material: ABS
- Circuit protection: Reverse polarity, short-circuit, interference pulse suppression
- Dimensions (H x L x W): 31.5mm x 21mm x 12mm
- Weight: 0.1 kg
Key Features
- Small housing design for compact installation
- UV LED light source with 370 nm wavelength
- Sensing distance up to 12.5 mm
- Light/dark switching output with PNP transistor
- Teach-in button for easy adjustment with 2-point teach-in mode
- High switching frequency of 6 kHz and fast response time of 80 µs
- IP67 rated enclosure for dust and water protection
- Reverse polarity and short-circuit protected output
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with electrical and sensor systems to ensure proper setup and safety compliance.
Applications
- Industrial automation for object detection
- UV light sensing in manufacturing processes
- Quality control and inspection systems
- Material sorting and identification
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Low power consumption with efficient LED technology
- Durable ABS housing reduces need for frequent replacements
- IP67 rating ensures long service life in harsh environments
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy.
Available Now
The SICK LUTM-UP81162P UV LED Sensor is available for immediate purchase, ideal for industrial automation and quality control applications.
