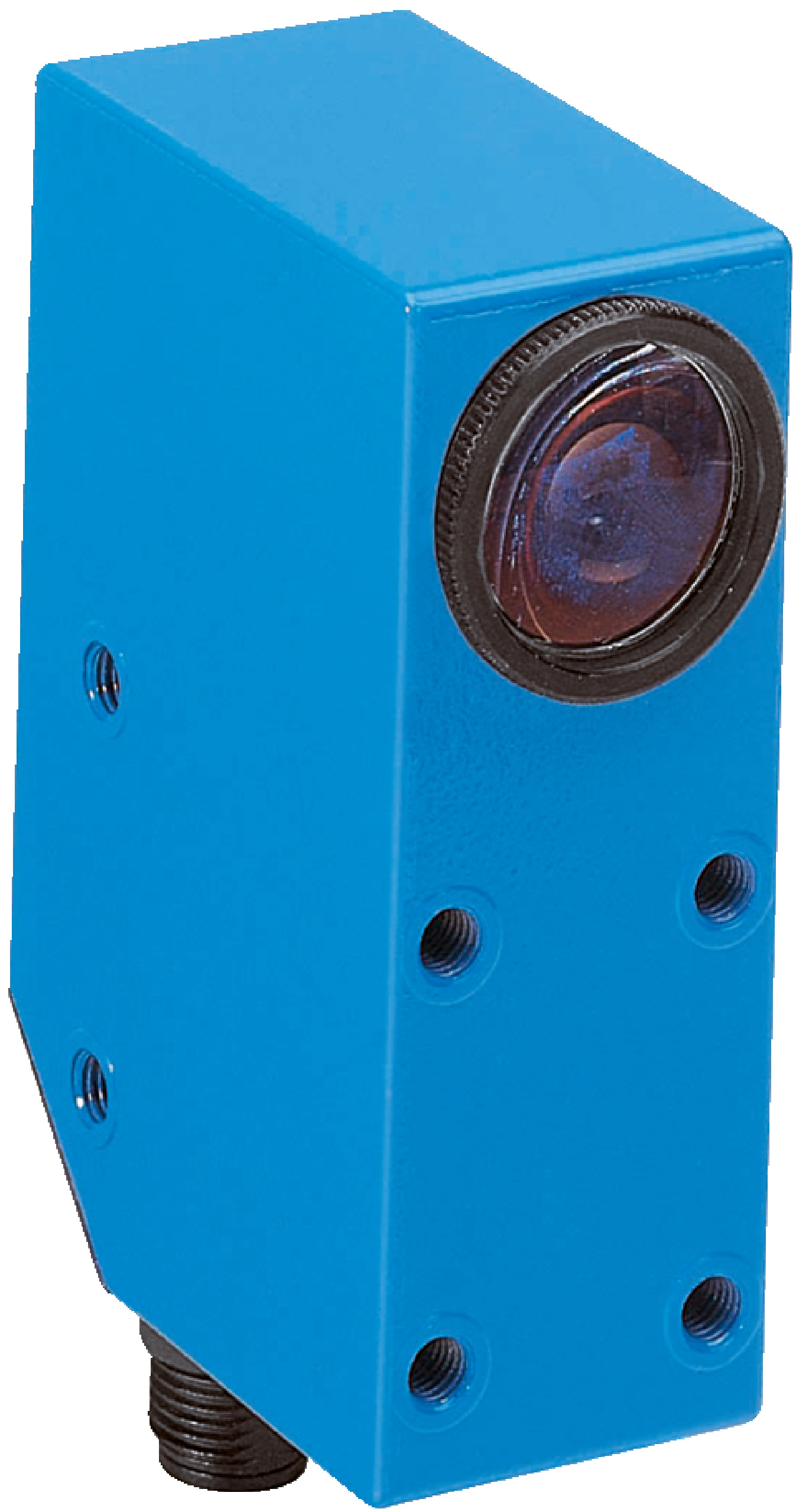

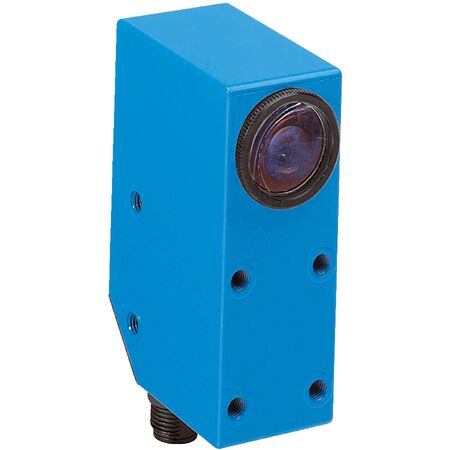

UV LED Sensor LUT3-610 | 10 mm Sensing Distance | IP67 Rated | by SICK
The LUT3-610 UV LED Sensor is designed for precise object detection within a 10 mm sensing distance, making it ideal for industrial automation and quality control applications. Featuring a UV light source at 375 nm wavelength and a compact IP67-rated housing, this sensor ensures reliable performance in demanding environments. With adjustable sensitivity and fast response times, it’s perfect for machine safety and process monitoring.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: UV LED Sensor LUT3-610 | 10 mm Sensing Distance | IP67 Rated | by SICK
Brand: SICK
SKU: 1015396
Alternatively Known As: UV LED Sensor, UV Proximity Sensor, Light Switching Sensor, SICK LUT3-610 Sensor
Technical Specifications
- Sensing distance: ≤ 10 mm
- Working range: 0 mm to 15 mm
- Light source: LED, UV at 375 nm wavelength
- Light emission: Long side with 2 mm x 6 mm spot size
- Receiving filters: ≤ 420 nm
- Receiving range: 450 nm to 750 nm
- Adjustment: Potentiometer
- Output function: Light switching
- Supply voltage: 12 V DC to 30 V DC
- Ripple: < 2 V pp
- Current consumption: < 60 mA
- Switching frequency: 1.5 kHz
- Response time: 350 µs
- Switching output: PNP, NPN
- Output current max: 100 mA
- Connection type: Male connector M12, 4-pin
- Protection class: II
- Circuit protection: Reverse polarity, short-circuit, interference pulse suppression
- Enclosure rating: IP67
- Housing material: Zinc diecast
- Operating temperature: -10 °C to +55 °C
- Storage temperature: -25 °C to +75 °C
- Dimensions (H x L x W): 53mm x 80mm x 30.4mm
- Weight: 0.4 kg
Key Features
- Sensing distance up to 10 mm
- UV LED light source with 375 nm wavelength
- Light switching output with PNP and NPN switching modes
- Compact zinc diecast housing with IP67 protection rating
- Adjustable potentiometer for sensitivity tuning
- High switching frequency of 1.5 kHz and fast response time of 350 µs
- Reverse polarity and short-circuit protected outputs
Professional Installation Requirements
- Installation by a qualified electrician or technician is recommended to ensure proper connection and compliance with electrical safety standards.
Applications
- Industrial automation for object detection within 10 mm sensing distance
- Quality control and inspection using UV light source
- Machine safety and process monitoring in manufacturing environments
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Low power consumption with efficient LED light source
- Durable housing reduces replacement frequency and waste
- Complies with China-RoHS for hazardous substance restrictions
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for specific warranty terms.
Available Now
The SICK LUT3-610 UV LED Sensor is available for immediate purchase, ideal for industrial automation and quality control applications.
