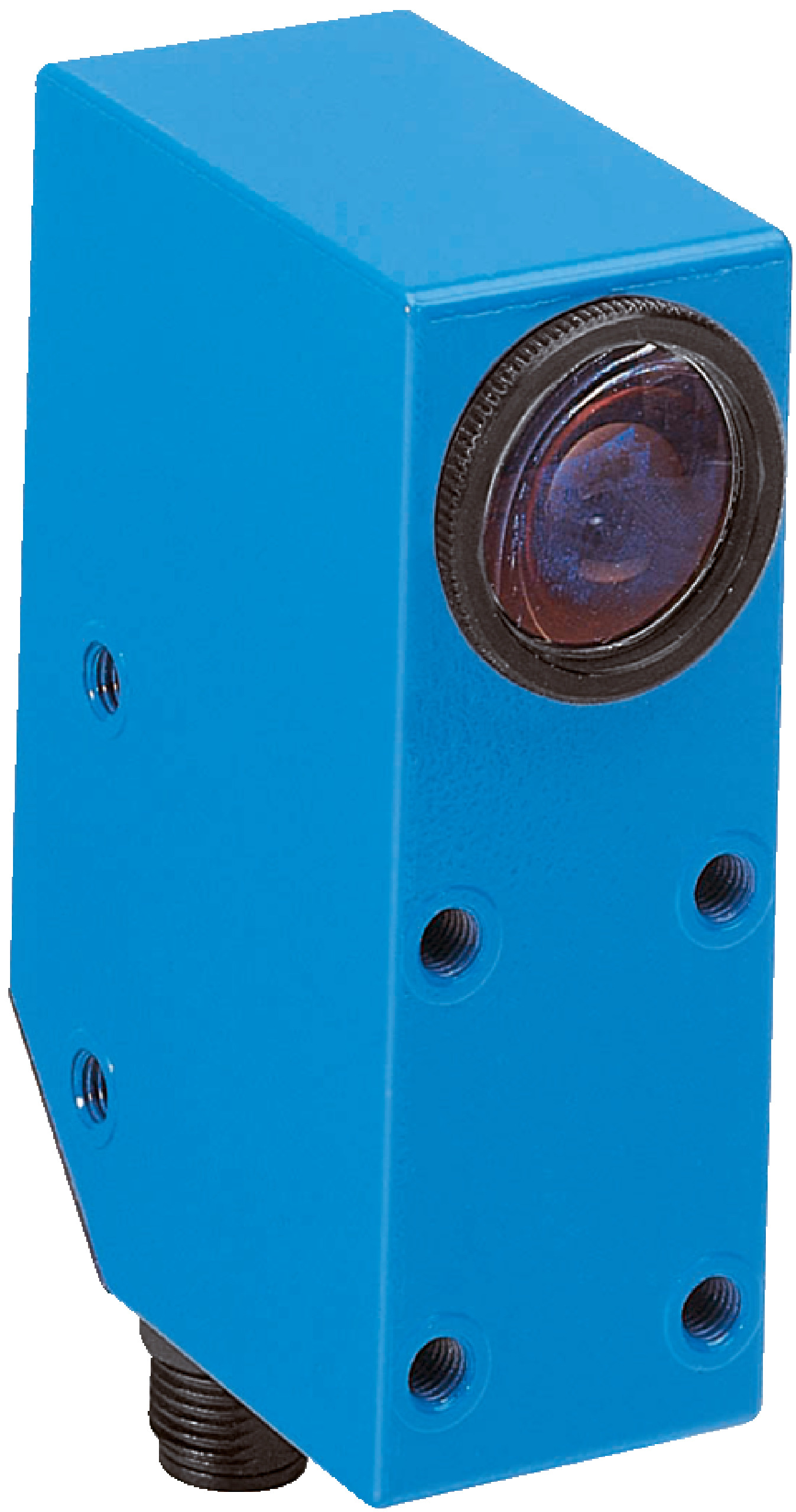

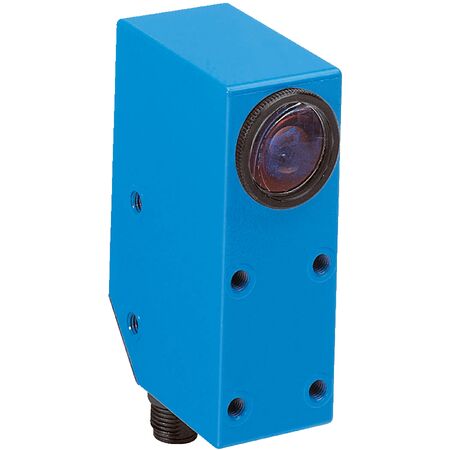

UV LED Sensor LUT3-620 | 375 nm Wavelength | IP67 Rated | by SICK
The UV LED Sensor LUT3-620 is designed for precise UV light sensing in industrial automation, featuring a 375 nm wavelength and a sensing distance of up to 20 mm. With its robust IP67 enclosure and PNP/NPN switching outputs, this sensor is perfect for quality control and inspection systems, ensuring reliable performance in demanding environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: UV LED Sensor LUT3-620 | 375 nm Wavelength | IP67 Rated | by SICK
Brand: SICK
SKU: 1015397
Alternatively Known As: UV LED Sensor, UV Light Sensor, SICK LUT3 Sensor, Industrial UV Sensor
Technical Specifications
- Sensing distance: ≤ 20 mm
- Working range: 10 mm to 35 mm
- Light source: LED, UV at 375 nm wavelength
- Light spot size: 3 mm x 9 mm
- Light spot direction: Vertical
- Receiving filters: ≤ 420 nm
- Receiving range: 450 nm to 750 nm
- Supply voltage: 12 V DC to 30 V DC
- Ripple: < 2 V pp
- Current consumption: < 60 mA
- Switching frequency: 1.5 kHz
- Response time: 350 µs
- Switching output: PNP, NPN
- Output current max: 100 mA
- Connection type: Male connector M12, 4-pin
- Protection class: II
- Circuit protection: Reverse polarity, short-circuit, interference pulse suppression
- Enclosure rating: IP67
- Housing material: Zinc diecast
- Operating temperature: -10 °C to +55 °C
- Storage temperature: -25 °C to +75 °C
- Dimensions (H x L x W): 53mm x 80mm x 30.4mm
- Weight: 0.4 kg
Key Features
- Sensing distance up to 20 mm
- UV LED light source with 375 nm wavelength
- Light emission from the long side with a 3 mm x 9 mm light spot
- Potentiometer adjustment for sensitivity
- PNP and NPN switching outputs with light switching mode
- Protection class II with IP67 enclosure rating
- Reverse polarity and short-circuit protected outputs
- Male connector M12, 4-pin connection
Professional Installation Requirements
- Installation should be performed by a qualified technician or electrician to ensure proper connection and compliance with safety standards.
Applications
- Industrial automation for object detection
- UV light sensing in manufacturing processes
- Quality control and inspection systems
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
- Complies with AS/NZS 3820 – Essential Safety Requirements for Electrical Equipment
Environmental Benefits
- Low power consumption with efficient LED technology
- Durable zinc diecast housing reduces waste through extended product life
- IP67 rating ensures protection against dust and water, minimizing environmental damage
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy.
Available Now
The SICK LUT3-620 UV LED Sensor is available for immediate purchase, ideal for industrial automation and UV light sensing applications.
