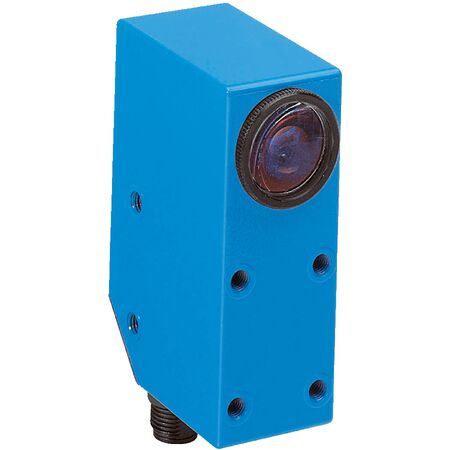

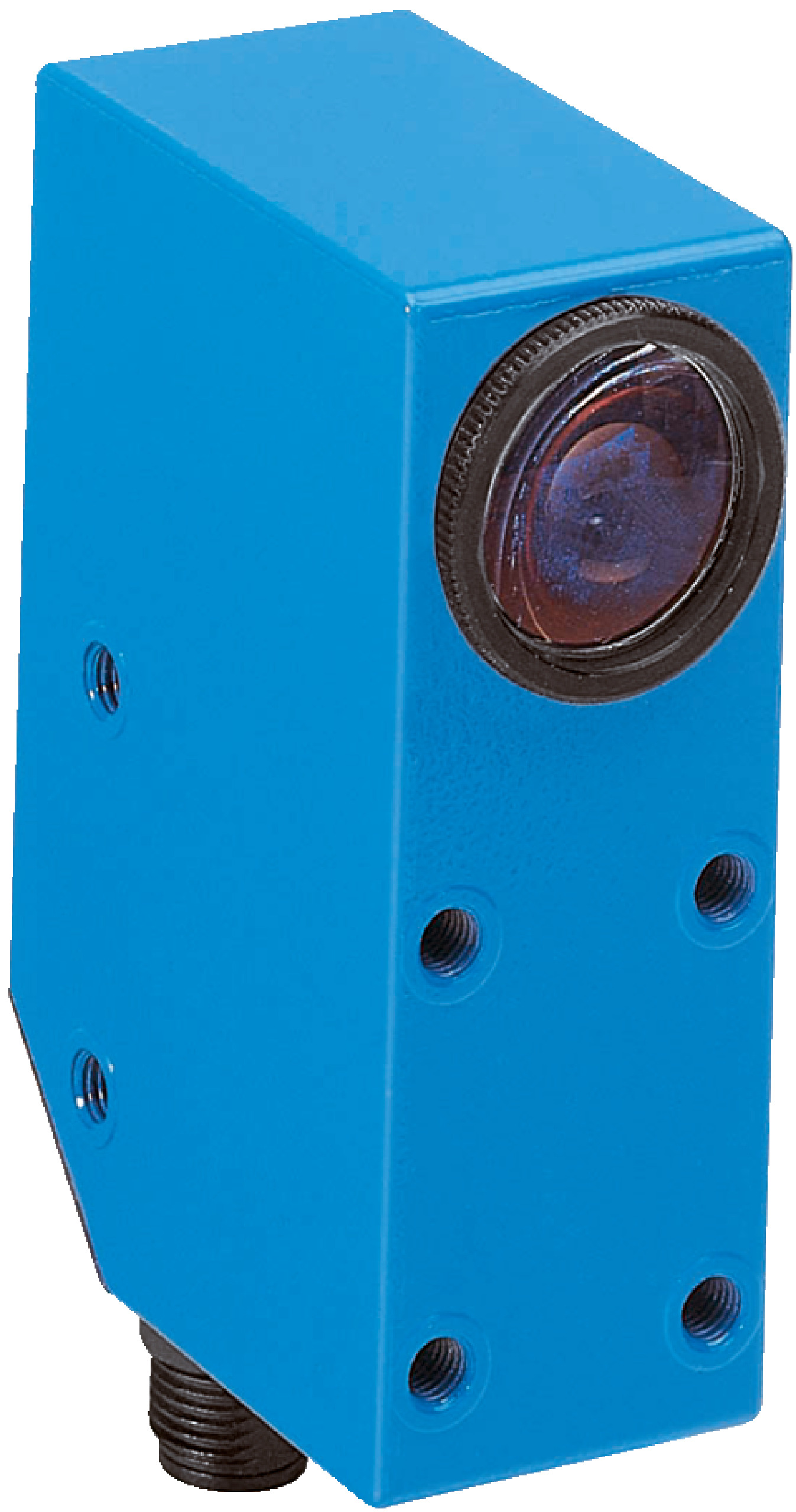

UV LED Sensor LUT3-650 | 375 nm Wavelength | IP67 Rated | by SICK
The LUT3-650 UV LED Sensor is designed for industrial automation, featuring a 375 nm wavelength UV LED light source and an IP67 enclosure rating. With a sensing distance of up to 50 mm and PNP/NPN switching outputs, it's perfect for quality control, material inspection, and machine safety applications. Built with durable zinc diecast housing, this sensor ensures long operational life and low power consumption.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: UV LED Sensor LUT3-650 | 375 nm Wavelength | IP67 Rated | by SICK
Brand: SICK
SKU: 1015398
Alternatively Known As: UV LED Sensor, Light Switching Sensor, SICK LUT3 Sensor, Industrial UV Sensor
Technical Specifications
- Supply voltage: 12 V DC to 30 V DC
- Current consumption: less than 60 mA
- Switching frequency: 1.5 kHz
- Response time: 350 µs
- Output current max: 100 mA
- Light source: UV LED at 375 nm wavelength
- Light spot size: 5 mm x 15 mm
- Receiving filters: ≤ 420 nm
- Receiving range: 450 nm to 750 nm
- Connection type: Male connector M12, 4-pin
- Enclosure rating: IP67
- Housing material: Zinc diecast
- Protection: Reverse polarity, short-circuit, interference pulse suppression
- Dimensions (H x L x W): 53mm x 80mm x 30.4mm
- Weight: 0.4 kg
Key Features
- Sensing distance up to 50 mm
- UV LED light source with 375 nm wavelength
- Light emission from the long side with a 5 mm x 15 mm spot size
- Potentiometer adjustment for sensitivity
- PNP and NPN switching outputs with light switching mode
- Protection class II with IP67 enclosure rating
- Reverse polarity and short-circuit protected outputs
- Male connector M12, 4-pin connection
Professional Installation Requirements
- Installation by a qualified electrician or technician is recommended to ensure proper connection and compliance with safety standards.
Applications
- Industrial automation for object detection
- Quality control with UV light sensing
- Material inspection and sorting
- Machine safety and monitoring
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
- Complies with AS/NZS 3820 – Essential Safety Requirements for Electrical Equipment
Environmental Benefits
- Low power consumption with efficient LED technology
- Durable zinc diecast housing reduces replacement frequency
- Long operational life minimizes electronic waste
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for specific warranty terms.
Available Now
The SICK LUT3-650 UV LED Sensor is available for immediate purchase, ideal for industrial automation and quality control applications.
