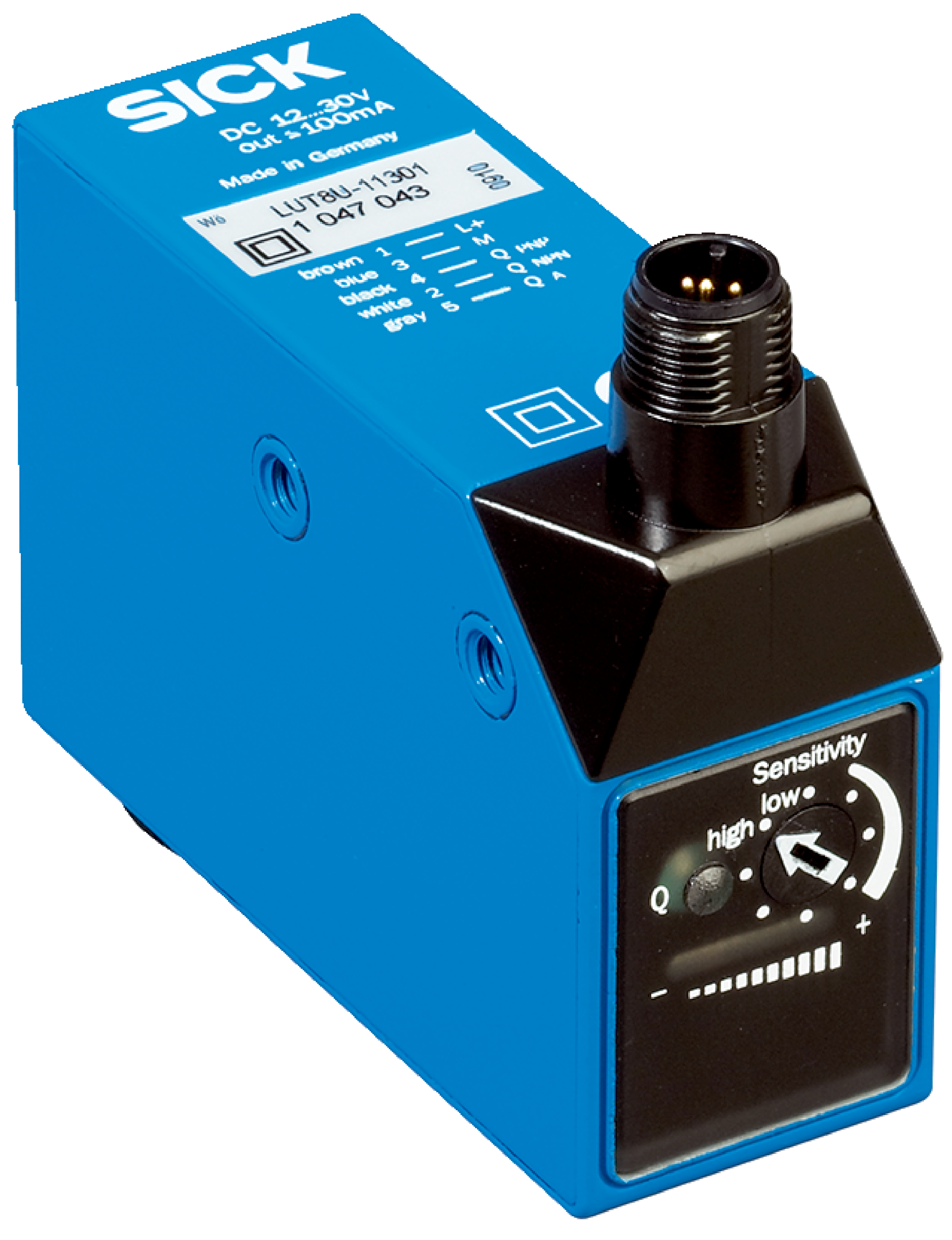

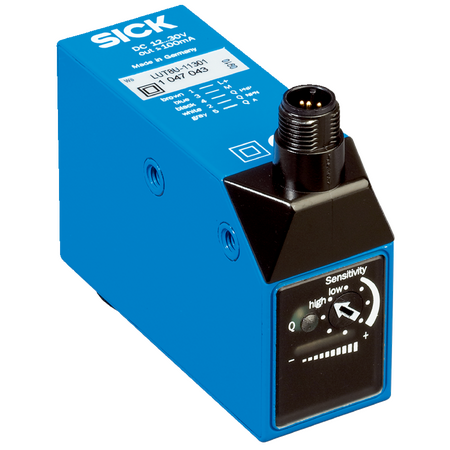

UV LED Sensor LUT8U-11311 | 375 nm Wavelength | IP67 Rated | by SICK
The UV LED Sensor LUT8U-11311 features a 375 nm ultraviolet light source, perfect for industrial automation and quality control applications. With a robust IP67 enclosure rating and a long sensing distance of up to 50 mm, this sensor ensures reliable performance in various environments. Designed for durability and low power consumption, it’s an essential tool for effective object detection and UV light sensing.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: UV LED Sensor, Ultraviolet Light Sensor, SICK LUT8U Sensor
Technical Specifications
- Light source: LED, Ultraviolet light at 375 nm wavelength
- Light emission: Long side with 5 mm x 15 mm spot size
- Working range: 20 mm to 70 mm
- Sensing distance: up to 50 mm
- Supply voltage: 12 V DC to 30 V DC
- Ripple: less than 5 V pp
- Current consumption: less than 100 mA
- Switching frequency: 2.5 kHz
- Response time: 200 µs
- Switching output: PNP and NPN with light switching mode
- Output current max: 100 mA
- Analog output: 0 mA to 13 mA
- Connection type: Plug, M12, 5-pin
- Protection class: II
- Circuit protection: Reverse polarity, short-circuit, interference pulse suppression
- Enclosure rating: IP67
- Operating temperature: -10 °C to +55 °C
- Storage temperature: -25 °C to +75 °C
- Dimensions (H x L x W): 53mm x 80mm x 30.4mm
- Weight: 0.4 kg
Key Features
- Large zinc diecast housing for durability
- LED ultraviolet light source with 375 nm wavelength
- Manual rotary switch adjustment
- Light switching output function with PNP and NPN switching modes
- High protection class II with IP67 enclosure rating
- Shock load resistance according to IEC 60068
Professional Installation Requirements
- Installation by a qualified technician or electrician is recommended to ensure proper connection and compliance with electrical standards.
Applications
- Industrial automation for object detection
- Quality control in manufacturing
- UV light sensing in various environments
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Low power consumption with less than 100 mA current draw
- Durable housing reduces replacement frequency and waste
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK's official warranty policy.
Available Now
The SICK LUT8U-11311 Ultraviolet LED Sensor is available for immediate purchase, ideal for industrial automation and quality control applications.
