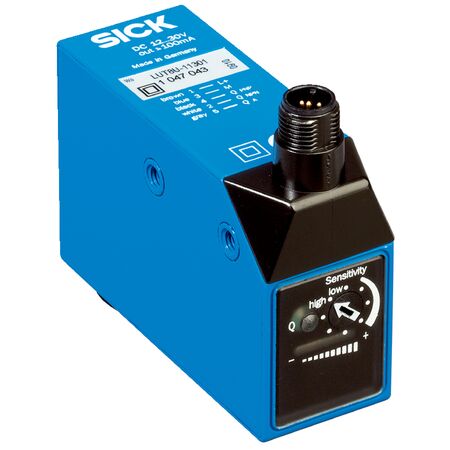

UV LED Sensor LUT8U-11321 | 375 nm Wavelength | IP67 Rated | PNP/NPN Output | by SICK
The UV LED Sensor LUT8U-11321 is designed for precise object detection in industrial automation, featuring a 375 nm wavelength LED light source and a sensing distance of up to 50 mm. With an IP67 enclosure rating and reverse polarity protection, this sensor ensures reliable performance in demanding environments, making it ideal for quality control in manufacturing and production lines.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: UV LED Sensor LUT8U-11321 | 375 nm Wavelength | IP67 Rated | PNP/NPN Output | by SICK
Brand: SICK
SKU: 1047046
Alternatively Known As: UV LED Sensor, UV Light Sensor, SICK UV Sensor, Industrial UV Sensor
Technical Specifications
- Sensing distance: ≤ 50 mm
- Working range: 20 mm to 70 mm
- Light source: LED, UV at 375 nm wavelength
- Light spot size: 5 mm x 15 mm
- Light spot direction: Vertical
- Receiving filters: ≤ 610 nm
- Receiving range: 610 nm to 750 nm
- Supply voltage: 12 V DC to 30 V DC
- Current consumption: < 100 mA
- Switching frequency: 2.5 kHz
- Response time: 200 µs
- Switching output: PNP, NPN
- Output current max: 100 mA
- Connection type: Male connector M12, 5-pin
- Protection class: II
- Enclosure rating: IP67
- Housing material: Zinc diecast
- Circuit protection: Reverse polarity, short-circuit, interference pulse suppression
- Dimensions (H x L x W): 53mm x 80mm x 30.4mm
- Weight: 0.4 kg
Key Features
- Sensing distance up to 50 mm
- Manual rotary switch adjustment
- LED UV light source with 375 nm wavelength
- Light emission from long side with vertical light spot direction
- Protection class II with IP67 enclosure rating
- Reverse polarity and short-circuit protected outputs
- Switching output options: PNP and NPN
- High switching frequency of 2.5 kHz and fast response time of 200 µs
Professional Installation Requirements
- Installation by a qualified electrician or technician is recommended to ensure proper connection and compliance with safety standards.
Applications
- Industrial automation for object detection
- Quality control in manufacturing
- UV light sensing in production lines
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Energy-efficient LED UV light source reduces power consumption
- Durable zinc diecast housing extends product lifespan, reducing waste
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for specific warranty terms.
Available Now
The SICK LUT8U-11321 UV LED Sensor is available for immediate purchase, ideal for industrial automation and quality control applications.
