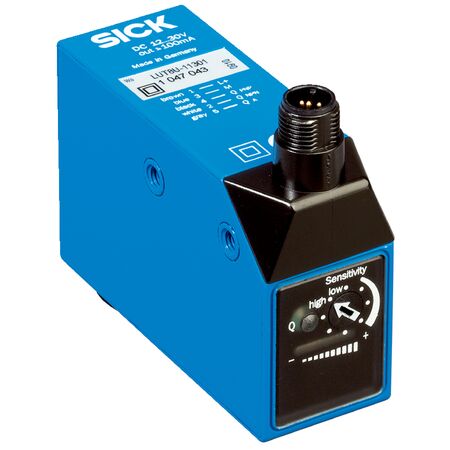

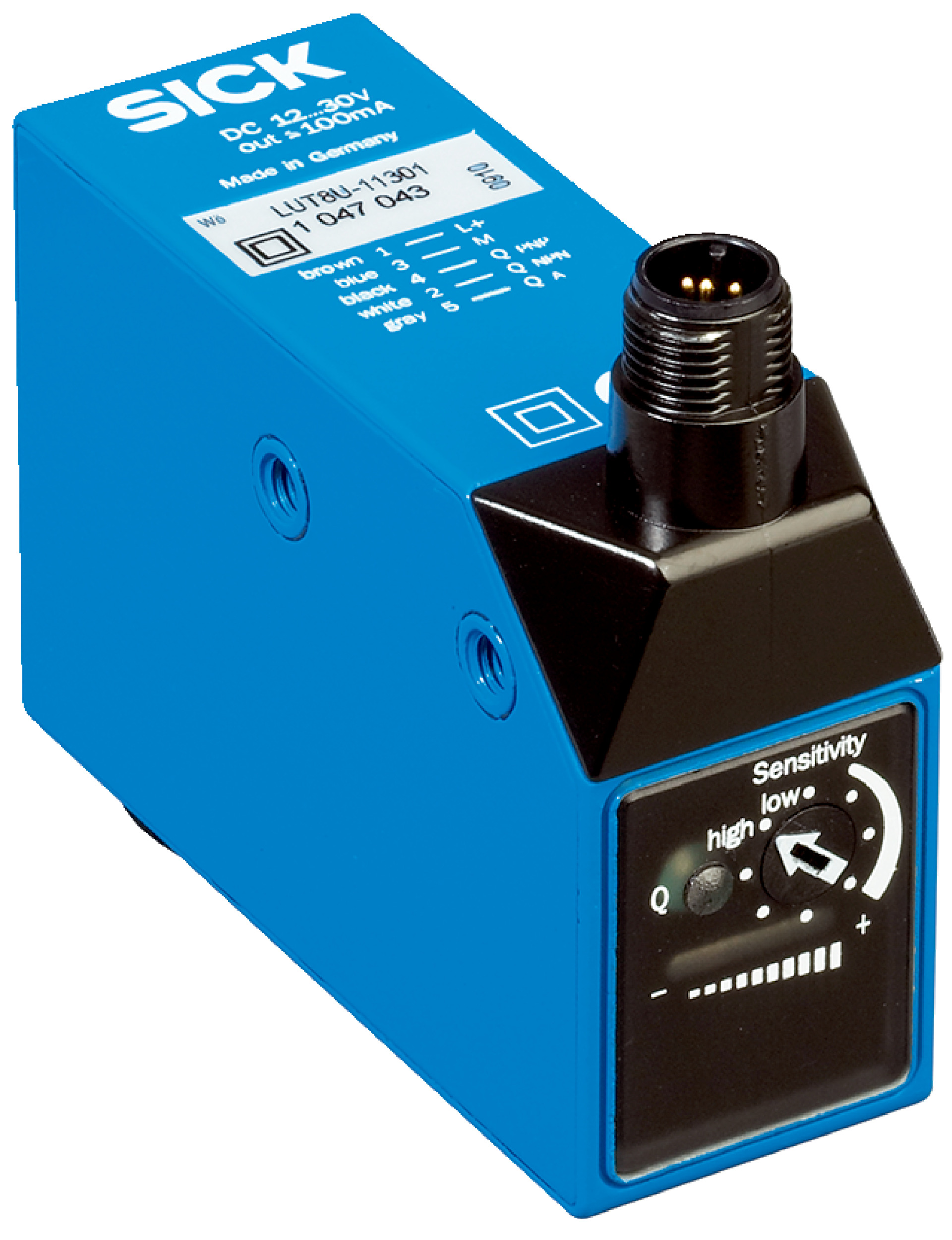

UV LED Sensor LUT8U-11331 | 375 nm Wavelength | IP67 Rated | by SICK
The UV LED Sensor LUT8U-11331 is designed for precise UV light sensing in industrial automation and quality control applications. With a sensing distance of up to 50 mm and a robust IP67 rated enclosure, this sensor ensures reliable performance in harsh environments. Its efficient LED light source operates at a wavelength of 375 nm, making it ideal for manufacturing processes and inspection systems.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: UV LED Sensor LUT8U-11331 | 375 nm Wavelength | IP67 Rated | by SICK
Brand: SICK
SKU: 1047047
Alternatively Known As: UV LED Sensor, UV Light Sensor, SICK UV Sensor, Industrial UV Sensor
Technical Specifications
- Sensing distance: ≤ 50 mm
- Working range: 20 mm to 70 mm
- Light source: LED, UV at 375 nm wavelength
- Light emission: Long side, vertical light spot direction
- Light spot size: 5 mm x 15 mm
- Receiving filters: ≤ 665 nm
- Receiving range: 670 nm to 750 nm
- Supply voltage: 12 V DC to 30 V DC
- Current consumption: < 100 mA
- Switching frequency: 2.5 kHz
- Response time: 200 µs
- Switching output: PNP, NPN
- Output current max: 100 mA
- Connection type: Male connector M12, 5-pin
- Protection class: II
- Circuit protection: Reverse polarity, short-circuit, interference pulse suppression
- Enclosure rating: IP67
- Housing material: Zinc diecast
- Operating temperature: -10 °C to +55 °C
- Storage temperature: -25 °C to +75 °C
- Dimensions (H x L x W): 53mm x 80mm x 30.4mm
- Weight: 0.4 kg
Key Features
- Sensing distance up to 50 mm
- Manual rotary switch adjustment
- LED UV light source with 375 nm wavelength
- Light switching output function
- IP67 rated enclosure for dust and water protection
- Zinc diecast housing for durability
- Switching frequency of 2.5 kHz and response time of 200 µs
- Protection against reverse polarity, short-circuit, and interference pulses
Professional Installation Requirements
- Installation should be performed by a qualified technician or electrician familiar with industrial sensor systems to ensure proper wiring and configuration.
Applications
- Industrial automation for object detection
- UV light sensing in manufacturing processes
- Quality control and inspection systems
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Low power consumption with efficient LED UV light source
- Durable housing reduces need for frequent replacements
- IP67 rating ensures long service life in harsh environments
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy.
Available Now
The SICK LUT8U-11331 UV LED Sensor is available for immediate purchase, ideal for industrial automation and quality control applications.
