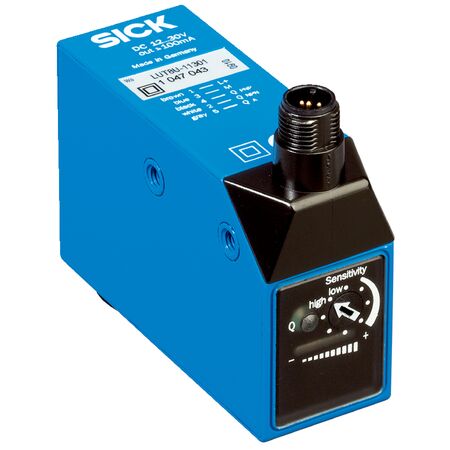

UV LED Sensor LUT8U-11401 | 375 nm Wavelength | IP67 Rated | PNP & NPN Output | by SICK
The UV LED Sensor LUT8U-11401 is designed for precise UV light sensing in industrial automation and quality control applications. With a 375 nm wavelength and an IP67 rated enclosure, it ensures reliable performance in various environments. Featuring a sensing distance of up to 90 mm and manual rotary switch adjustment, this sensor is perfect for detecting objects and monitoring UV light levels efficiently.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: UV LED Sensor LUT8U-11401 | 375 nm Wavelength | IP67 Rated | PNP & NPN Output | by SICK
Brand: SICK
SKU: 1047044
Alternatively Known As: UV LED Sensor, UV Light Sensor, SICK LUT8U Sensor, Industrial UV Sensor
Technical Specifications
- Supply voltage: 12 V DC to 30 V DC
- Ripple: less than 5 V pp
- Current consumption: less than 100 mA
- Switching frequency: 2.5 kHz
- Response time: 200 µs
- Switching output: PNP and NPN
- Output current max: 100 mA
- Connection type: Male M12, 5-pin connector
- Protection class: II
- Circuit protection: Reverse polarity, short-circuit, interference pulse suppression
- Enclosure rating: IP67
- Housing material: Zinc diecast
- Light source: LED UV at 375 nm wavelength
- Light spot size: 12 mm x 12 mm
- Working range: 30 mm to 110 mm
- Receiving filters: ≤ 420 nm
- Receiving range: 450 nm to 750 nm
- Dimensions (H x L x W): 53mm x 80mm x 30.4mm
- Weight: 0.4 kg
Key Features
- Sensing distance up to 90 mm
- Manual rotary switch adjustment
- LED UV light source with 375 nm wavelength
- Light emission from long side with 12 mm x 12 mm spot size
- IP67 rated enclosure for dust and water protection
- Switching output options: PNP and NPN
- Short-circuit and reverse polarity protected
- Operating temperature range from -10°C to +55°C
Professional Installation Requirements
- Installation by qualified personnel is recommended to ensure correct electrical connections and compliance with safety standards.
Applications
- Industrial automation for object detection
- Quality control in manufacturing
- UV light sensing in various environments
Standards & Compliance
- Complies with AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Low power consumption with less than 100 mA current draw
- Durable zinc diecast housing extends product life reducing waste
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for specific warranty terms.
Available Now
The SICK LUT8U-11401 UV LED Sensor is available for immediate purchase, ideal for industrial automation and quality control applications.
