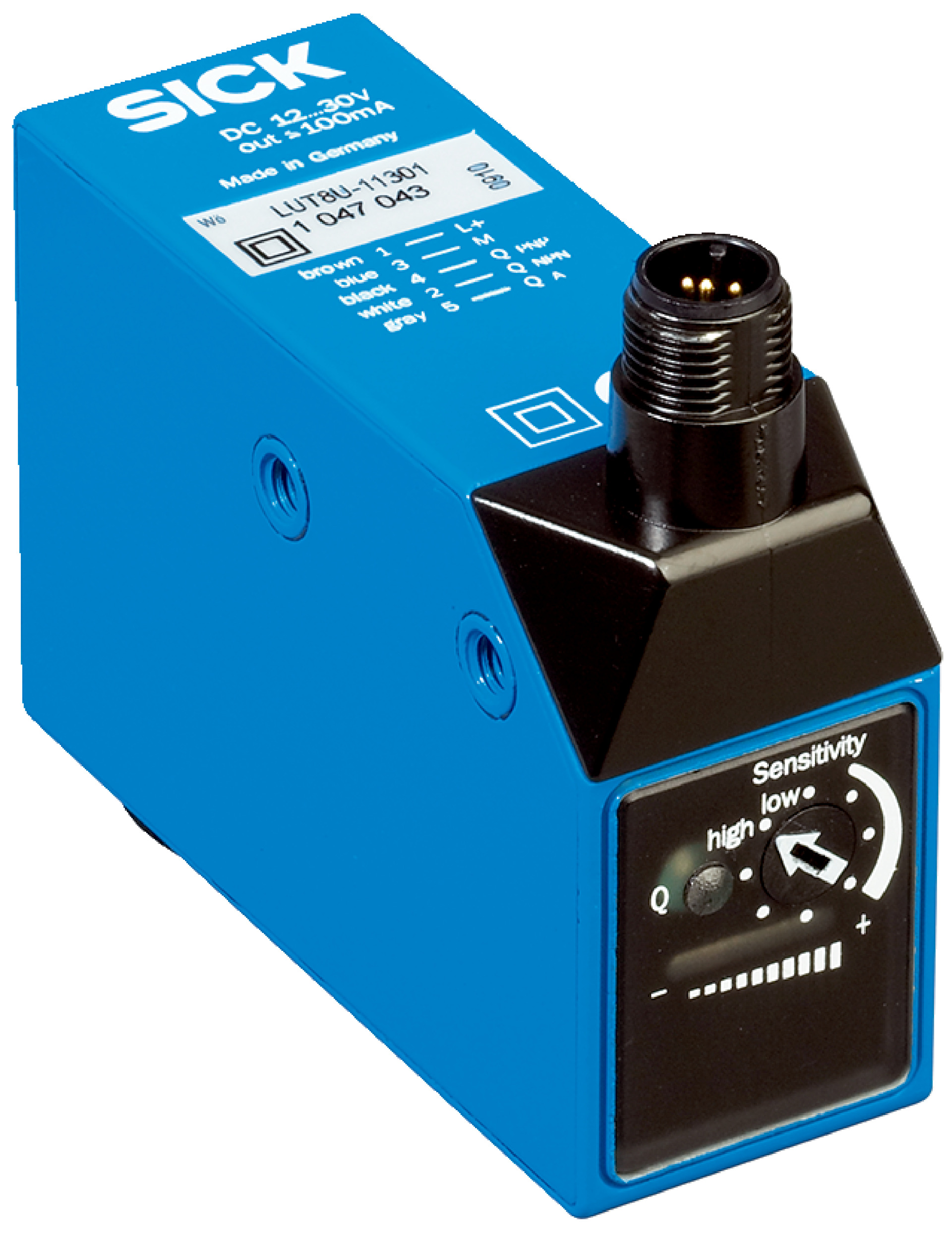

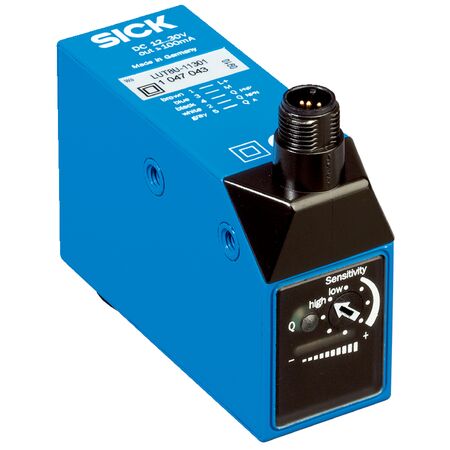

UV LED Sensor LUT8U-11701 | 375 nm Wavelength | IP67 Rated | Short Response Time | by SICK
The UV LED Sensor LUT8U-11701 is designed for precise UV light sensing in industrial automation, featuring a 375 nm wavelength and a sensing distance of up to 50 mm. With a robust IP67 rated zinc diecast housing and a short response time of 200 µs, this sensor is perfect for quality control and inspection systems, ensuring reliable performance in demanding environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: UV LED Sensor LUT8U-11701 | 375 nm Wavelength | IP67 Rated | Short Response Time | by SICK
Brand: SICK
SKU: 1047048
Alternatively Known As: UV LED Sensor, UV Light Sensor, Optical Sensor, Industrial UV Sensor
Technical Specifications
- Sensing distance: ≤ 50 mm
- Working range: 20 mm to 70 mm
- Light source: LED, UV at 375 nm wavelength
- Light emission: Long side with Ø 6 mm light spot size
- Receiving filters: ≤ 420 nm
- Receiving range: 450 nm to 750 nm
- Supply voltage: 12 V DC to 30 V DC
- Current consumption: < 100 mA
- Switching frequency: 2.5 kHz
- Response time: 200 µs
- Switching output: PNP and NPN
- Output current max: 100 mA
- Connection type: Male connector M12, 5-pin
- Protection class: II
- Enclosure rating: IP67
- Housing material: Zinc diecast
- Ambient operating temperature: -10 °C to +55 °C
- Storage temperature: -25 °C to +75 °C
- Shock load: According to IEC 60068
- Dimensions (H x L x W): 53mm x 80mm x 30.4mm
- Weight: 0.4 kg
Key Features
- Sensing distance up to 50 mm
- Manual adjustment via rotary switch
- Light switching output with PNP and NPN options
- LED UV light source with 375 nm wavelength
- IP67 rated zinc diecast housing for robust protection
- Short response time of 200 µs
- Protection against reverse polarity, short circuits, and interference pulses
Professional Installation Requirements
- Installation should be performed by a qualified technician or electrician to ensure proper connection and compliance with electrical standards.
Applications
- Industrial automation for object detection
- UV light sensing in manufacturing processes
- Quality control and inspection systems
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Low power consumption with efficient LED UV light source
- Durable zinc diecast housing reduces replacement frequency and waste
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy.
Available Now
The SICK LUT8U-11701 UV LED Sensor is available for immediate purchase, ideal for industrial automation and UV sensing applications.
