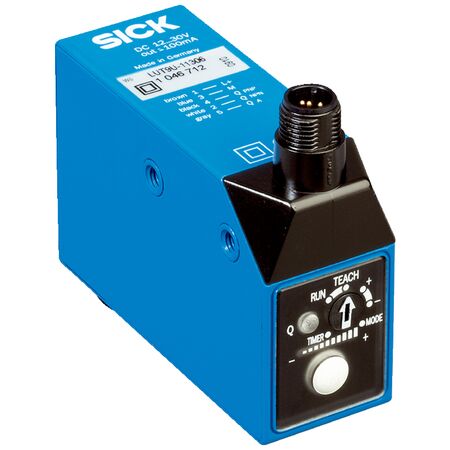

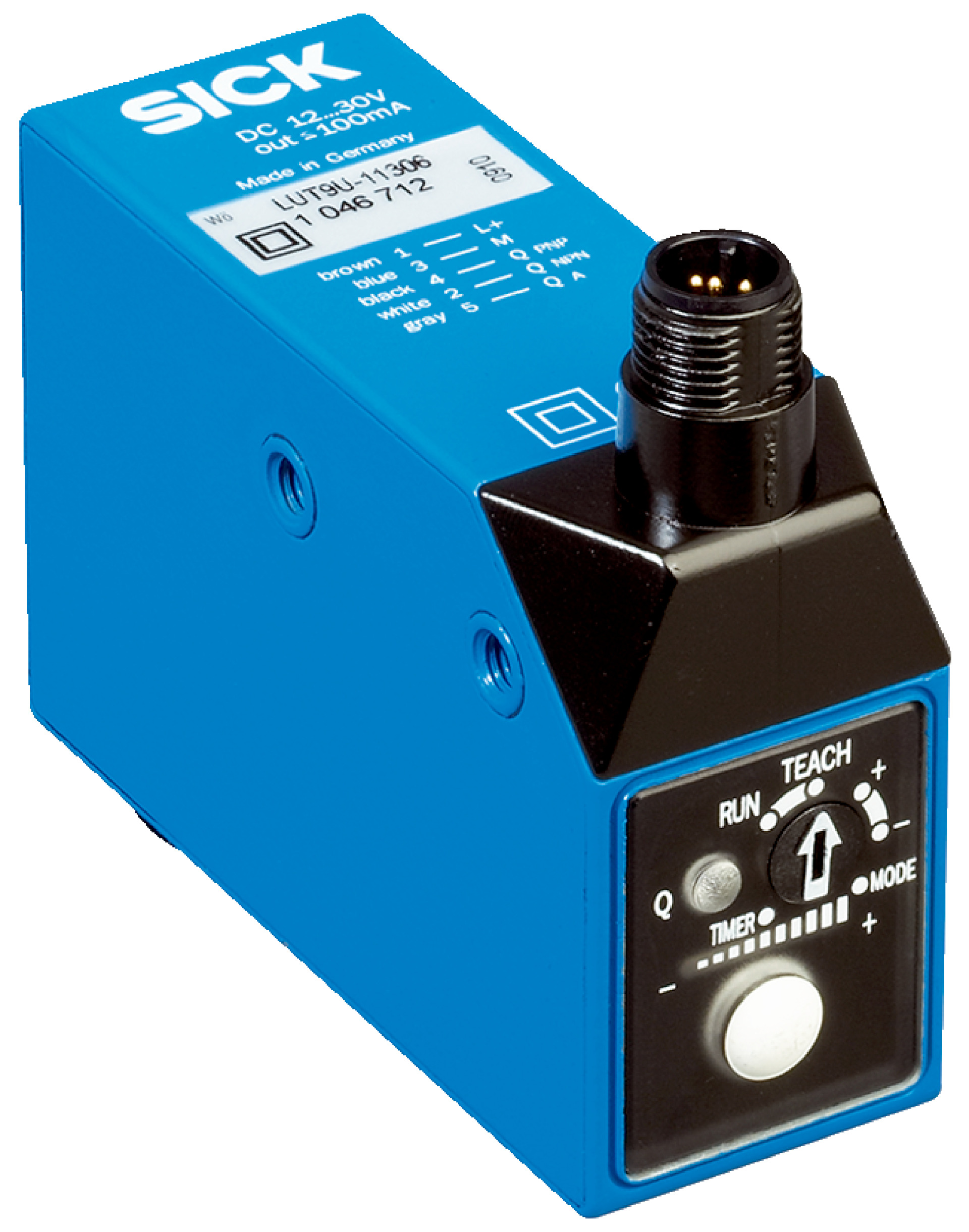

UV LED Sensor LUT9U-11106 | 375 nm Wavelength | IP67 Rated | Adjustable Frequency | by SICK
The UV LED Sensor LUT9U-11106 is designed for industrial automation and quality control, featuring a 375 nm wavelength light source and an adjustable switching frequency up to 6.5 kHz. With an IP67 rated enclosure, it ensures reliable performance in harsh environments, making it ideal for object detection and material inspection in production lines.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: UV LED Sensor LUT9U-11106 | 375 nm Wavelength | IP67 Rated | Adjustable Frequency | by SICK
Brand: SICK
SKU: 1047049
Alternatively Known As: UV LED Sensor, UV Light Sensor, Industrial UV Sensor, SICK UV Sensor
Technical Specifications
- Supply voltage: 10 V DC to 30 V DC
- Current consumption: less than 100 mA
- Switching frequency: adjustable 0.5 kHz, 2.5 kHz, 6.5 kHz
- Response time: selectable 1 ms, 200 µs, 75 µs
- Output current max: 100 mA
- Connection type: Male connector M12, 5-pin
- Protection class: II
- Enclosure rating: IP67
- Light source: LED, UV at 375 nm wavelength
- Light spot size: 2 mm x 6 mm
- Receiving filters: ≤ 420 nm
- Receiving range: 450 nm to 750 nm
- Adjustment: Teach-in button with static 2-point teach-in and manual fine adjustment
- Dimensions (H x L x W): 53mm x 80mm x 30.4mm
- Weight: 0.4 kg
Key Features
- Sensing distance of 10 mm with a working range of 0 mm to 20 mm
- UV LED light source with 375 nm wavelength
- Light emission from the long side with a 2 mm x 6 mm light spot size
- Static 2-point teach-in mode with manual fine adjustment
- Switching output options: PNP and NPN
- High switching frequency adjustable up to 6.5 kHz
- IP67 rated enclosure for dust and water protection
- Robust zinc diecast housing
- Protection against reverse polarity, short-circuit, and interference pulses
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with industrial sensor systems and electrical safety standards.
Applications
- Industrial automation for object detection
- Quality control in manufacturing
- UV light sensing in production lines
- Material inspection and sorting
Standards & Compliance
- Complies with AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Low power consumption with efficient LED technology
- Durable housing reduces replacement frequency and waste
- IP67 rating ensures long service life in harsh environments
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy.
Available Now
The SICK LUT9U-11106 UV LED Sensor is available for immediate purchase, ideal for industrial automation and quality control applications.
