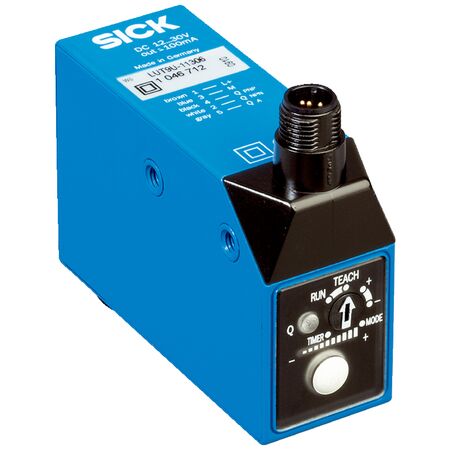

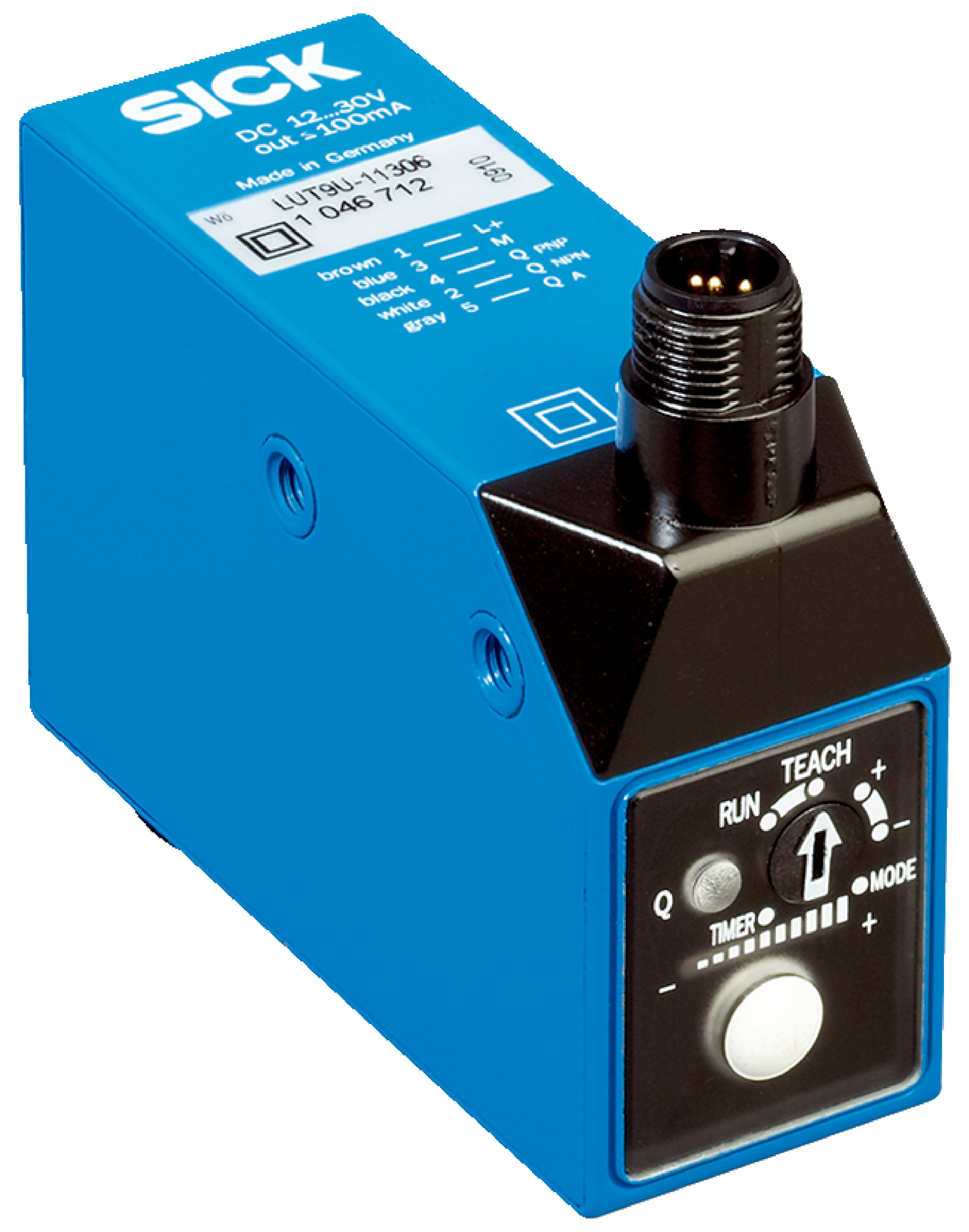

UV LED Sensor LUT9U-11216 | 375 nm Wavelength | IP67 Rated | PNP/NPN Output | by SICK
The UV LED Sensor LUT9U-11216 is designed for precise UV light sensing in industrial automation, featuring a 375 nm wavelength and an IP67 rated enclosure for dust and water protection. With adjustable switching frequencies and a sensing distance of 20 mm, it's perfect for quality control and inspection systems, ensuring reliable performance in demanding environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Supply voltage: 10 V DC to 30 V DC
- Current consumption: less than 100 mA
- Switching output: PNP and NPN options
- Response time selectable: 1 ms, 200 µs, 75 µs
- Output current max: 100 mA
- Switch-off delay adjustable: 0 ms, 10 ms, 20 ms
- Protection class II with interference pulse suppression
- Receiving filters ≤ 570 nm, receiving range 570 nm to 750 nm
- Teach-in mode: Static 2-point with manual fine adjustment
- Dimensions (H x L x W): 53mm x 80mm x 30.4mm
- Weight: 0.4 kg
Key Features
- Sensing distance of 20 mm with working range from 10 mm to 40 mm
- UV LED light source with 375 nm wavelength
- Long side light emission with a 3 mm x 9 mm light spot size
- Adjustable switching frequency: 0.5 kHz, 2.5 kHz, 6.5 kHz
- IP67 rated enclosure for dust and water protection
- Reverse polarity and short-circuit protected outputs
- Male connector M12, 5-pin connection type
Professional Installation Requirements
- Installation by qualified personnel is recommended to ensure proper electrical connections and compliance with safety standards.
Applications
- Industrial automation for object detection
- UV light sensing in manufacturing processes
- Quality control and inspection systems
Standards & Compliance
- Complies with AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Energy-efficient LED technology reduces power consumption
- Durable zinc diecast housing extends product lifespan, reducing waste
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy.
Available Now
The SICK LUT9U-11216 UV LED Sensor is available for immediate purchase, ideal for industrial automation and UV sensing applications.
