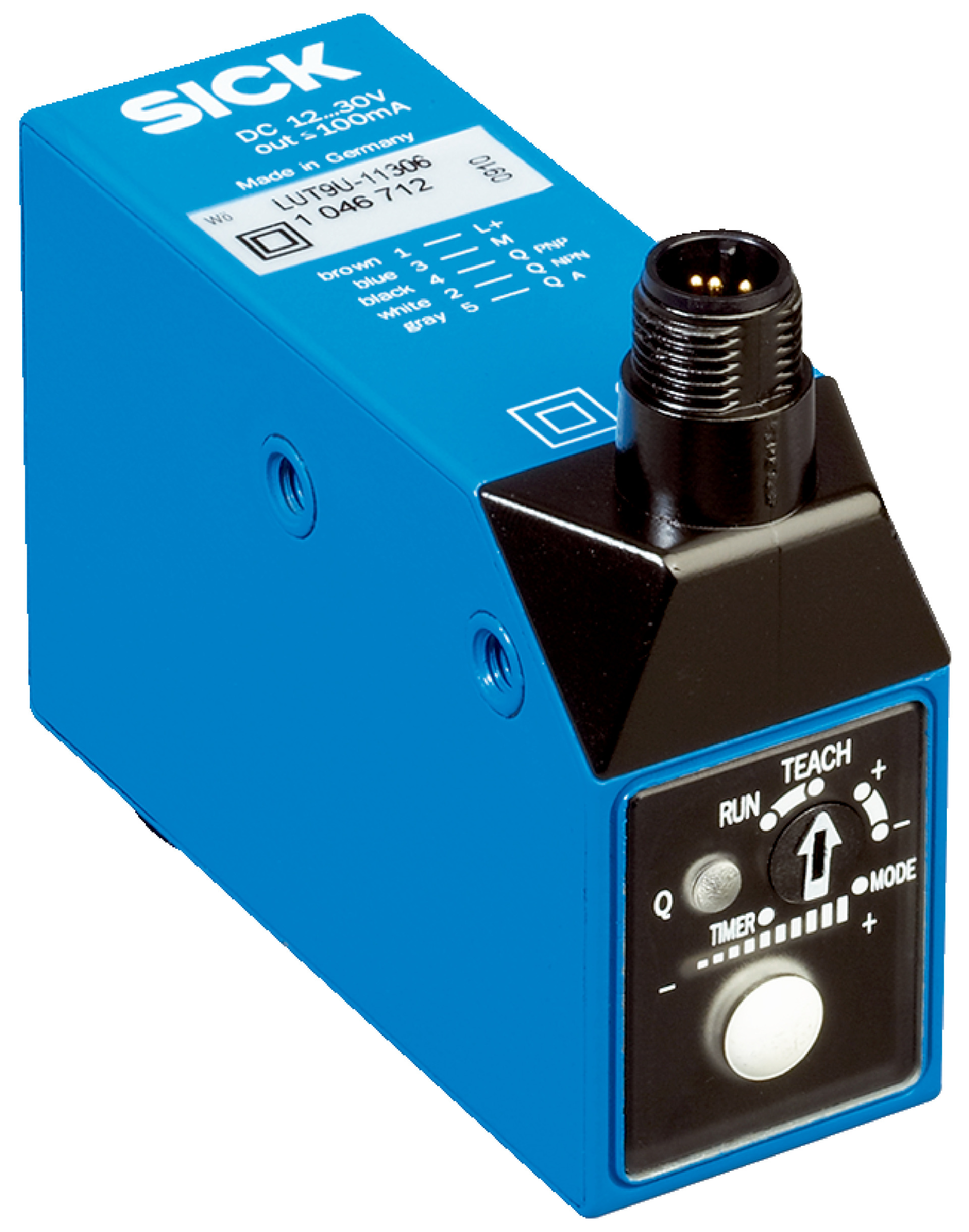

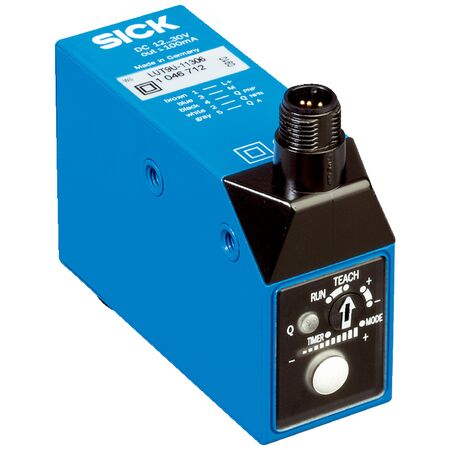

UV LED Sensor LUT9U-11306 | 375 nm Wavelength | IP67 Rated | Adjustable Frequency | by SICK
The UV LED Sensor LUT9U-11306 is designed for industrial automation and quality control, featuring a 375 nm wavelength and an adjustable switching frequency up to 6.5 kHz. With a robust IP67 rated enclosure, it ensures reliable performance in harsh environments, making it ideal for object detection, material sorting, and packaging applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: UV LED Sensor LUT9U-11306 | 375 nm Wavelength | IP67 Rated | Adjustable Frequency | by SICK
Brand: SICK
SKU: 1046712
Alternatively Known As: UV LED Sensor, UV Light Sensor, Industrial UV Sensor, SICK UV Sensor
Technical Specifications
- Supply voltage: 10 V DC to 30 V DC
- Current consumption: less than 100 mA
- Switching frequency: adjustable 0.5 kHz, 2.5 kHz, 6.5 kHz
- Response time: selectable 1 ms, 200 µs, 75 µs
- Output current max: 100 mA
- Connection type: Male M12, 5-pin connector
- Protection class: Class II
- Circuit protection: Reverse polarity, short-circuit, interference pulse suppression
- Ambient operating temperature: -10 °C to +55 °C
- Storage temperature: -25 °C to +75 °C
- Shock load compliant with IEC 60068
- Dimensions (H x L x W): 53mm x 80mm x 30.4mm
- Weight: 0.4 kg
Key Features
- Sensing distance of 50 mm with working range from 20 mm to 70 mm
- UV LED light source with 375 nm wavelength
- Light emission from the long side with a 5 mm x 15 mm light spot size
- Static 2-point teach-in mode with manual fine adjustment
- Switching output options: PNP and NPN
- High switching frequency adjustable up to 6.5 kHz
- IP67 rated enclosure for dust and water protection
- Robust zinc diecast housing
- Reverse polarity and short-circuit protected outputs
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with electrical and sensor equipment to ensure proper setup and safety compliance.
Applications
- Industrial automation for object detection
- Quality control with UV light sensing
- Material sorting and inspection
- Packaging and assembly line monitoring
Standards & Compliance
- Complies with AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Energy-efficient LED technology reduces power consumption
- Durable housing extends product lifespan, reducing waste
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy.
Available Now
The SICK LUT9U-11306 UV LED Sensor is available for immediate purchase, ideal for industrial automation and quality control applications.
