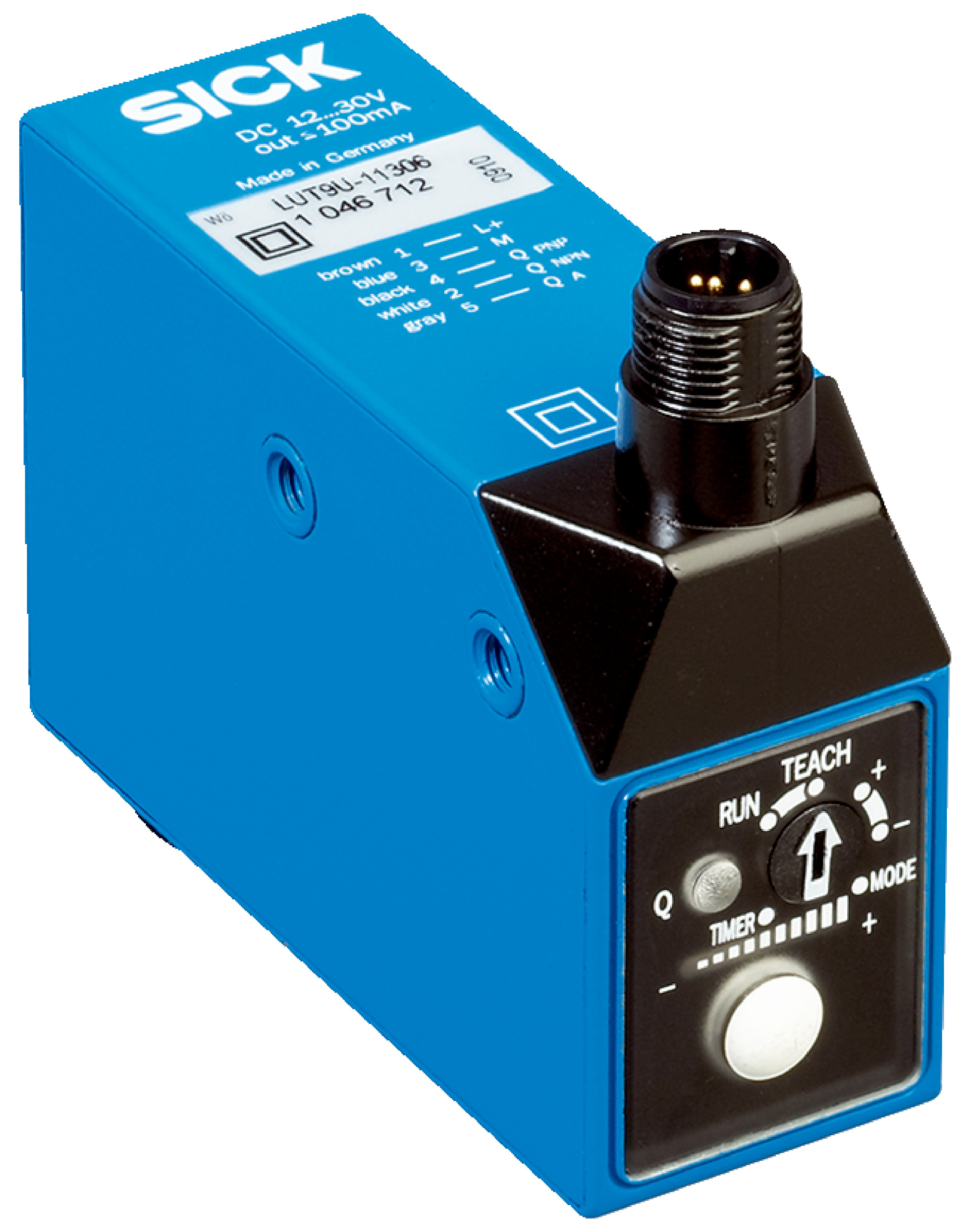

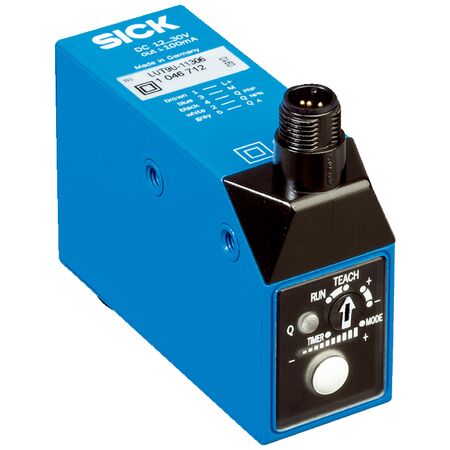

UV LED Sensor LUT9U-11316 | 375 nm Wavelength | IP67 Rated | Fast Response Times | by SICK
The UV LED Sensor LUT9U-11316 is designed for industrial automation and quality control, featuring a 375 nm wavelength and an IP67 enclosure rating. With adjustable switching frequencies and fast response times, this sensor is perfect for applications like object detection, material sorting, and packaging verification, ensuring reliable performance in demanding environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: UV LED Sensor LUT9U-11316 | 375 nm Wavelength | IP67 Rated | Fast Response Times | by SICK
Brand: SICK
SKU: 1047052
Alternatively Known As: UV LED Sensor, UV Light Sensor, Industrial UV Sensor, SICK LUT9U Sensor
Technical Specifications
- Supply voltage: 10 V DC to 30 V DC
- Current consumption: less than 100 mA
- Switching frequency adjustable between 0.5 kHz, 2.5 kHz, and 6.5 kHz
- Response time options: 1 ms, 200 µs, 75 µs
- Output current max: 100 mA
- Connection: Male M12, 5-pin connector
- Protection: Reverse polarity, short-circuit, and interference pulse suppression
- Operating temperature: -10 °C to +55 °C
- Storage temperature: -25 °C to +75 °C
- Shock load compliant with IEC 60068
- Dimensions (H x L x W): 53mm x 80mm x 30.4mm
- Weight: 0.4 kg
Key Features
- Sensing distance of 50 mm with working range from 20 mm to 70 mm
- UV LED light source with 375 nm wavelength
- Long side light emission with a 5 mm x 15 mm light spot size
- Static 2-point teach-in mode with manual fine adjustment
- Adjustable switching frequency: 0.5 kHz, 2.5 kHz, 6.5 kHz
- Fast response times: 1 ms, 200 µs, 75 µs
- PNP and NPN switching outputs with light switching mode
- Protection class II with IP67 enclosure rating
- Robust zinc diecast housing
Professional Installation Requirements
- Installation should be performed by a qualified technician familiar with electrical and sensor equipment to ensure proper setup and safety compliance.
Applications
- Industrial automation for object detection
- Quality control with UV light sensing
- Material sorting and inspection
- Packaging and labeling verification
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Low power consumption with efficient LED technology
- Durable housing reduces replacement frequency and waste
- Complies with China-RoHS for reduced hazardous substances
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for specific warranty terms.
Available Now
The SICK LUT9U-11316 UV LED Sensor is available for immediate purchase, ideal for industrial automation and quality control applications.
