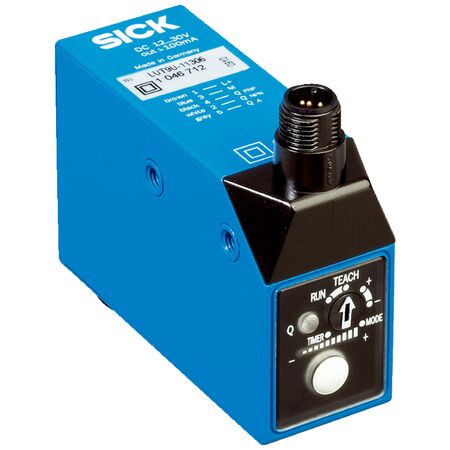

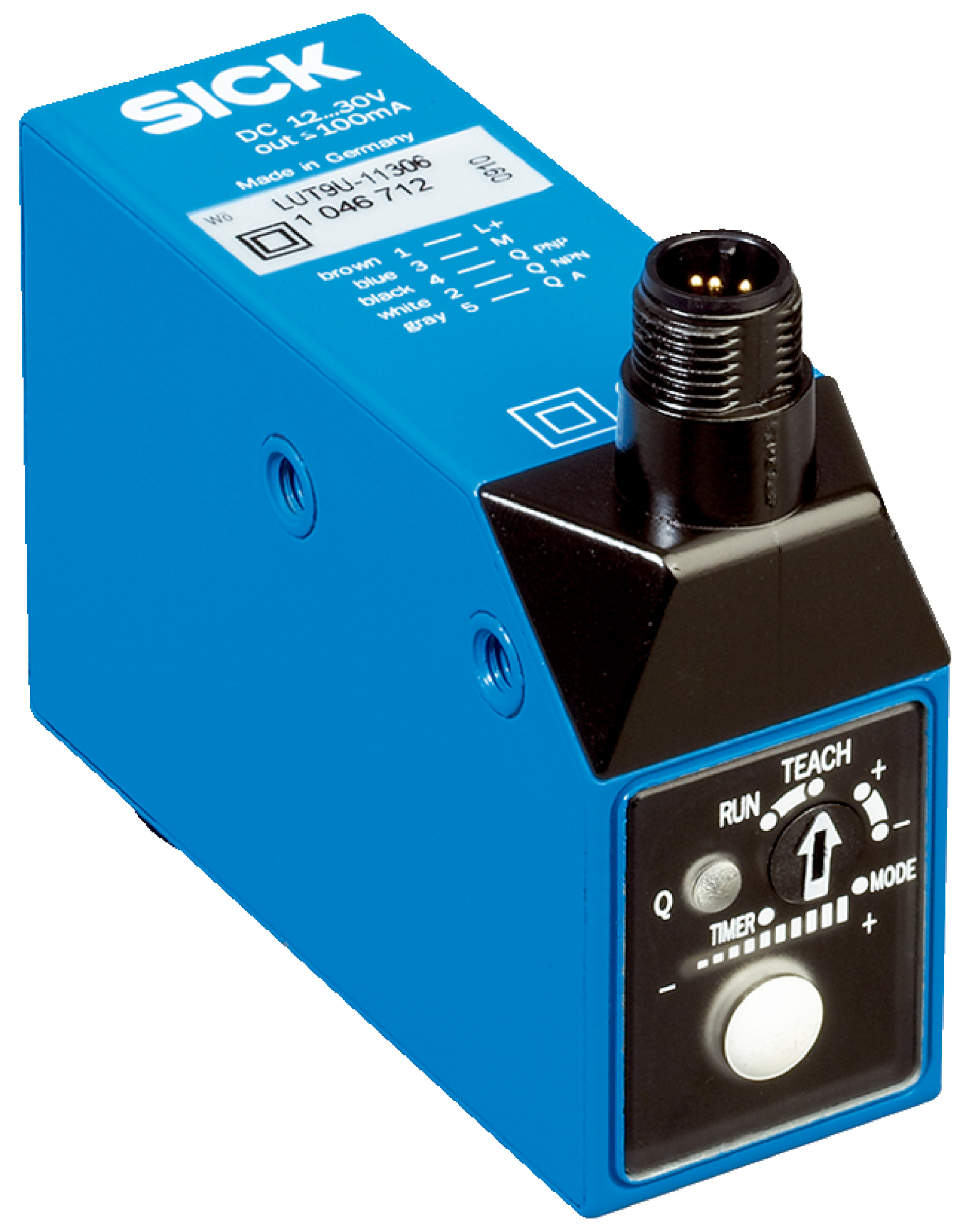

UV LED Sensor LUT9U-11326 | 375 nm Wavelength | IP67 Rated | Fast Response Time | by SICK
The UV LED Sensor LUT9U-11326 is designed for industrial automation, featuring a 375 nm wavelength light source and a sensing distance of up to 50 mm. With an IP67 rating and robust zinc diecast housing, it excels in harsh environments, making it ideal for quality control, material sorting, and non-contact sensing applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: UV LED Sensor LUT9U-11326 | 375 nm Wavelength | IP67 Rated | Fast Response Time | by SICK
Brand: SICK
SKU: 1047053
Alternatively Known As: UV LED Sensor, UV Light Sensor, Industrial UV Sensor, SICK UV Sensor, LUT9U Sensor
Technical Specifications
- Sensing distance: 50 mm
- Working range: 20 mm to 70 mm
- Light source: LED, UV at 375 nm wavelength
- Light emission: Long side, vertical direction
- Light spot size: 5 mm x 15 mm
- Receiving filters: ≤ 610 nm
- Supply voltage: 10 V DC to 30 V DC
- Current consumption: < 100 mA
- Switching frequency: Adjustable 0.5 kHz, 2.5 kHz, 6.5 kHz
- Response time: 1 ms, 200 µs, 75 µs selectable
- Switching output: PNP and NPN
- Output current max: 100 mA
- Time delay: Switch-off delay adjustable 0 ms, 10 ms, 20 ms
- Connection type: Male connector M12, 5-pin
- Protection class: II
- Enclosure rating: IP67
- Housing material: Zinc diecast
- Operating temperature: -10 °C to +55 °C
- Storage temperature: -25 °C to +75 °C
- Shock load: IEC 60068 compliant
- Dimensions (H x L x W): 53mm x 80mm x 30.4mm
- Weight: 0.4 kg
Key Features
- Sensing distance up to 50 mm with working range from 20 mm to 70 mm
- UV LED light source with 375 nm wavelength
- Light emission from the long side with a 5 mm x 15 mm light spot size
- Vertical light spot direction with receiving filters ≤ 610 nm
- Static 2-point teach-in mode with manual fine adjustment
- Light switching output function with PNP and NPN switching outputs
- Adjustable switching frequency (0.5 kHz, 2.5 kHz, 6.5 kHz)
- Fast response times down to 75 µs
- Protection class II with IP67 enclosure rating
- Robust zinc diecast housing
- Male connector M12, 5-pin connection type
- Circuit protection including reverse polarity, short-circuit, and interference pulse suppression
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with electrical and sensor equipment to ensure proper setup and safety compliance.
Applications
- Industrial automation for object detection using UV light
- Quality control and inspection in manufacturing
- Material sorting and identification
- Non-contact sensing in harsh environments
Standards & Compliance
- Complies with AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Low power consumption with efficient LED UV light source
- Durable zinc diecast housing reduces replacement frequency and waste
- IP67 rating ensures long service life in harsh environments, minimizing environmental impact
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for specific warranty terms.
Available Now
The SICK LUT9U-11326 UV LED Sensor is available for immediate purchase, ideal for industrial automation and quality control applications.
