UV LED Sensor LUT9U-11336 | 375 nm Wavelength | IP67 Rated | Adjustable Switching Frequency | by SICK
The UV LED Sensor LUT9U-11336 is designed for industrial automation and quality control, featuring a 375 nm wavelength UV light source and an adjustable switching frequency. With a robust IP67 rating for dust and water protection, this sensor is perfect for precise light switching in challenging environments, ensuring reliable performance in material inspection and object detection applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.

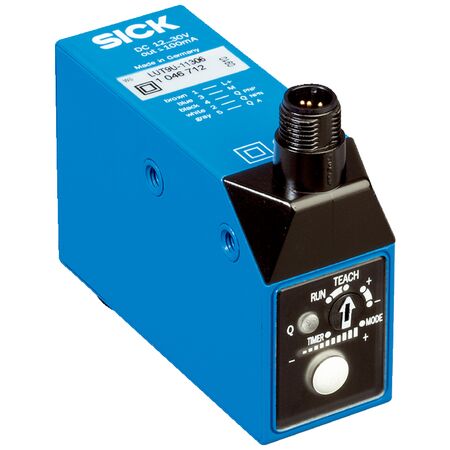

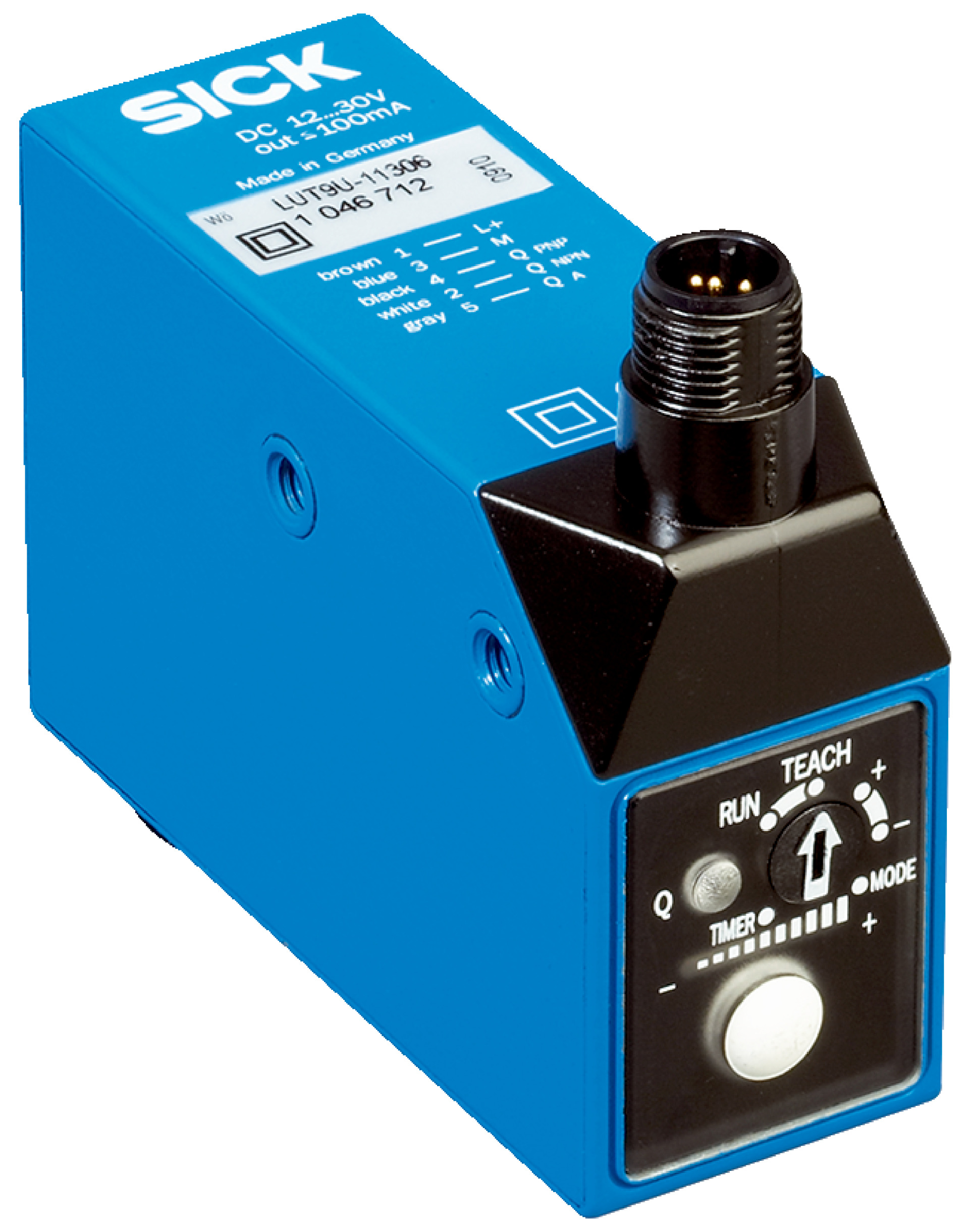

Product Name/Title: UV LED Sensor LUT9U-11336 | 375 nm Wavelength | IP67 Rated | Adjustable Switching Frequency | by SICK
Brand: SICK
SKU: 1047054
Alternatively Known As: UV LED Sensor, Light Switching Sensor, UV Light Sensor, Industrial UV Sensor
Technical Specifications
- Supply voltage: 10 V DC to 30 V DC
- Current consumption: less than 100 mA
- Switching frequency: adjustable 0.5 kHz, 2.5 kHz, 6.5 kHz
- Response time: selectable 1 ms, 200 µs, 75 µs
- Output current max: 100 mA
- Connection type: Male connector M12, 5-pin
- Protection class: II
- Circuit protection: Reverse polarity, short-circuit, interference pulse suppression
- Ambient operating temperature: -10 °C to +55 °C
- Storage temperature: -25 °C to +75 °C
- Shock load: According to IEC 60068
- Light source: LED, UV at 375 nm wavelength
- Light spot size: 5 mm x 15 mm
- Light spot direction: Vertical
- Receiving filters: ≤ 665 nm
- Receiving range: 670 nm to 750 nm
- Adjustment: Teach-in button with static 2-point teach-in and manual fine adjustment
- Dimensions (H x L x W): 53mm x 80mm x 30.4mm
- Weight: 0.4 kg
Key Features
- Sensing distance of 50 mm with working range from 20 mm to 70 mm
- UV LED light source with 375 nm wavelength
- Light emission from the long side with a 5 mm x 15 mm light spot size
- Teach-in button for static 2-point teach-in with manual fine adjustment
- Switching frequency adjustable between 0.5 kHz, 2.5 kHz, and 6.5 kHz
- Response time options of 1 ms, 200 µs, and 75 µs
- PNP and NPN switching outputs with light switching mode
- Analog output range from 0 mA to 13 mA
- IP67 rated enclosure for dust and water protection
- Zinc diecast housing for durability
- Reverse polarity and short-circuit protected outputs
Professional Installation Requirements
- Installation should be performed by a qualified technician or electrician familiar with industrial sensor systems to ensure proper setup and safety compliance.
Applications
- Industrial automation for object detection
- Quality control in manufacturing processes
- UV light sensing in material inspection
- Automation systems requiring precise light switching
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
- Complies with AS/NZS 3820 – Essential Safety Requirements for Electrical Equipment
Environmental Benefits
- Low power consumption with efficient LED technology
- Durable zinc diecast housing reduces replacement frequency
- IP67 rating ensures long service life in harsh environments, reducing waste
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy for details.
Available Now
The SICK LUT9U-11336 UV LED Sensor is available for immediate purchase, ideal for industrial automation and quality control applications requiring precise UV light detection.
