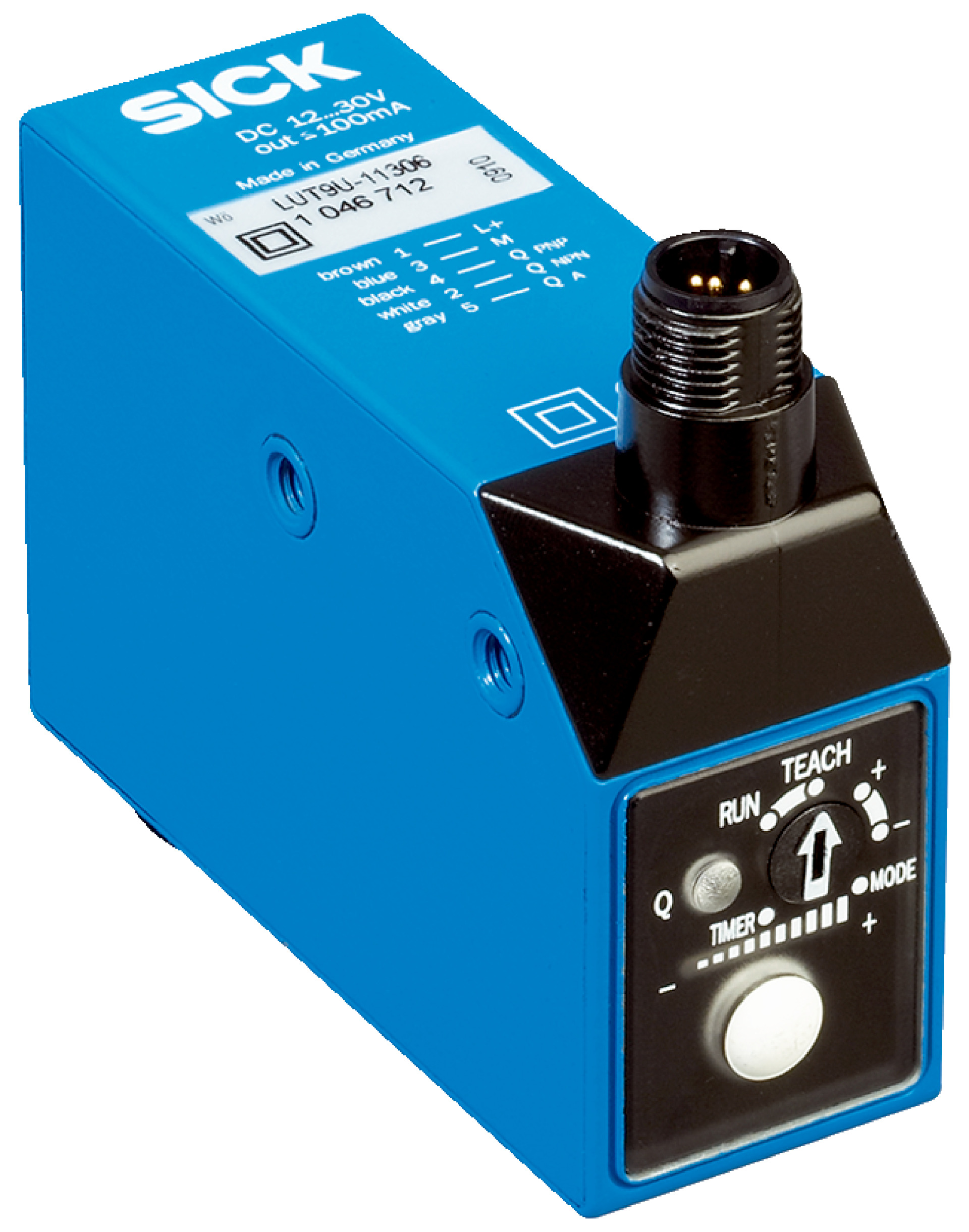

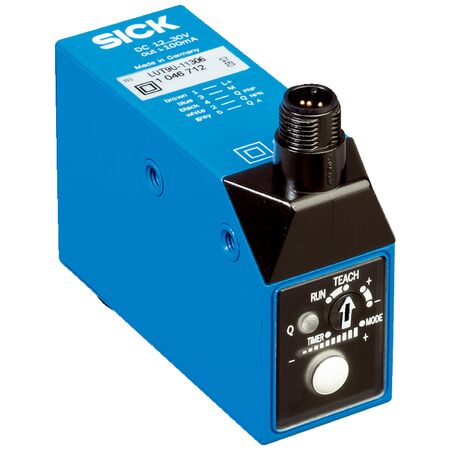

UV LED Sensor LUT9U-11606 | 150 mm Sensing Distance | IP67 Rated | 375 nm Wavelength | by SICK
The UV LED Sensor LUT9U-11606 is designed for industrial automation, featuring a sensing distance of up to 150 mm and a 375 nm LED light source. Ideal for quality control and material inspection, this sensor offers high switching frequencies and an IP67 rated enclosure for dust and water protection, ensuring reliable performance in demanding environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: UV LED Sensor LUT9U-11606 | 150 mm Sensing Distance | IP67 Rated | 375 nm Wavelength | by SICK
Brand: SICK
SKU: 1047414
Alternatively Known As: UV LED Sensor, UV Light Sensor, Industrial UV Sensor, SICK UV Sensor LUT9U-11606
Technical Specifications
- Sensing distance: 150 mm
- Working range: 50 mm to 250 mm
- Light source: LED, UV at 375 nm wavelength
- Light spot size: 5 mm x 12 mm, vertical direction
- Receiving filters: ≤ 420 nm
- Receiving range: 450 nm to 750 nm
- Supply voltage: 10 V DC to 30 V DC
- Current consumption: < 100 mA
- Switching frequency: 0.5 kHz, 2.5 kHz, 6.5 kHz adjustable
- Response time: 1 ms, 200 µs, 75 µs selectable
- Output current max: 100 mA
- Connection type: Male connector M12, 5-pin
- Protection class: II
- Enclosure rating: IP67
- Housing material: Zinc diecast
- Operating temperature: -10 °C to +55 °C
- Storage temperature: -25 °C to +75 °C
- Shock load: According to IEC 60068
- Dimensions (H x L x W): 53mm x 80mm x 30.4mm
- Weight: 0.4 kg
Key Features
- Sensing distance up to 150 mm
- Large housing design with zinc diecast material
- LED UV light source with 375 nm wavelength
- Light emission from the long side with a 5 mm x 12 mm light spot
- Static 2-point teach-in mode with manual fine adjustment
- Switching output options: PNP and NPN
- High switching frequency adjustable up to 6.5 kHz
- IP67 rated enclosure for dust and water protection
- Reverse polarity and short-circuit protected outputs
Professional Installation Requirements
- Installation by a qualified technician or electrician is recommended to ensure proper connection and compliance with safety standards.
Applications
- Industrial automation for object detection
- Quality control with UV light sensing
- Material inspection and sorting
- Packaging and assembly line monitoring
Standards & Compliance
- Complies with AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Energy-efficient LED UV light source reduces power consumption
- Durable zinc diecast housing extends product lifespan, reducing waste
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for specific warranty terms.
Available Now
The SICK LUT9U-11606 UV LED Sensor is available for immediate purchase, ideal for industrial automation and quality control applications.
