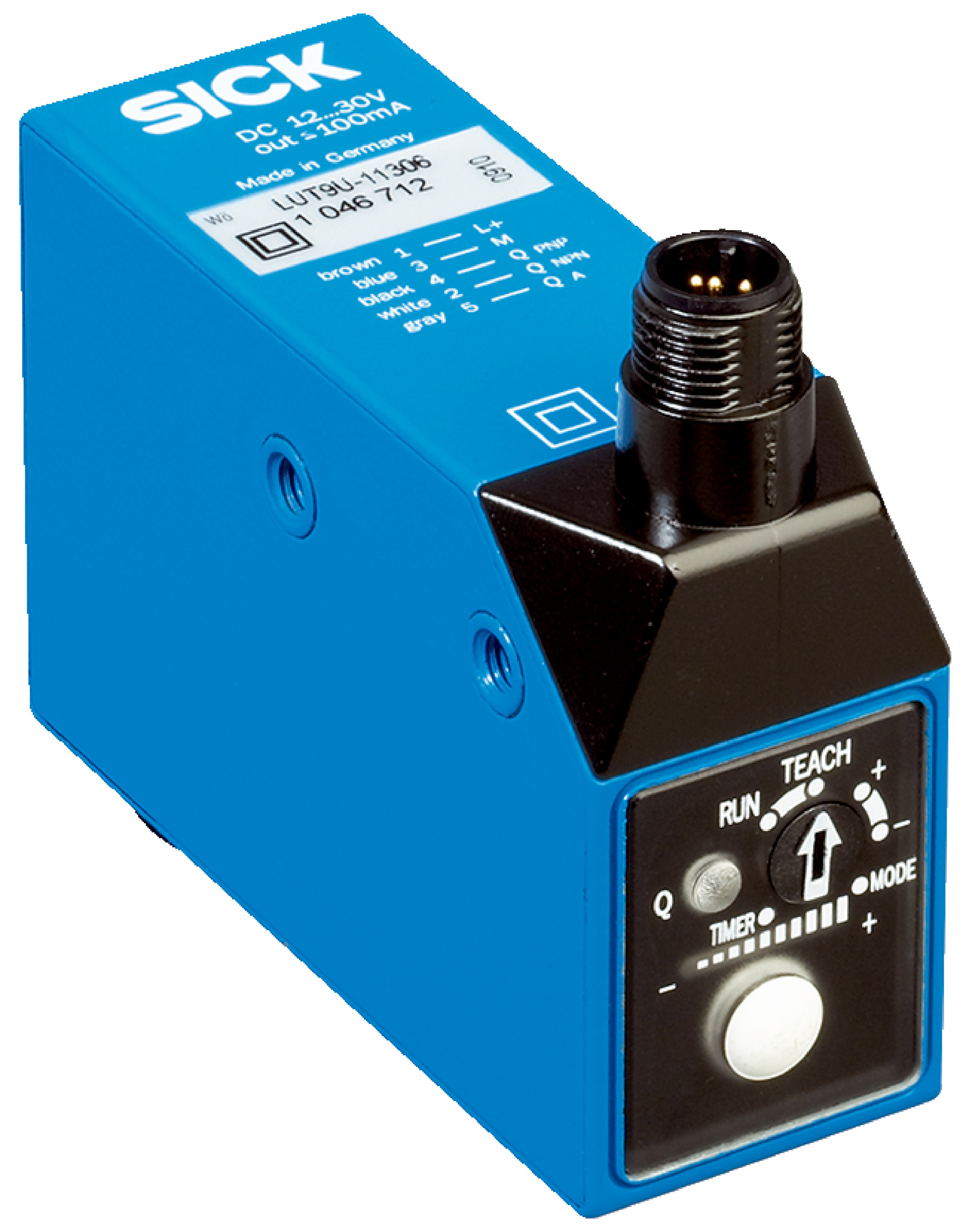

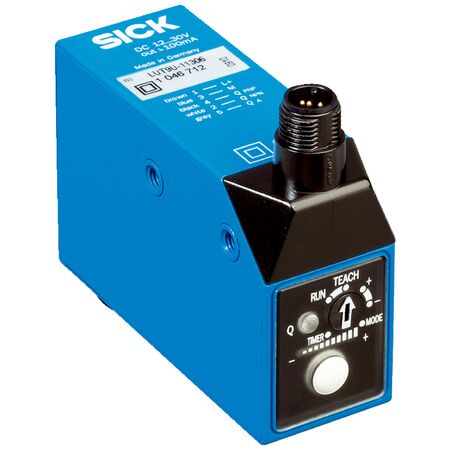

UV LED Sensor LUT9U-12306 | 375 nm Wavelength | IP67 Rated | Adjustable Switching Frequency | by SICK
The UV LED Sensor LUT9U-12306 is designed for industrial automation and quality control applications, featuring a 375 nm wavelength and an adjustable switching frequency. With a sensing distance of 50 mm and IP67 protection, this sensor ensures reliable performance in demanding environments, making it ideal for object detection and UV light sensing in manufacturing processes.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: UV LED Sensor LUT9U-12306 | 375 nm Wavelength | IP67 Rated | Adjustable Switching Frequency | by SICK
Brand: SICK
SKU: 1047055
Alternatively Known As: UV LED Sensor, UV Light Sensor, Industrial UV Sensor, SICK LUT9U Sensor
Technical Specifications
- Supply voltage: 10 V DC to 30 V DC
- Current consumption: less than 100 mA
- Switching frequency adjustable: 0.5 kHz, 2.5 kHz, 6.5 kHz
- Response time options: 1 ms, 200 µs, 75 µs
- Switching output types: PNP, NPN
- Analog output range: 0 mA to 13 mA
- Output current max: 100 mA
- Connection type: Male connector M12, 5-pin
- Protection: Reverse polarity, short-circuit, interference pulse suppression
- Operating temperature range: -10 °C to +55 °C
- Storage temperature range: -25 °C to +75 °C
- Shock load compliant with IEC 60068
- Dimensions (H x L x W): 53mm x 80mm x 30.4mm
- Weight: 0.4 kg
Key Features
- Sensing distance of 50 mm with working range from 20 mm to 70 mm
- LED UV light source with 375 nm wavelength
- Exchangeable light emission from long and short side
- Light spot size of 5 mm x 15 mm with vertical direction
- Teach-in button for static 2-point teach-in with manual fine adjustment
- Light switching output with adjustable switching frequency and time delay
- Protection class II with IP67 enclosure rating
- Circuit protection including reverse polarity, short-circuit, and interference pulse suppression
Professional Installation Requirements
- Installation should be performed by a qualified technician or electrician familiar with industrial sensor systems to ensure proper setup and safety compliance.
Applications
- Industrial automation for object detection
- UV light sensing in manufacturing processes
- Quality control and inspection systems
- Material sorting and identification
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
- Complies with AS/NZS 3820 – Essential Safety Requirements for Electrical Equipment
Environmental Benefits
- Low power consumption with efficient LED UV light source
- Durable zinc diecast housing reduces waste through extended product life
- IP67 rating ensures protection against dust and water, minimizing environmental damage
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK's official warranty policy for details.
Available Now
The SICK LUT9U-12306 UV LED Sensor is available for immediate purchase, ideal for industrial automation and quality control applications.
