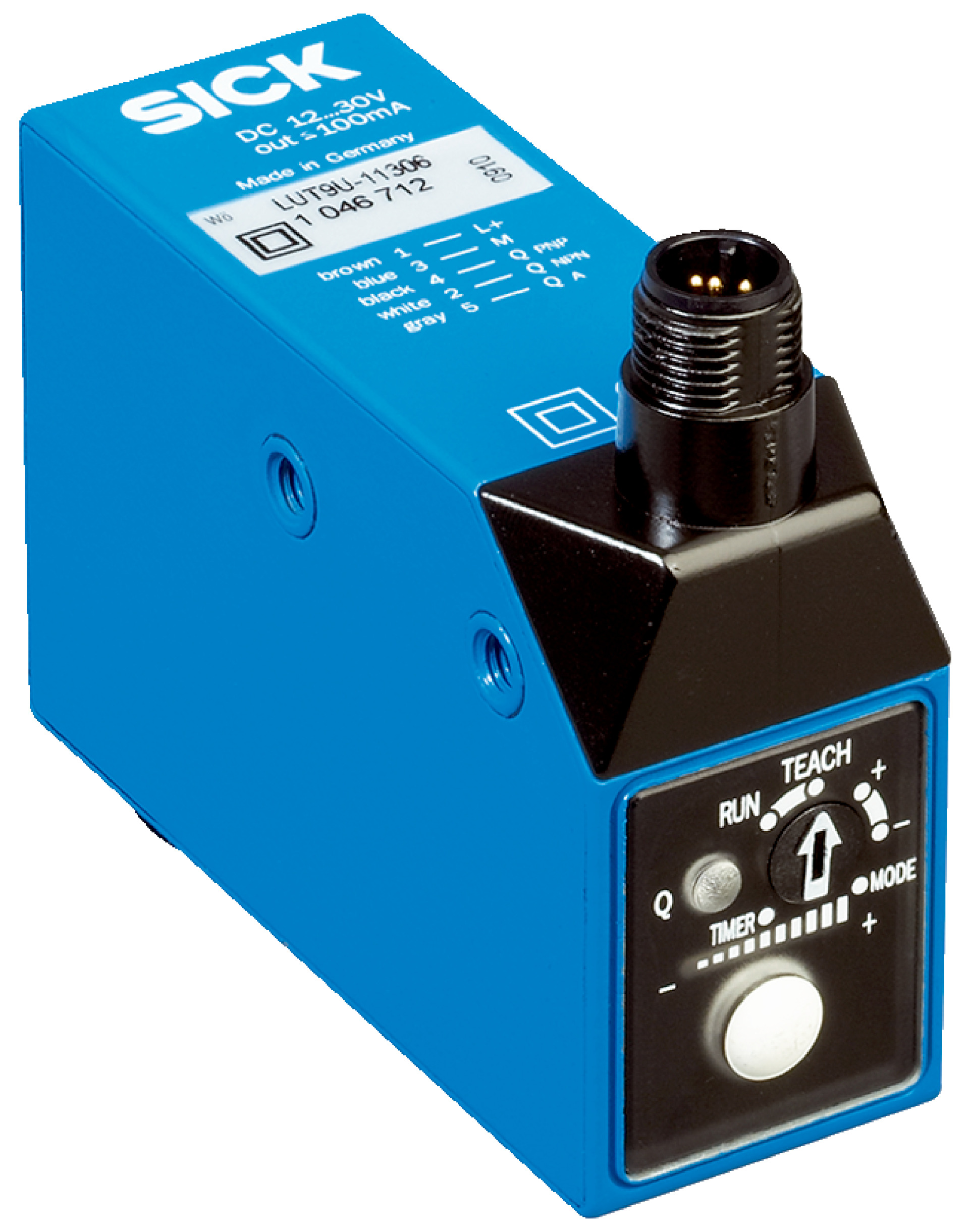

UV LED Sensor LUT9U-P120L | IP67 Rated | Adjustable Frequency & Response Time | by SICK
The UV LED Sensor LUT9U-P120L is designed for industrial automation and quality control, featuring a sensing distance of 20 mm and a UV light source with a 375 nm wavelength. With an IP67 rated enclosure for dust and water protection, this sensor is perfect for production lines requiring reliable UV light sensing and advanced IO-Link communication for data exchange.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: UV LED Sensor LUT9U-P120L | IP67 Rated | Adjustable Frequency & Response Time | by SICK
Brand: SICK
SKU: 1046188
Alternatively Known As: UV LED Sensor, UV Light Sensor, IO-Link UV Sensor, Industrial UV Sensor
Technical Specifications
- Supply voltage: 10 V DC to 30 V DC
- Current consumption: less than 100 mA
- Switching output: PNP with light switching mode
- Switching frequency adjustable between 0.5 kHz, 2.5 kHz, and 6.5 kHz
- Response time adjustable from 1 ms to 75 µs
- Output current max: 100 mA
- Connection type: Male M12, 4-pin connector
- Protection class: II
- Enclosure rating: IP67
- Housing material: Zinc diecast
- Operating temperature range: -10 °C to +55 °C
- Storage temperature range: -25 °C to +75 °C
- Dimensions (H x L x W): 53mm x 80mm x 30mm
- Weight: 0.4 kg
Key Features
- Sensing distance of 20 mm with working range from 10 mm to 40 mm
- UV LED light source with 375 nm wavelength
- Long side light emission with a 3 mm x 9 mm light spot size
- Adjustable switching frequency and response time
- IP67 rated enclosure for dust and water protection
- IO-Link communication interface for advanced data exchange
- Reverse polarity and short-circuit protected outputs
Professional Installation Requirements
- Installation by a qualified technician or electrician is recommended to ensure proper connection and compliance with electrical standards.
Applications
- Industrial automation for object detection
- Quality control in manufacturing
- UV light sensing in production lines
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Energy-efficient LED technology reduces power consumption
- Durable zinc diecast housing extends product lifespan, reducing waste
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for detailed terms.
Available Now
The SICK LUT9U-P120L UV LED Sensor is available for immediate purchase, ideal for industrial automation and quality control applications.
