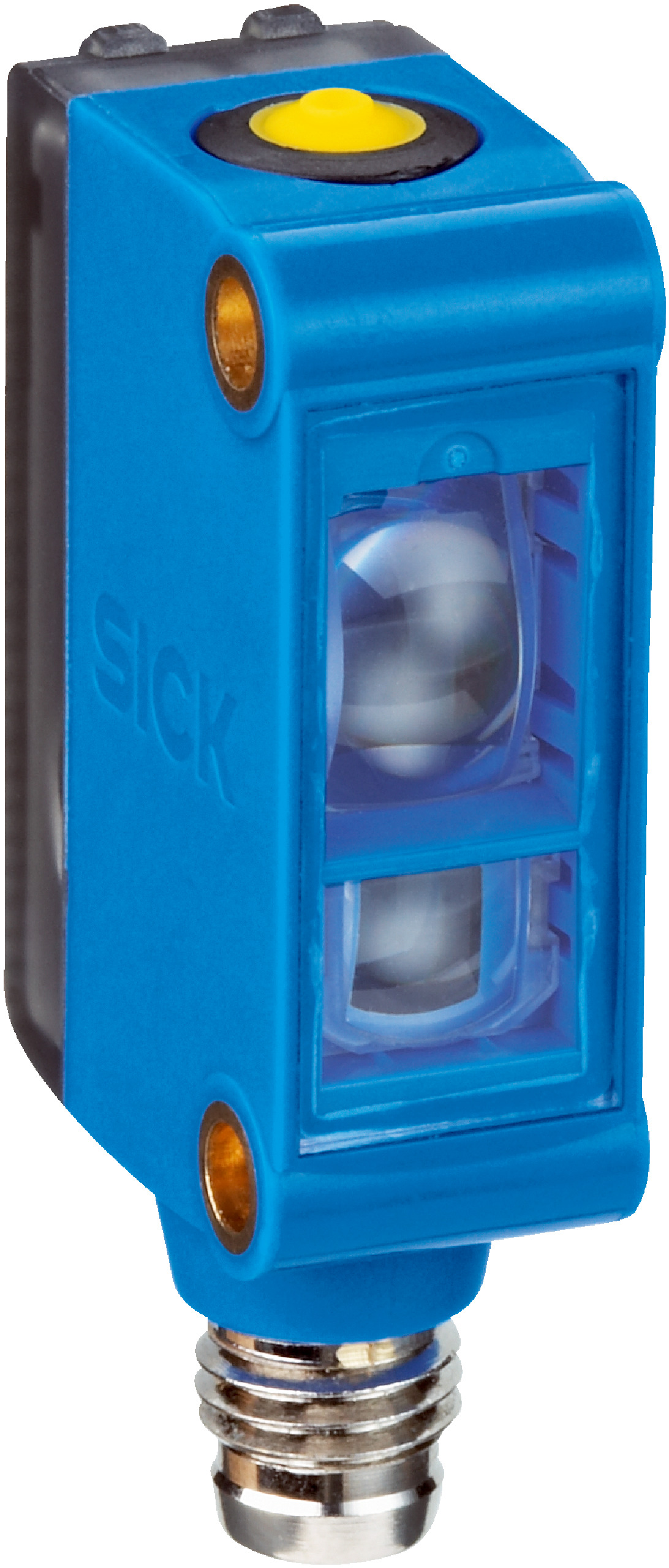

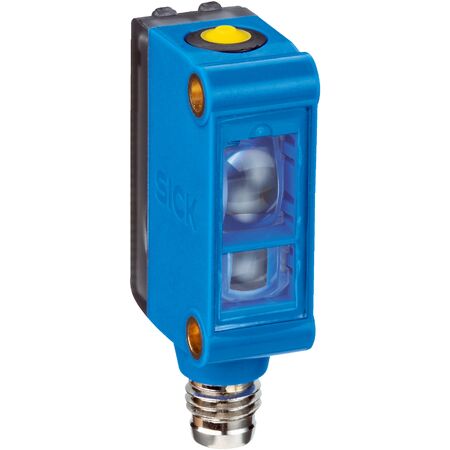

UV LED Sensor LUTM-UP817A1P | IO-Link Communication | IP67 Rated | 6 kHz Switching Frequency | by SICK
The LUTM-UP817A1P UV LED Sensor is designed for industrial automation, featuring a 370 nm UV LED light source and IO-Link communication for advanced data exchange. With a high switching frequency of 6 kHz and an IP67 enclosure rating, this sensor is perfect for object detection and quality control in manufacturing environments, ensuring reliable performance in challenging conditions.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Supply voltage: 12 V DC to 24 V DC
- Current consumption: ≤ 50 mA
- Switching frequency: 6 kHz
- Response time: 80 µs
- Light source: UV LED at 370 nm wavelength
- Light spot size: 2 mm x 2.5 mm
- Output current max: < 100 mA
- Connection: Male connector M8, 4-pin
- Enclosure rating: IP67
- Protection: Reverse polarity and short-circuit protected
- Operating temperature: -10 °C to +55 °C
- Storage temperature: -20 °C to +75 °C
- Weight: 70 g
- Housing material: ABS
- Dimensions (H x L x W): 31.5mm x 21mm x 12mm
- Weight: 0.1 kg
Key Features
- Small housing design with dimensions 12 mm x 31.5 mm x 21 mm
- Sensing distance up to 12.5 mm with working range 8 mm to 20 mm
- UV LED light source with 370 nm wavelength
- Light emission from long side with 2 mm x 2.5 mm light spot size
- Light/dark switching output function with PNP switching output
- IO-Link communication interface for advanced data exchange
- High switching frequency of 6 kHz and fast response time of 80 µs
- Protection class III with IP67 enclosure rating
- Reverse polarity and short-circuit protected output
- Operating temperature range from -10 °C to +55 °C
Professional Installation Requirements
- Installation should be performed by a qualified technician or electrician familiar with IO-Link devices and industrial sensor integration to ensure proper setup and safety compliance.
Applications
- Industrial automation for object detection
- Quality control in manufacturing
- UV light sensing in production lines
- Integration in automated inspection systems
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
- Complies with AS/NZS 3820 – Essential Safety Requirements for Electrical Equipment
Environmental Benefits
- Low power consumption with efficient LED technology
- Durable ABS housing reduces material waste
- Long operational life reduces replacement frequency
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK's official warranty policy for details.
Available Now
The SICK LUTM-UP817A1P UV LED Sensor with IO-Link is available for immediate purchase, ideal for industrial automation and quality control applications.
