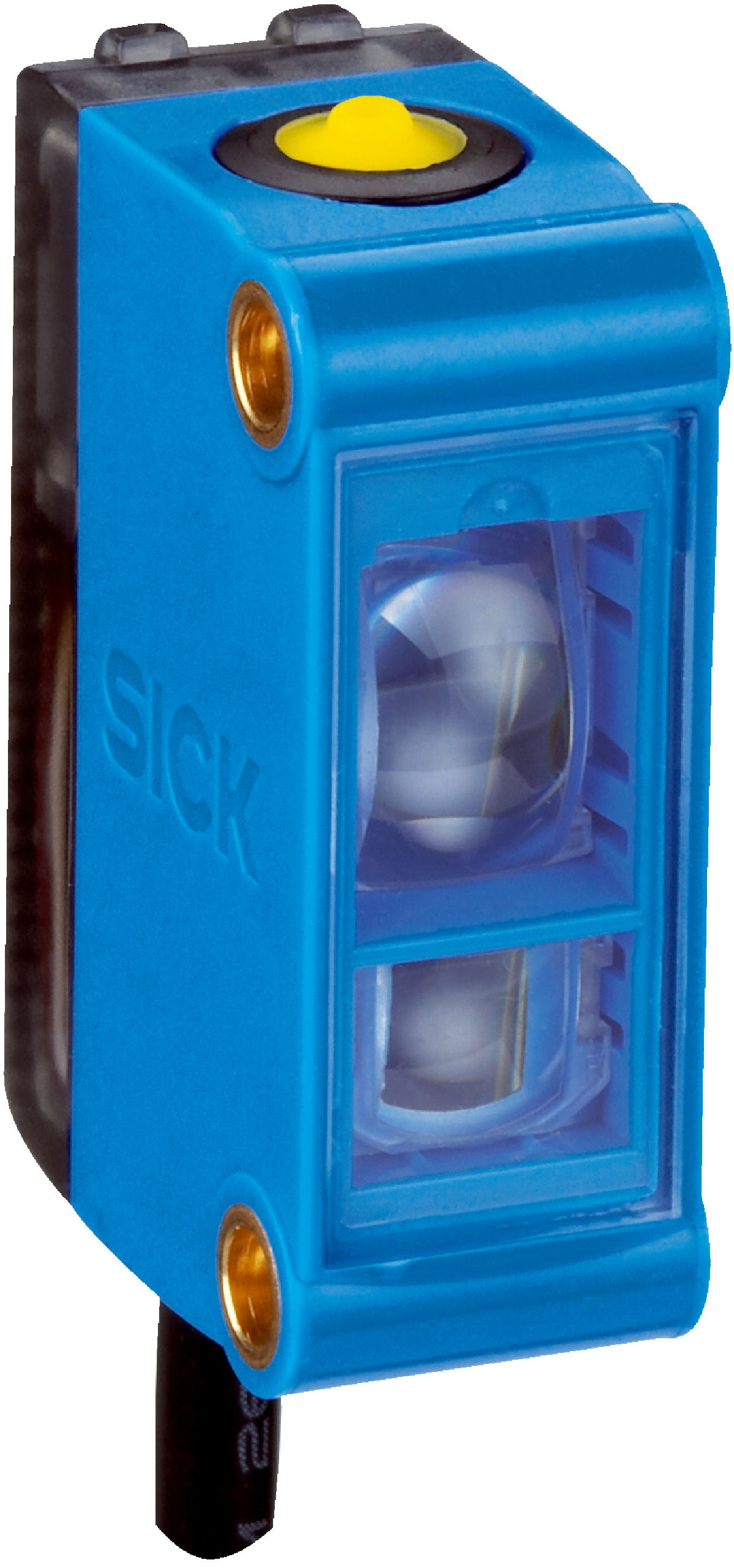

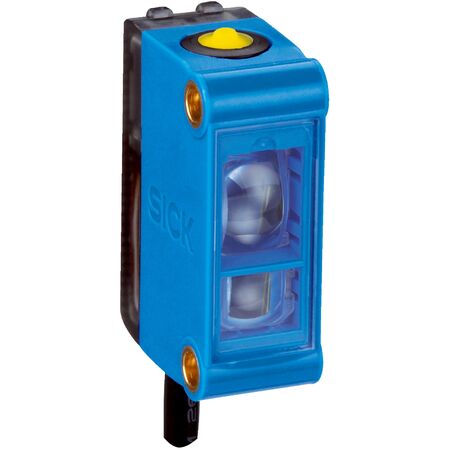

UV LED Sensor LUTM-UP817A2P | 370 nm Wavelength | IP67 Rated | Compact Design | by SICK
The LUTM-UP817A2P UV LED Sensor is designed for precise object detection in industrial automation, featuring a 370 nm wavelength light source and a sensing distance of up to 12.5 mm. With an IP67 rated enclosure for dust and water protection, this compact sensor is perfect for quality control applications, ensuring reliable performance in challenging environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Sensing distance: ≤ 12.5 mm
- Working range: 8 mm to 20 mm
- Light source: LED, UV at 370 nm wavelength
- Light emission: Long side, vertical light spot direction
- Light spot size: 2 mm x 2.5 mm
- Receiving range: 450 nm to 750 nm
- Supply voltage: 12 V DC to 24 V DC
- Current consumption: ≤ 50 mA
- Switching frequency: 6 kHz
- Response time: 80 µs
- Output: PNP light/dark switching
- Connection: Cable with M12 male connector, 4-pin, 0.2 m
- Protection class: III
- Enclosure rating: IP67
- Housing material: ABS
- Operating temperature: -10 °C to +55 °C
- Storage temperature: -20 °C to +75 °C
- Communication: IO-Link V1.1
- Dimensions (H x L x W): 31.5mm x 21mm x 12mm
- Weight: 0.1 kg
Key Features
- Small housing design for compact installation
- Sensing distance up to 12.5 mm
- LED UV light source with 370 nm wavelength
- Light/dark switching output function
- IP67 rated enclosure for dust and water protection
- IO-Link communication interface for advanced data exchange
- 2-point teach-in mode for static and dynamic applications
- Short response time of 80 µs and switching frequency of 6 kHz
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with IO-Link sensor integration and electrical safety standards.
Applications
- Industrial automation for object detection
- Quality control in manufacturing
- UV light sensing in production lines
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Energy-efficient LED UV light source reduces power consumption
- Durable ABS housing extends product lifespan, reducing waste
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK's official warranty policy for details.
Available Now
The SICK LUTM-UP817A2P UV LED Sensor with IO-Link is available for immediate purchase, ideal for industrial automation and quality control applications.
