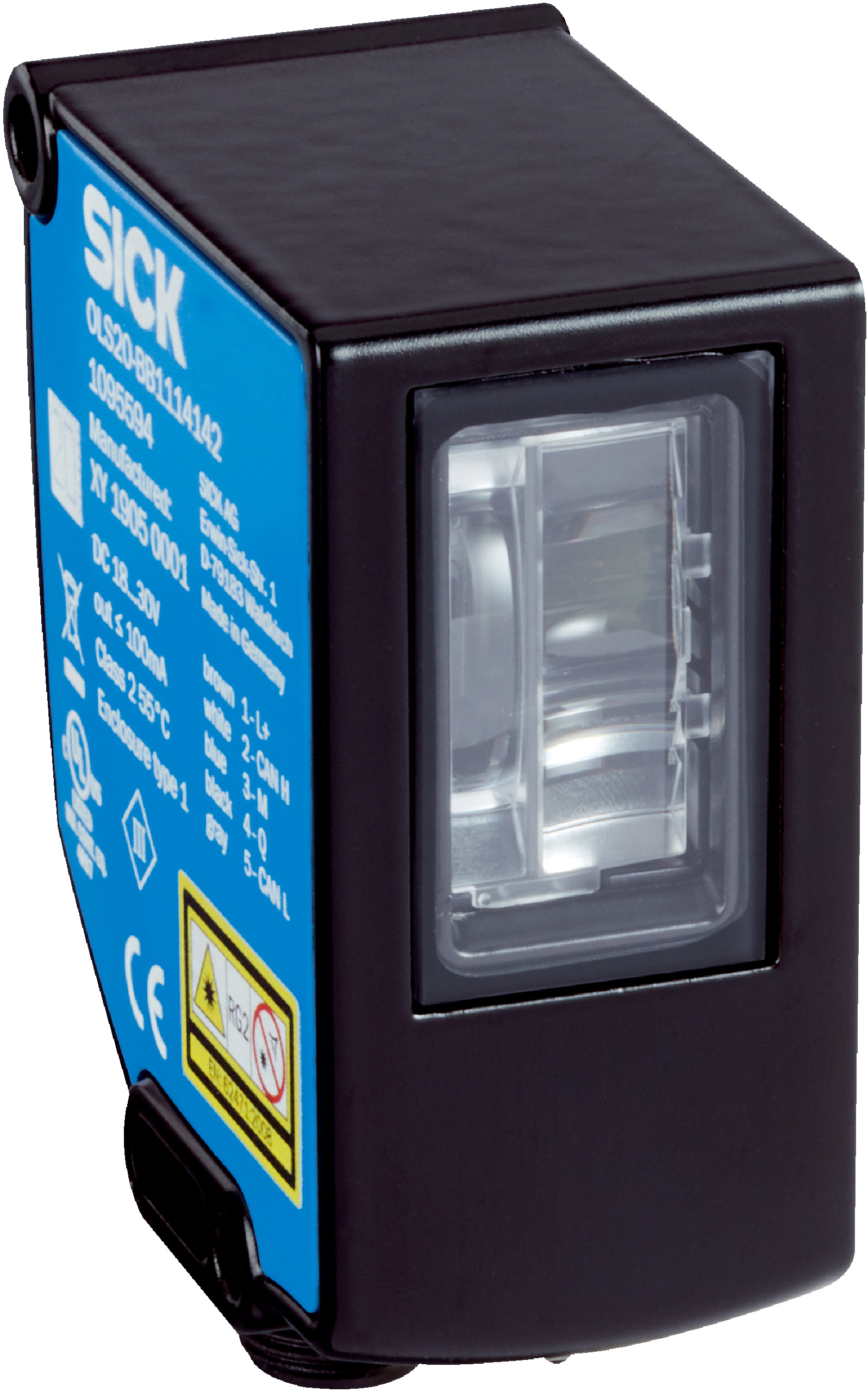

UV LED Sensor OLS20-UB1118140 | IP67 Rated | 385 nm Wavelength | Supports IO-Link & Modbus | by SICK
The UV LED Sensor OLS20-UB1118140 is designed for industrial automation, featuring a sensing distance of up to 100 mm and a UV light source at 385 nm. Ideal for barcode scanning and object detection, this sensor supports IO-Link and Modbus communication, ensuring reliable performance in manufacturing environments. With its robust IP67 enclosure and low power consumption, it enhances process efficiency while maintaining safety standards.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Sensing distance: ≤ 100 mm with ±10 mm tolerance
- Working range: 90 mm to 110 mm
- Light source: LED, UV at 385 nm wavelength
- Light spot size: 180 mm x 9 mm
- Receiving filters: 420 to 750 nm
- Barcode types supported: Interleaved 2 of 5
- Module width minimum: ≥ 1.5 mm
- Line radius minimum: ≥ 0.5 m
- Track colors: Orange, green, yellow
- Supply voltage: 18 V DC to 30 V DC
- Power consumption: < 3 W
- Sampling rate: 10 ms
- Switching output: Push-pull PNP/NPN, max output current < 100 mA
- Protection class: III
- Circuit protection: Reverse polarity, short-circuit, interference pulse suppression
- Connection type: Plug, M12, 5-pin
- Operating temperature: -10 °C to +55 °C
- Storage temperature: -25 °C to +75 °C
- Enclosure rating: IP67
- Safety parameters MTTFD: 271 years
- Communication interfaces: IO-Link COM3 (230.4 kBaud), Modbus RTU RS-485
- Cycle time: 5 ms
- Process data length: 21 Byte Process Data In
- Dimensions (H x L x W): 62mm x 52.5mm x 31mm
- Weight: 0.25 kg
Key Features
- Rectangular zinc diecast housing with IP67 enclosure rating
- Sensing distance up to 100 mm with ±10 mm tolerance
- UV LED light source with 385 nm wavelength
- Supports IO-Link and Modbus RTU RS-485 communication
- Push-pull PNP/NPN switching output with <100 mA max current
- High ambient light immunity up to 50,000 lx
- LED risk group 2 compliant (IEC 62471)
- Reverse polarity and short-circuit protected outputs
Professional Installation Requirements
- Installation by a qualified technician or electrician is recommended to ensure proper connection and compliance with electrical safety standards.
Applications
- Industrial automation for barcode scanning
- Object detection with UV LED light source
- Safety-related sensing in manufacturing
- Process control with digital output and communication interfaces
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
- Complies with AS/NZS 3820 – Essential Safety Requirements for Electrical Equipment
Environmental Benefits
- Low power consumption under 3 W reduces energy usage
- Durable zinc diecast housing extends product lifespan, reducing waste
- High ambient light immunity minimizes false readings, improving process efficiency
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for specific terms.
Available Now
The SICK OLS20-UB1118140 UV LED Sensor is available for immediate purchase, ideal for industrial automation and safety applications requiring precise barcode detection and communication capabilities.
