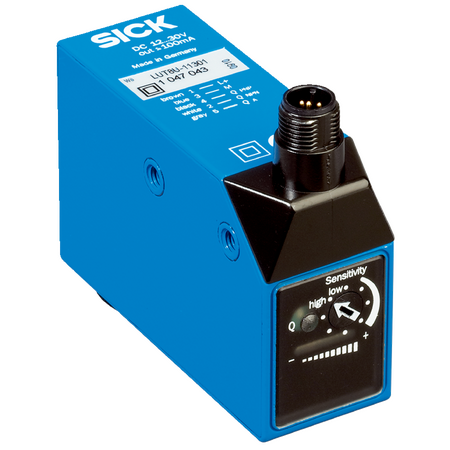

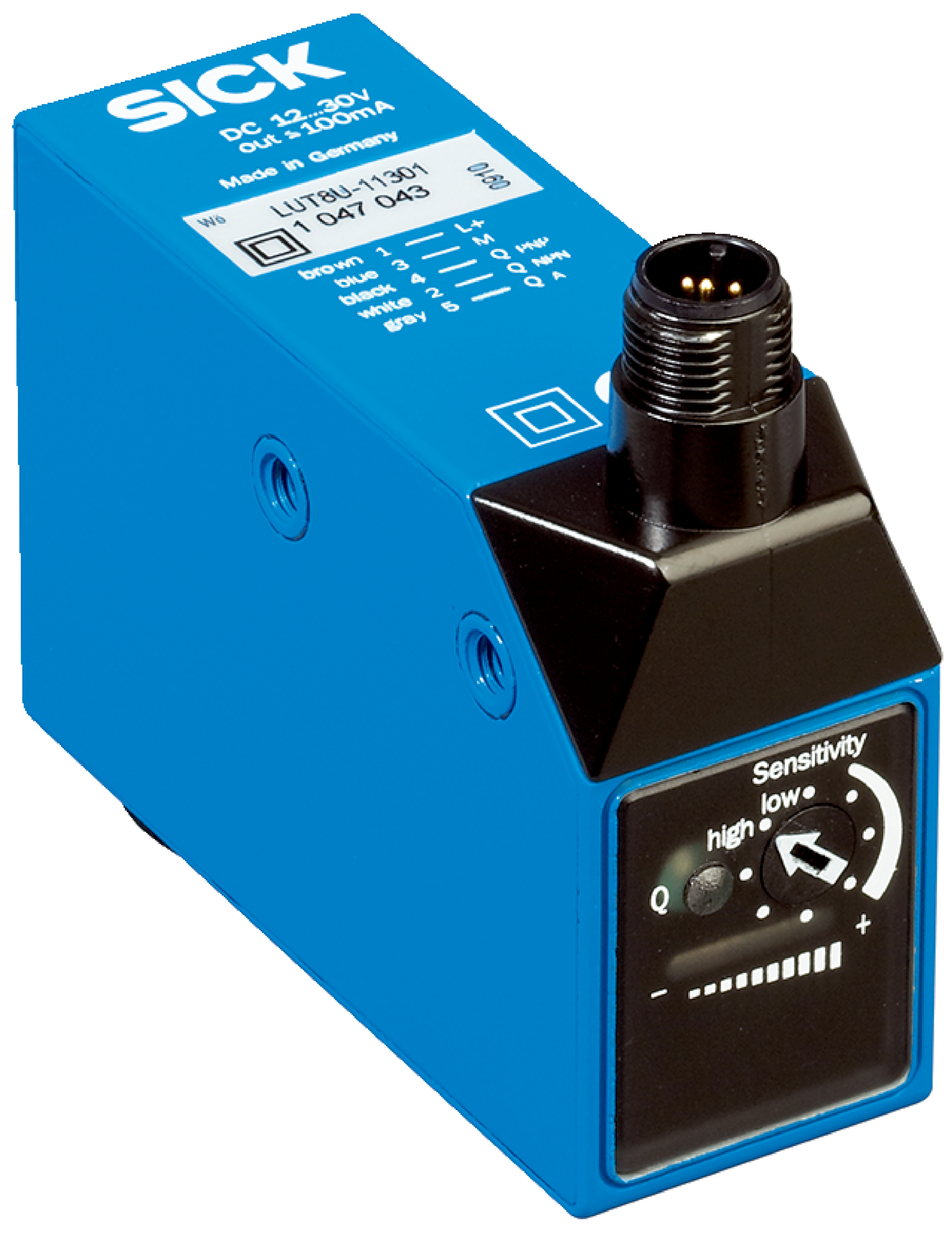

UV LED Sensor SICK LUT8U-11701 | 375 nm Wavelength | IP67 Rated | High Switching Frequency | by SICK
The UV LED Sensor SICK LUT8U-11701 features a 375 nm ultraviolet light source, perfect for industrial automation and quality control applications. With a robust IP67 rated enclosure and a high switching frequency of 2.5 kHz, this sensor ensures reliable performance in various environments. Its durable zinc diecast housing and low power consumption make it an eco-friendly choice for object detection and UV light sensing.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: UV LED Sensor, Ultraviolet Light Sensor, SICK LUT8U Sensor
Technical Specifications
- Supply voltage: 12 V DC to 30 V DC
- Current consumption: < 100 mA
- Switching frequency: 2.5 kHz
- Response time: 200 µs
- Light source: LED, Ultraviolet light at 375 nm wavelength
- Light spot size: Ø 6 mm
- Sensing distance: ≤ 50 mm
- Receiving filters: ≤ 420 nm
- Output function: Light switching with PNP and NPN switching outputs
- Analog output: 0 mA to 13 mA
- Protection class: II
- Enclosure rating: IP67
- Connection type: Plug, M12, 5-pin
- Housing material: Zinc diecast
- Operating temperature range: -10 °C to +55 °C
- Storage temperature range: -25 °C to +75 °C
- Dimensions (H x L x W): 53mm x 80mm x 30.4mm
- Weight: 0.4 kg
Key Features
- Large zinc diecast housing for durability
- Ultraviolet LED light source with 375 nm wavelength
- Light emission from the long side with a 6 mm diameter light spot
- Manual adjustment via rotary switch
- High switching frequency of 2.5 kHz
- IP67 rated enclosure for dust and water protection
- Plug M12, 5-pin connection
- Protection class II with reverse polarity and short-circuit protection
Professional Installation Requirements
- Installation should be performed by a qualified electrician or technician familiar with industrial sensor systems to ensure proper wiring and safety compliance.
Applications
- Industrial automation for object detection
- Quality control in manufacturing
- UV light sensing in various environments
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Low power consumption with less than 100 mA current draw
- Durable housing reduces replacement frequency and waste
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK's official warranty policy for details.
Available Now
The SICK LUT8U-11701 Ultraviolet LED Sensor is available for immediate purchase, ideal for industrial automation and quality control applications.
