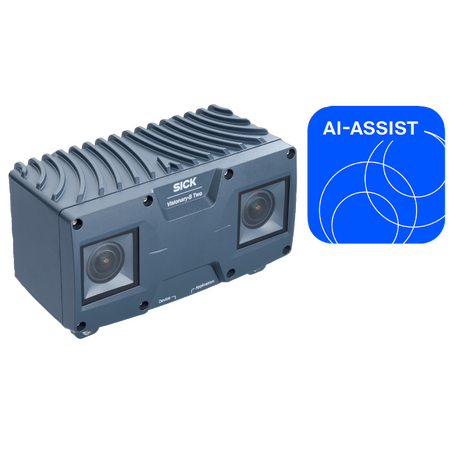

V3S146-1ABBBCA | Machine vision

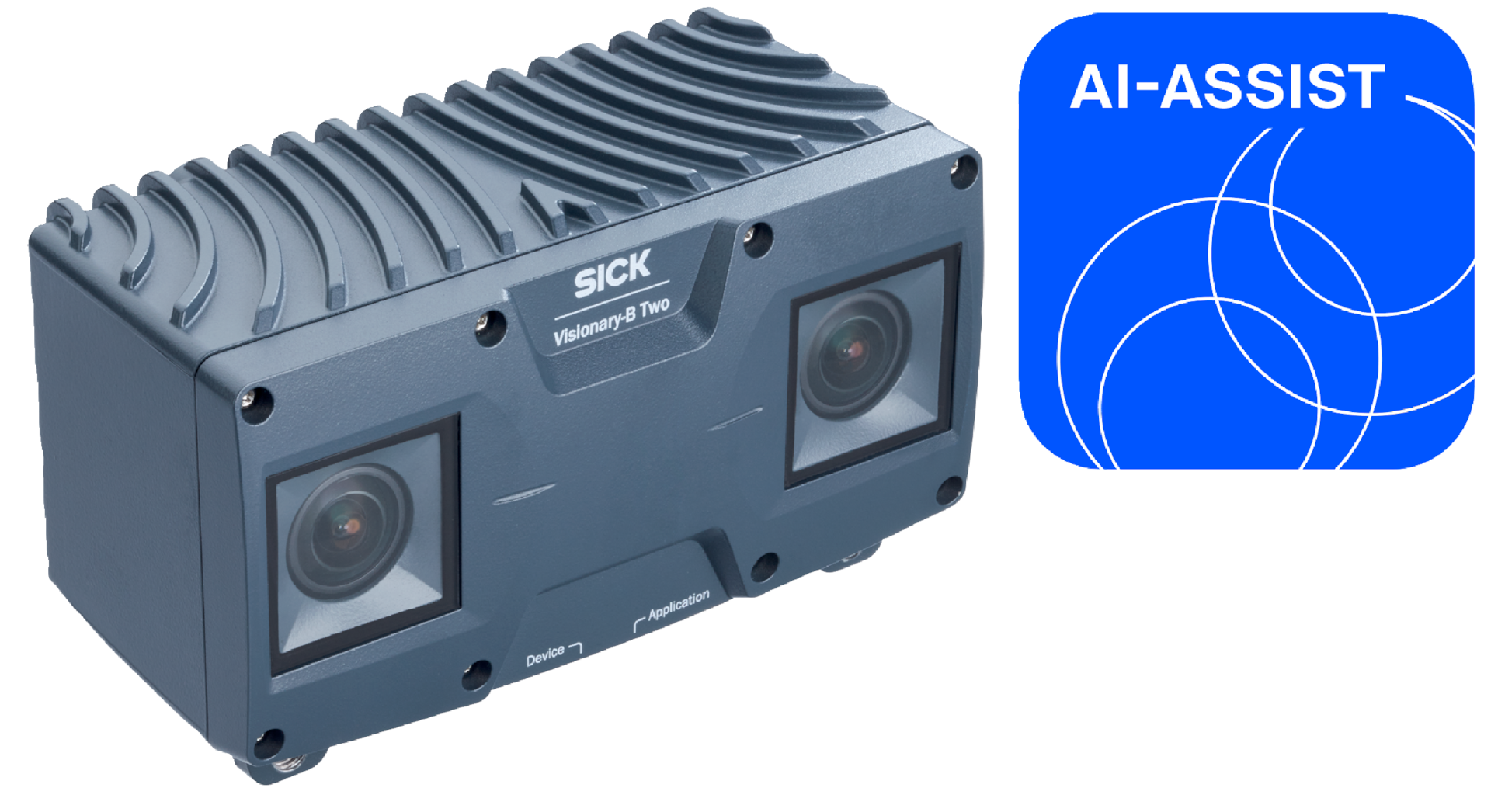

The SICK V3S146-1ABBBCA is a robust 3D snapshot stereoscopy machine vision sensor with integrated AI-Assist software, designed for detecting and protecting people and objects in industrial and outdoor applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: V3S146-1ABBBCA | Machine vision
Brand: SICK
SKU: 1144257
Alternatively Known As: 3D Machine Vision Sensor, AI-Assist Vision Sensor, SICK 3D Snapshot Camera, Industrial 3D Vision Sensor
Technical Specifications
- Technology: 3D snapshot stereoscopy
- Configurable field of view: wide 130° x 105°, narrow 90° x 60°
- Working range: 0.28 m to 37 m depending on configuration
- Exposure mode: Automatic single or multiple (HDR)
- Detectable objects: All objects including people
- Classified objects: Persons
- AI accelerator: Hailo-8
- Sensor resolution: 1024 px x 576 px
- Scan/frame rate: up to 18 fps
- Measurement accuracy: ±2 mm up to 5 m, ±35 mm up to 4 m, ±850 mm up to 20 m
- Repeatability: ±0.6 mm up to 5 m, ±6 mm up to 4 m, ±260 mm up to 20 m
- Power supply: 10 V DC to 57 V DC
- Power consumption: Typical 19.5 W
- Enclosure rating: IP67, IP69, IPX9K
- Protection class: III
- Connection types: M12 17-pin power/I/O, M12 8-pin Gigabit Ethernet
- Operating temperature: -40 °C to +55 °C
- Shock resistance: 100 g, 6 ms
- Vibration resistance: 5 g, 10 Hz to 500 Hz
- Dimensions (H x L x W): 79.3mm x 162mm x 96.6mm
- Weight: 1.5 kg
Key Features
- 3D snapshot stereoscopy technology with configurable field of view (wide 130° x 105°, narrow 90° x 60°)
- Integrated AI-Assist software for detecting people and objects
- Working range from 0.28 m up to 37 m depending on configuration
- Automatic exposure mode with single or multiple HDR
- High sensor resolution of 1024 px x 576 px with Hailo-8 AI accelerator
- IP67, IP69, IPX9K rated robust housing for harsh environments
- Multiple communication interfaces including Gigabit Ethernet, CAN, REST API
- Configurable digital inputs/outputs with debouncing and logic operators
- Operating temperature range from -40 °C to +55 °C
- Shock resistance up to 100 g and vibration resistance compliant with IEC standards
Professional Installation Requirements
- Installation and configuration should be performed by qualified professionals familiar with industrial machine vision systems and electrical safety standards.
Applications
- Detecting and protecting people and objects in industrial and outdoor environments
- 3D position determination for vehicles and standard objects
- Use in agricultural, forestry, earth-moving, and building construction machinery
- Industrial trucks monitoring and safety
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
- AS/NZS 3112 – Plugs and Socket-Outlets (Type I Plug)
- AS/NZS 3820 – Essential Safety Requirements for Electrical Equipment
Environmental Benefits
- Enables safer operation of machinery reducing accidents and environmental hazards
- Robust IP67/IP69 rated housing extends product life reducing waste
- Energy-efficient operation with low power consumption (typ. 19.5 W)
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for specific warranty terms.
Available Now
The SICK V3S146-1ABBBCA machine vision sensor is available for immediate purchase, ideal for industrial safety, automation, and outdoor object detection applications.
