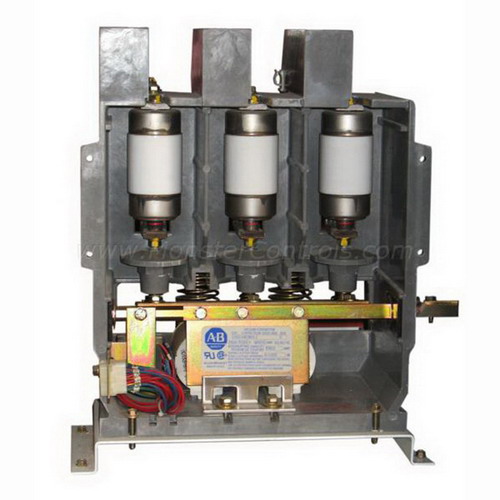

Product Name/Title: Allen-Bradley 1502VC8DXDA1 Vacuum Contactor 800 Amp
Brand: Allen-Bradley
SKU: 1502VC8DXDA1
Alternatively Known As: Allen-Bradley Vacuum Contactor 1502VC8DXDA1, IntelliVac Vacuum Contactor, 800 Amp Vacuum Contactor
Technical Specifications
- Contactor Type: Vacuum
- Control: IntelliVac
- Current Rating: 800 Amp
- Insulation Level: 60 kV BIL / 20 kVAC
- Coil Voltage: 110 VDC
- Poles: 3 Pole, electrically held
- Interrupting Capacity: 12,000 Amp
- Altitude Rating: 0-1000 meters (0-3300 feet)
- Dimensions (H x L x W): 300mm x 250mm x 200mm
- Weight: 15 kg
Key Features
- Vacuum contactor with IntelliVac control
- 800 Amp size suitable for high current applications
- 60 kV BIL / 20 kVAC insulation level for high voltage protection
- 110 VDC coil voltage
- 3 pole electrically held design
- Interrupting capacity of 12,000 Amp
- Altitude rating from 0 to 1000 meters (0-3300 feet)
Professional Installation Requirements
- Installation must be performed by a qualified electrician experienced with high current vacuum contactors to ensure safety and compliance with electrical standards.
Applications
- Industrial motor control
- Heavy machinery electrical switching
- High power electrical circuits requiring vacuum contactors
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Vacuum contactors reduce arcing and electrical wear, extending equipment life and reducing waste.
- High efficiency switching reduces energy loss during operation.
Warranty Information
Radwell 2-year warranty included. Factory warranty does not apply.
Available Now
The Allen-Bradley 1502VC8DXDA1 Vacuum Contactor is available for immediate purchase, ideal for industrial and heavy electrical applications requiring reliable high current switching.
