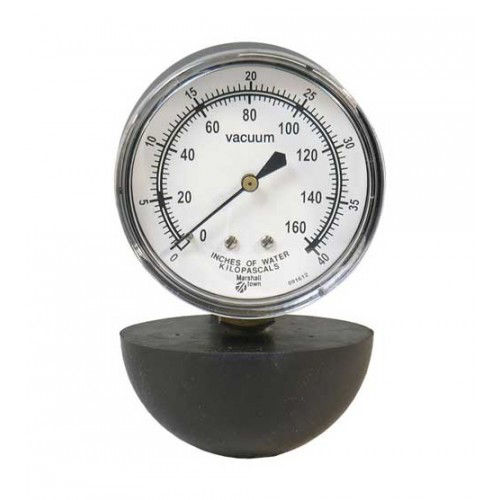

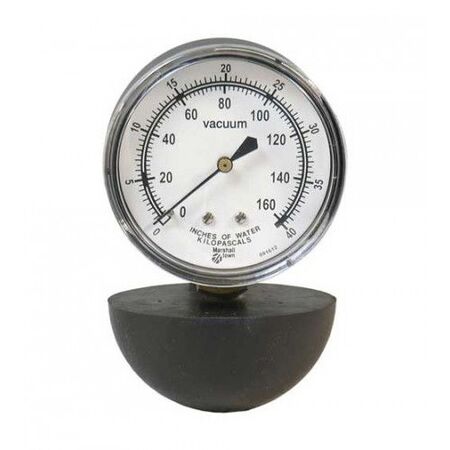

Vacuum Gauge 2-1/2 Inch Dial Dual Scale Valet

BRAND: Ness
SKU: VAC-102
$375.00 List price: $499.90
+ −
30 Days Return Electricians Unlock Trade Access
Valet vacuum gauge features a 2-1/2 inch dial and dual scale in H2O and kPa. Ideal for testing central vacuum systems.

Alternatively Known As: Valet VAC-102 Vacuum Gauge, Central Vacuum Suction Gauge, Water Lift Gauge

Technical Specifications
  • Model: VAC-102
  • Dial Size: 2-1/2 inch
  • Scale: Dual scale inH2O and kPa vacuum
  • Included Accessory: Rubber plug for fitting the vacuum cleaner intake opening
  • Intended Use: Central vacuum system suction testing
  • Dimensions (H x L x W): 64mm x 45mm x 64mm
  • Weight: 0.25 kg
Key Features
  • 2-1/2 inch analogue dial for clear reading
  • Dual inH2O and kPa vacuum scales
  • Supplied with rubber intake-opening plug
  • Designed for testing central vacuum systems
  • No batteries or external power required
Applications
  • Testing central vacuum power units
  • Checking suction at central vacuum cleaner intake points
  • Diagnosing performance issues in domestic and light-commercial ducted vacuum systems
Standards & Compliance
  • AS 1349-1986 (R2018) is the relevant Australian reference for Bourdon tube pressure and vacuum gauges; Valet does not publish a compliance claim for this product. ([codehub.building.govt.nz](https://codehub.building.govt.nz/resources/as-1349-1986?utm_source=openai))
Environmental Benefits
  • Reusable mechanical instrument with no battery requirement, reducing electronic battery waste
  • Durable service tool that can support maintenance and extend the operating life of central vacuum equipment
Warranty Information

Valet publishes a five-year parts warranty for central vacuum power units, with an additional one-year warranty available on registration; a separate warranty period for the VAC-102 gauge is not stated. ([valet.com.au](https://valet.com.au/products/product/vac-102?utm_source=openai))

Available Now

Available through Valet and authorised Australian central vacuum distributors. ([valet.com.au](https://valet.com.au/products/product/vac-102?utm_source=openai))
