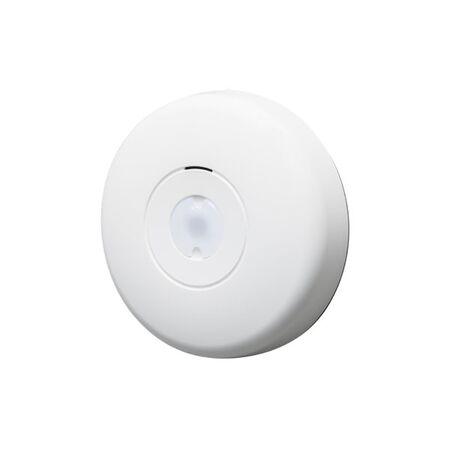

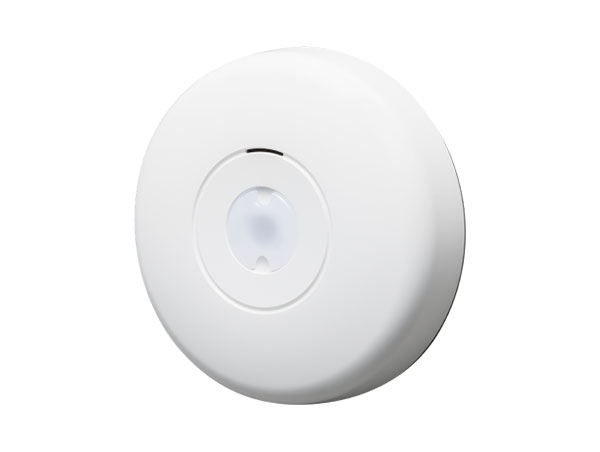

Vape Sensor Takex Ness

BRAND: Ness
SKU: 106-475
$843.90 List price: $1,125.20
+ −
30 Days Return Electricians Unlock Trade Access
Ness vape sensor features Takex VS-1000E detection for vaping. Ideal for alarm system and security installs.

Alternatively Known As: Takex VS-1000E Vape and Smoking Sensor, Vape Detection Sensor, Smoking Detection Sensor

Technical Specifications
  • Model: VS-1000E
  • Supply Voltage: 10.5–28 V DC, non-polarity
  • Current Consumption: 85 mA maximum
  • Alarm Output: Solid-state relay, N.C./N.O. selectable
  • Alarm Contact Capacity: 30 V AC/DC, 0.2 A resistive load
  • Tamper Output: N.C. dry-contact relay
  • Tamper Contact Capacity: 30 V AC/DC, 0.1 A resistive load
  • Alarm Operation: One-shot approximately 2 seconds or detecting-time output
  • Detection Sensitivity: Standard or low selectable
  • Buzzer: Disable, 10 seconds, 30 seconds or continuous
  • Operating Temperature: 0°C to +50°C, non-condensing
  • Mounting Position: Indoor ceiling or wall
  • Housing: Resin body with white body and black base
  • Detection Classification: Vape and smoking sensor; not fire-alarm equipment
  • Dimensions (H x L x W): 41mm x 137mm x 137mm
  • Weight: 0.21 kg
Key Features
  • Detects airborne particles associated with vaping and smoking
  • Adjustable standard and low detection sensitivity
  • Selectable normally open or normally closed alarm output
  • Built-in sounder and red alarm LED
  • Self-diagnosis for voltage abnormalities and module faults
  • Tamper-resistant cover locking mechanism
  • Screwless terminals for simplified wiring
  • Suitable for connection to existing alarm and security systems
  • Ceiling or wall mounting
  • Can be interconnected with multiple units
Professional Installation Requirements
  • Installation should be carried out by a suitably qualified security or alarm technician in accordance with the Takex installation manual. The sensor requires low-voltage DC wiring and connection to an alarm system; any mains-voltage power-supply work must be performed by a licensed electrician where required.
Applications
  • Schools, colleges and education facilities
  • Public and commercial restrooms
  • Security and alarm system installations
  • Vaping and smoking detection in indoor commercial premises
  • Facilities requiring relay-based integration with existing alarm panels
Environmental Benefits
  • Low-voltage 10.5–28 V DC operation and 85 mA maximum current consumption support relatively low operating energy demand
  • Relay-based integration with existing alarm systems can avoid the need for separate monitoring hardware
  • Reusable indoor sensor design may reduce replacement and electronic waste over the product service life
Warranty Information

Ness Corporation’s general warranty for Ness manufactured or supplied products is 3 years from the date of purchase unless otherwise specified. The Takex manufacturer datasheet states a 12-month warranty from the original date of shipment; confirm the applicable warranty with the supplying distributor.

Available Now

Available through Ness and authorised Australian security and alarm-system distributors.
