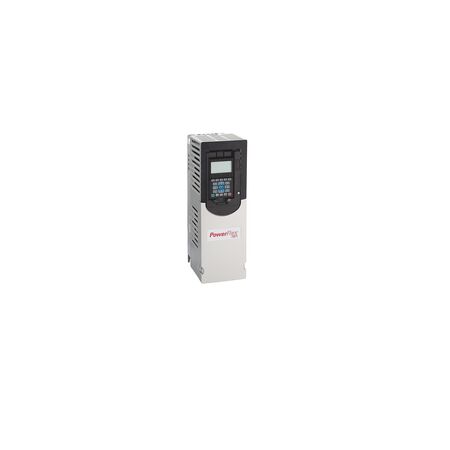

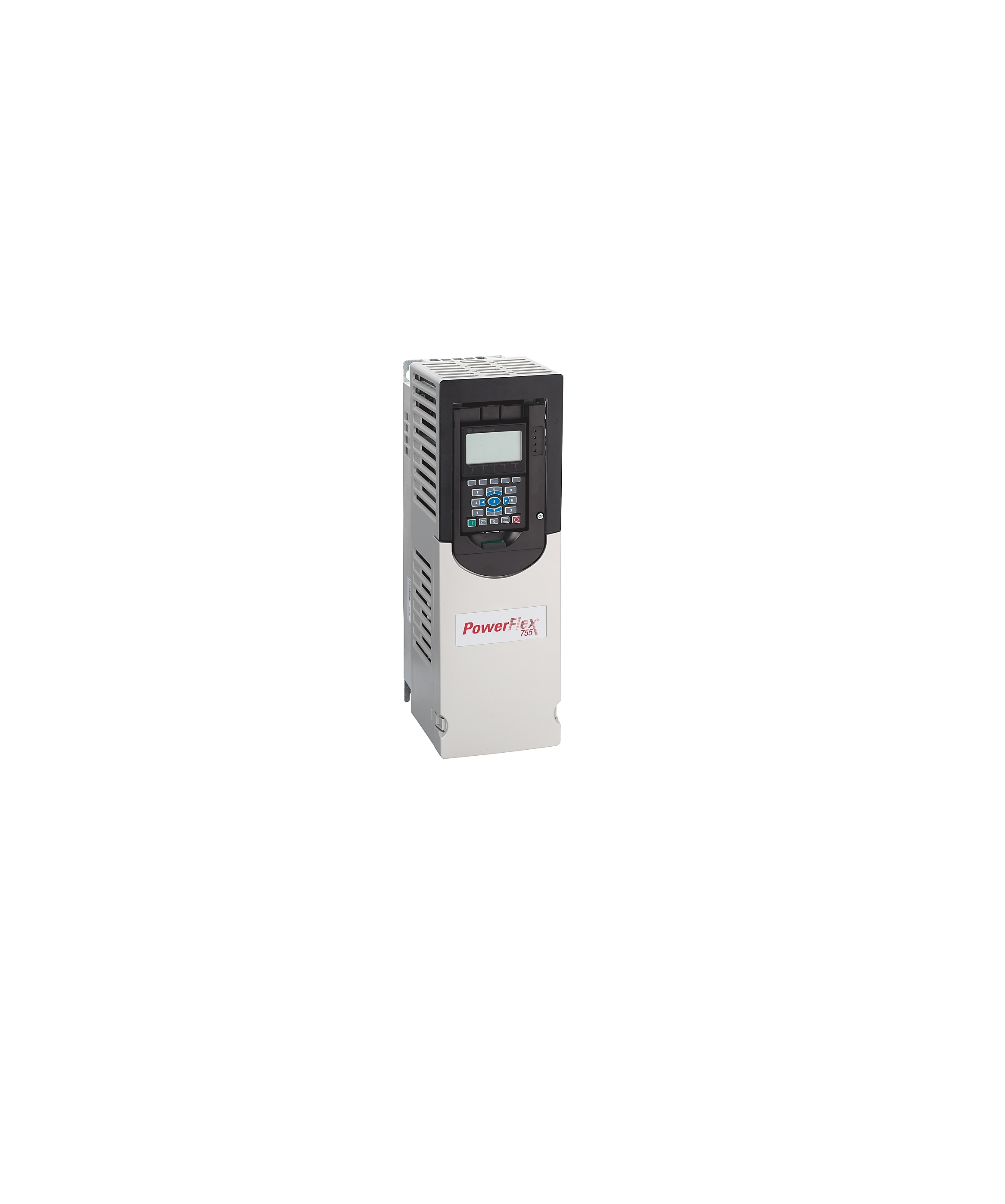

Variable Frequency Drive 0.75kW | 400 VAC | Embedded Ethernet/IP & Forced Air Cooling | Frame 2 by Allen-Bradley
Variable frequency drive with 0.75kW power and 400 VAC voltage—ideal for industrial motor control and automation systems. Built for efficiency, featuring embedded Ethernet/IP for network communication and forced air cooling for optimal performance.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Variable Frequency Drive 0.75kW | 400 VAC | Embedded Ethernet/IP & Forced Air Cooling | Frame 2 by Allen-Bradley
Brand: Allen-Bradley
SKU: 20G11NC2P1JA0NNNNN
Alternatively Known As: PowerFlex 755 VFD, Allen Bradley Variable Frequency Drive, 0.75kW AC Drive
Technical Specifications
- Power: 0.75 kW
- Current: 2.1 Amps
- Voltage: 400 VAC, 3 Phase
- Frame: 2
- Input: AC with DC terminals
- Cooling: Forced air
- Protection: Standard
- Communication: Embedded Ethernet/IP
- Filtered input with CM jumper installed
- Output: DB Transistor
- No Human Interface Module (HIM)
- Dimensions (H x L x W): 250mm x 200mm x 150mm
- Weight: 5 kg
Key Features
- Embedded Ethernet/IP for network communication
- Standard protection with forced air cooling
- AC input with DC terminals
- Open type enclosure
- Filtered input with CM jumper installed
- DB Transistor output
- Frame 2 size
- No Human Interface Module (HIM) included
Professional Installation Requirements
- Installation by a qualified electrician or automation specialist is required to ensure compliance with electrical standards and optimal performance.
Applications
- Industrial motor control
- Automation systems
- Manufacturing processes requiring variable speed drives
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Energy-efficient motor control reduces power consumption
- Improves process efficiency and reduces waste
Warranty Information
1 year warranty against manufacturing defects.
Available Now
This product available now for immediate purchase.
