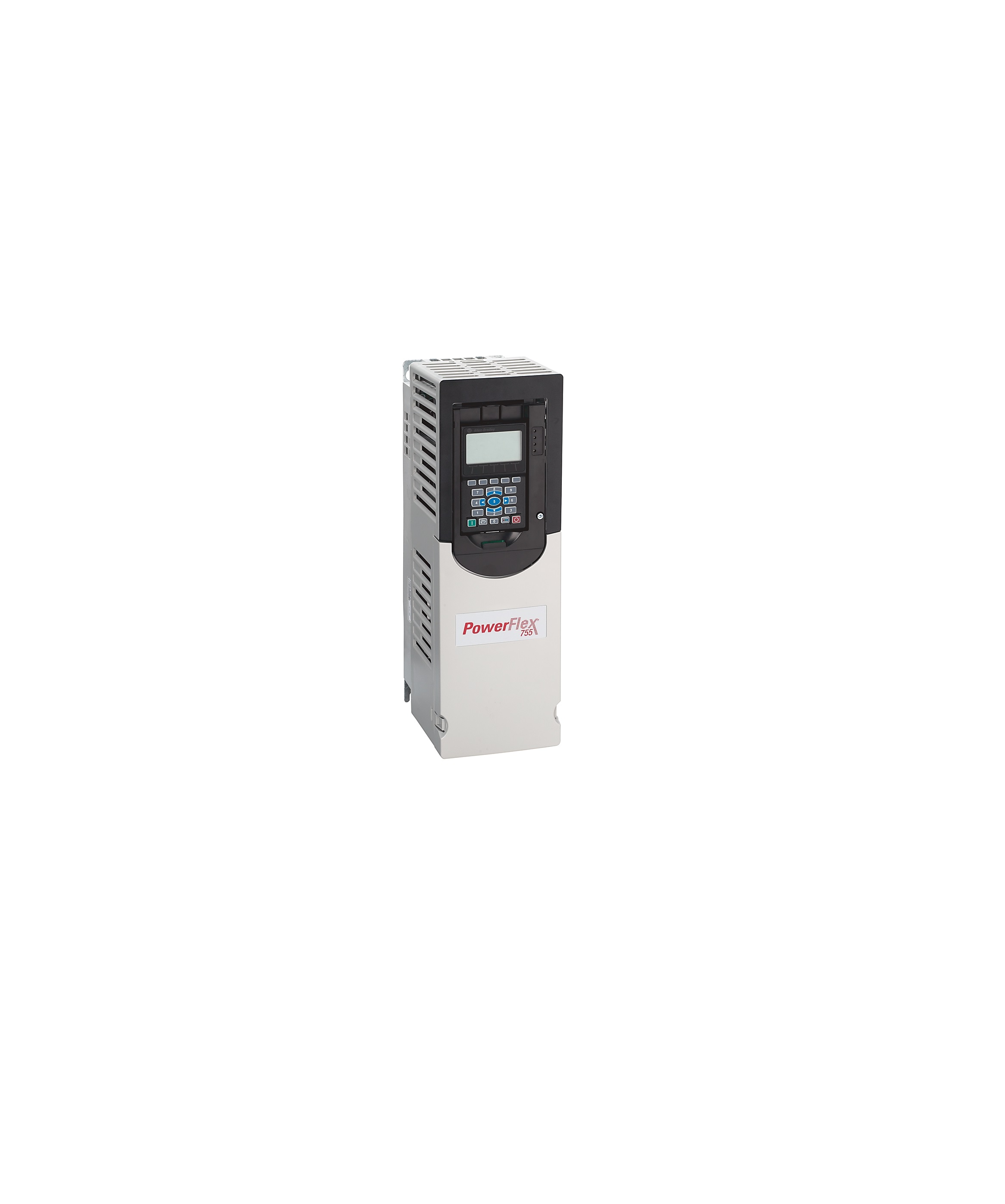

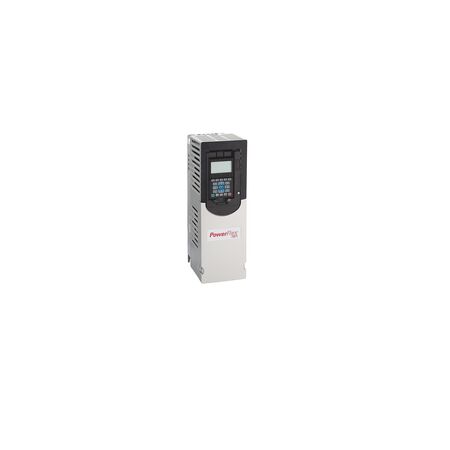

Variable Frequency Drive 1.5kW | 400 VAC | Ethernet/IP Integration & Forced Air Cooling | Open Type by Allen-Bradley
Variable frequency drive with 1.5kW power and 400 VAC voltage—ideal for industrial motor control and automation. Built for efficiency, featuring Ethernet/IP integration and forced air cooling for optimal performance.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Variable Frequency Drive 1.5kW | 400 VAC | Ethernet/IP Integration & Forced Air Cooling | Open Type by Allen-Bradley
Brand: Allen-Bradley
SKU: 20G11NC3P5JA0NNNNN
Alternatively Known As: PowerFlex 755 AC Drive, Allen Bradley VFD, 1.5kW Variable Frequency Drive, Ethernet/IP AC Drive
Technical Specifications
- Power: 1.5 kW
- Current: 3.5 Amps
- Voltage: 400 VAC, 3 Phase
- Frame Size: Frame 2
- Input Type: AC with DC terminals
- Cooling: Forced air
- Filtered input with CM jumper installed
- Output: DB transistor
- No Human Interface Module (HIM)
- Dimensions (H x L x W): 250mm x 200mm x 150mm
- Weight: 5 kg
Key Features
- Embedded Ethernet/IP for seamless network integration
- Standard protection with forced air cooling
- AC input with DC terminals
- Open type enclosure
- Filtered input with CM jumper installed
- DB transistor output
- No Human Interface Module (HIM) included
Professional Installation Requirements
- Installation by a qualified electrician or automation specialist is required to ensure compliance with electrical standards and optimal performance.
Applications
- Industrial motor control and automation
- Manufacturing process control
- Conveyor systems
- Pumps and fans
- HVAC systems
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
- AS/NZS 3820 – Essential Safety Requirements for Electrical Equipment
Environmental Benefits
- Energy-efficient motor control reduces power consumption
- Improves process efficiency and reduces waste
- Supports variable speed operation to optimize energy use
Warranty Information
1 year warranty against manufacturing defects.
Available Now
This product available now for immediate purchase.
