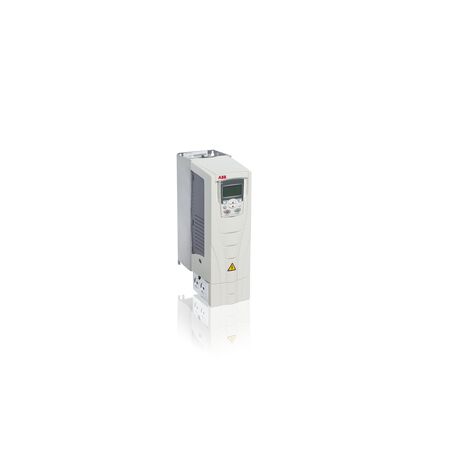

Variable Frequency Drive 11 kW | 3-Phase Input | IP21 Protection | Wall-Mounted by ABB
The 11 kW Variable Frequency Drive is designed for efficient motor speed control, featuring 3-phase input and IP21 protection. Ideal for industrial applications like pumps and conveyor systems, it optimizes energy use and extends equipment life.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Variable Frequency Drive 11 kW | 3-Phase Input | IP21 Protection | Wall-Mounted by ABB
Brand: ABB
SKU: ACS550-01-023A-4
Alternatively Known As: VFD 11 kW, Variable Frequency Drive 11kW, Motor Drive 11kW, Inverter Drive 11kW
Technical Specifications
- Number of Phases: 3
- Degree of Protection: IP21
- Enclosure Type NEMA: Type 1
- Frequency Range: 47.5 to 63 Hz
- Frame Size: R2
- Input Voltage (Uin): 380 to 480 V
- Output Current, Normal Use (In): 23 A
- Output Current, Heavy-Duty Use (IHD): 15.4 A
- Output Power, Normal Use (Pn): 11 kW
- Output Power, Heavy-Duty Use (PHD): 7.5 kW
- Efficiency Level: IE2
- Mounting Type: Wall-mounted
- Dimensions (H x L x W): 600mm x 250mm x 300mm
- Weight: 25 kg
Key Features
- 3-phase input power
- IP21 degree of protection
- Wall-mounted enclosure (NEMA Type 1)
- Wide frequency range: 47.5 to 63 Hz
- High efficiency level IE2
Professional Installation Requirements
- Installation by a qualified electrician is required to ensure compliance with electrical safety standards and optimal performance.
Applications
- Industrial motor speed control
- Pumps, fans, and conveyor systems
- Manufacturing and processing plants
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
- Complies with AS/NZS 3820 – Essential Safety Requirements for Electrical Equipment
Environmental Benefits
- Improves energy efficiency by optimizing motor speed and reducing power consumption
- Reduces mechanical stress on motors, extending equipment life and reducing waste
Warranty Information
1 year warranty covering manufacturing defects and performance issues.
Available Now
This product available now for immediate purchase.
