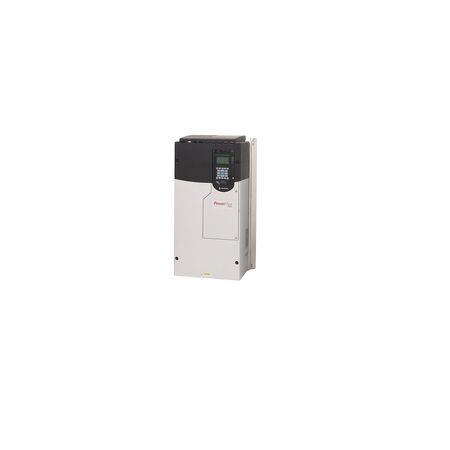

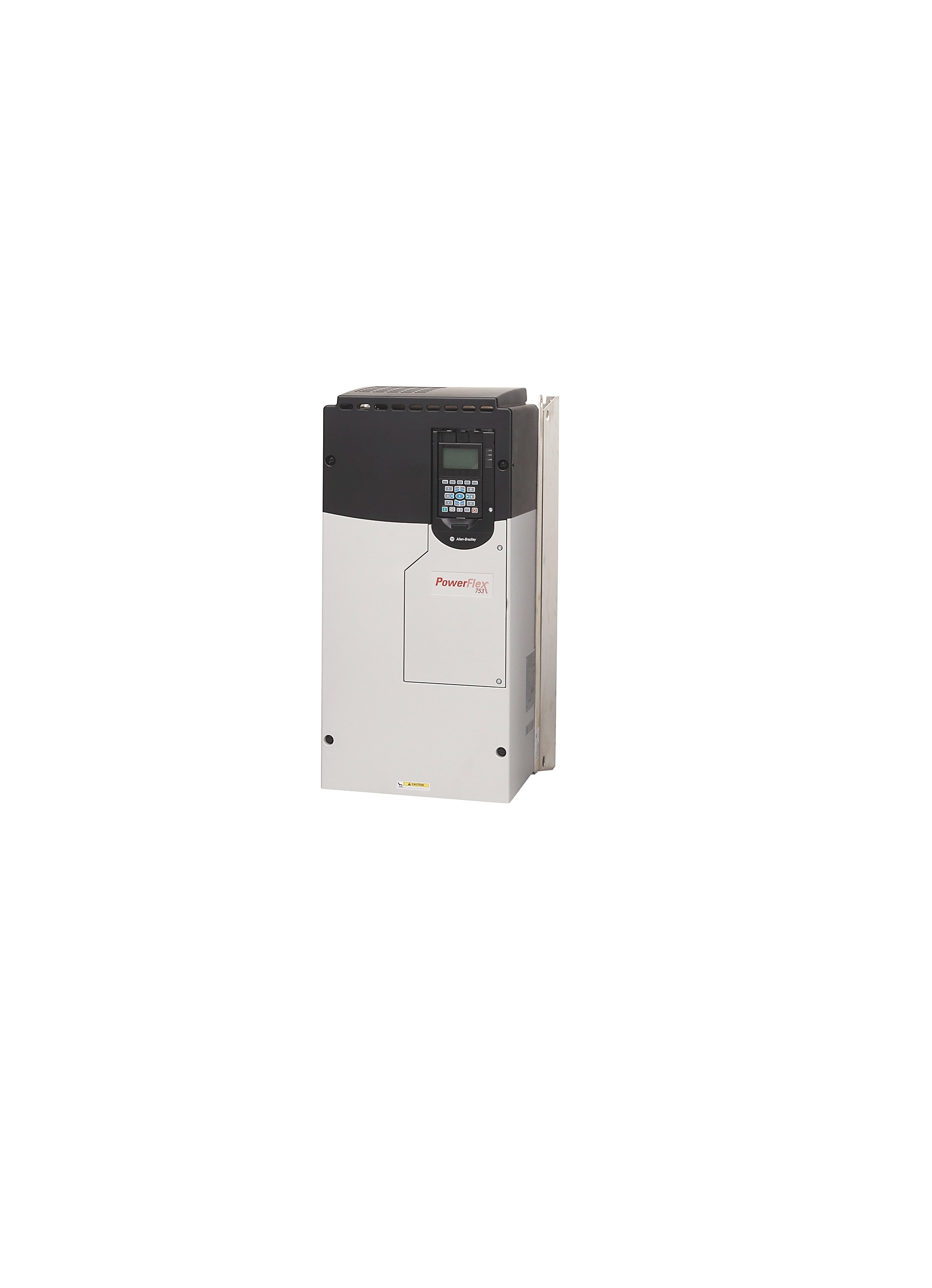

Variable Frequency Drive 132kW | 260 Amps Current Rating | Forced Air Cooling | Open Type by Allen-Bradley
Variable frequency drive with 132kW power rating and 260 Amps current—ideal for industrial motor control and automation. Built for manufacturing processes and HVAC systems, with forced air cooling and embedded I/O for flexible control.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Variable Frequency Drive 132kW | 260 Amps Current Rating | Forced Air Cooling | Open Type by Allen-Bradley
Brand: Allen-Bradley
SKU: 20F1ANC260JA0NNNNN
Alternatively Known As: PowerFlex 753 VFD, Allen Bradley VFD 132kW, 20F1ANC260JA0NNNNN AC Drive, Allen Bradley Variable Frequency Drive
Technical Specifications
- Power Rating: 132kW (Normal Duty), 110kW (Heavy Duty)
- Current Rating: 260 Amps
- Input Voltage: 400 VAC, 3 Phase
- Frame Size: 6
- Cooling: Forced Air
- Input Features: AC input with precharge, filtered input with CM jumper installed
- Output Stage: DB transistor
- Enclosure Type: Open type
- Embedded I/O included
- No DC terminals
- No Human Interface Module (HIM)
- Dimensions (H x L x W): 600mm x 400mm x 300mm
- Weight: 50 kg
Key Features
- Embedded I/O for flexible control
- Standard protection features
- Forced air cooling
- AC input with precharge
- No DC terminals
- Open type enclosure
- 260 Amps current rating
- Filtered input with CM jumper installed
- DB transistor output stage
- No Human Interface Module (HIM) included
Professional Installation Requirements
- Installation by a qualified electrician or automation specialist is required to ensure compliance with electrical standards and safe operation.
Applications
- Industrial motor control and automation
- Manufacturing process drives
- HVAC systems
- Pumps and fans control
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
- Complies with AS/NZS 3820 – Essential Safety Requirements for Electrical Equipment
Environmental Benefits
- Energy-efficient motor control reduces power consumption
- Improved process efficiency lowers environmental impact
Warranty Information
1 year limited warranty covering manufacturing defects and workmanship.
Available Now
This product available now for immediate purchase.
