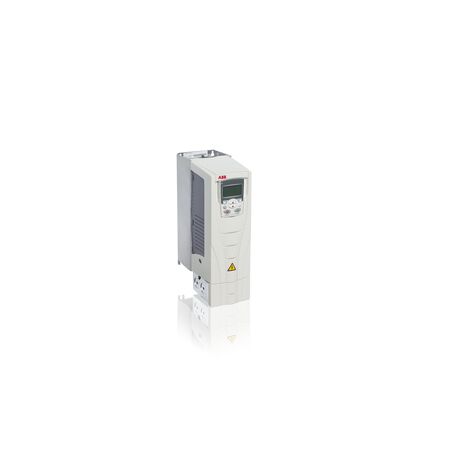

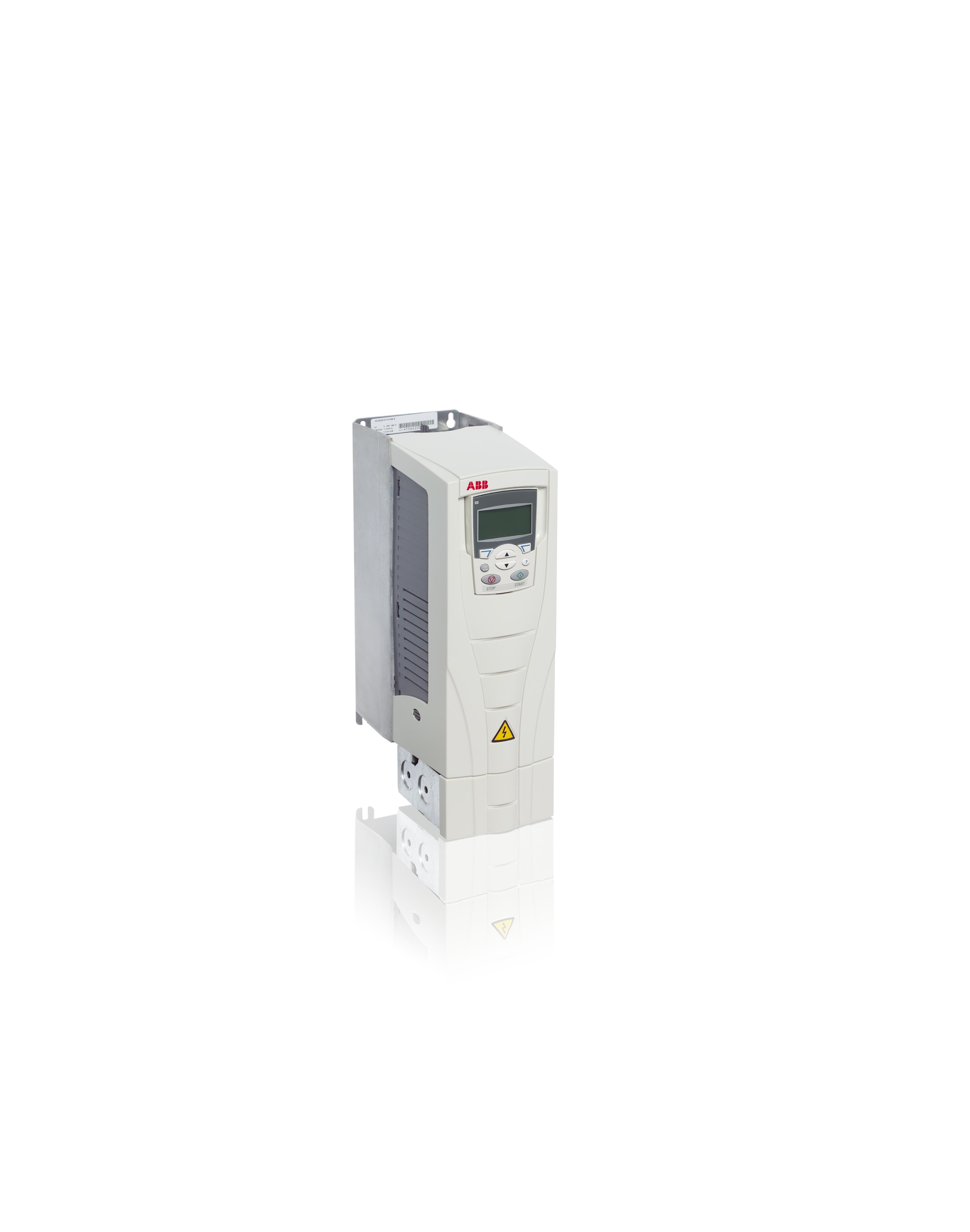

Variable Frequency Drive 2.2 kW | 3-Phase Input | IP21 Protection | Wall-Mounted by ABB
The 2.2 kW variable frequency drive is designed for efficient motor speed control, featuring a 3-phase input and IP21 protection. Ideal for industrial applications like pumps, fans, and HVAC systems, it optimizes energy use while extending equipment life.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Variable Frequency Drive 2.2 kW | 3-Phase Input | IP21 Protection | Wall-Mounted by ABB
Brand: ABB
SKU: ACS550-01-05A4-4
Alternatively Known As: Variable Frequency Drive, VFD, Inverter Drive, Motor Controller
Technical Specifications
- Number of Phases: 3
- Degree of Protection: IP21
- Enclosure Type NEMA: Type 1
- Frequency Range: 47.5 to 63 Hz
- Frame Size: R1
- Input Voltage: 380 to 480 V
- Mounting Type: Wall-mounted
- Output Current Normal Use: 5.4 A
- Output Current Heavy-Duty Use: 4.1 A
- Output Power Normal Use: 2.2 kW
- Output Power Heavy-Duty Use: 1.5 kW
- Efficiency Level: IE2
- Dimensions (H x L x W): 300mm x 200mm x 150mm
- Weight: 10 kg
Key Features
- 3-phase input
- IP21 degree of protection
- Wall-mounted Type 1 enclosure
- Wide frequency range 47.5 to 63 Hz
- High efficiency level IE2
Professional Installation Requirements
- Installation must be performed by a qualified electrician to ensure compliance with electrical safety standards and optimal operation.
Applications
- Industrial motor speed control
- Pumps and fans
- Conveyor systems
- HVAC systems
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Improves energy efficiency by optimizing motor speed and reducing power consumption
- Reduces mechanical stress on motors, extending equipment life and reducing waste
Warranty Information
1 year warranty covering manufacturing defects and performance issues.
Available Now
This product available now for immediate purchase.
