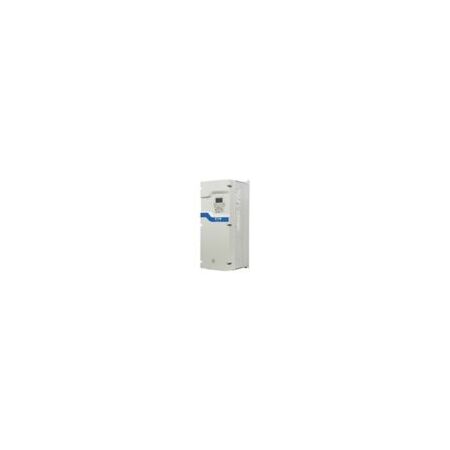

Variable Frequency Drive 30kW | 380-500V AC | IP54 Protection | Sensorless Vector Control by Eaton
Eaton's Variable Frequency Drive offers 30kW output power and operates at 380-500V AC, making it ideal for industrial motor speed control. Built for commercial and domestic applications, it features sensorless vector control and a temperature-controlled fan for efficient cooling.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Variable Frequency Drive 30kW | 380-500V AC | IP54 Protection | Sensorless Vector Control by Eaton
Brand: Eaton
SKU: Y7-9702-4103-00P
Alternatively Known As: Eaton DG1 VFD, Eaton Variable Frequency Drive 30kW, Eaton 3-phase VFD, DG1 400V Drive
Technical Specifications
- Input Voltage: 380-500 V AC, 3-phase
- Output Power: 30 kW (rated), 37 kW at 110% overload
- Output Current: 61 A nominal, 72 A at 110% overload
- Frequency Range: 0-400 Hz
- Control Modes: Sensorless vector control, U/f control, torque regulation
- Protection Class: IP54 / NEMA 12
- Communication Interfaces: CANopen, Modbus TCP, BACnet MS/TP, DeviceNet, Ethernet IP, Modbus RTU, PROFIBUS
- Cooling: Temperature-controlled fan
- Safety Function: Safe Torque Off (STO), SIL1, PLc Cat 1
- Efficiency: 98.3%
- Ambient Operating Temperature: -10°C to 50°C
- Altitude: Max 2000 m (with derating above 1000 m)
- Pollution Degree: 2
- Overvoltage Category: III
- Rated Frequency: 45-66 Hz
- Number of Inputs: 2 analog, 8 digital
- Number of Outputs: 2 analog, 1 digital, 3 relay outputs
- Dimensions (H x L x W): 630mm x 294mm x 238mm
- Weight: 35.2 kg
Key Features
- Temperature-controlled fan for efficient cooling
- Externally accessible fan for easy maintenance
- Parameterization via Fieldbus, Keypad, and Power Xpert inControl
- Sensorless vector control (SLV), U/f control, torque regulation
- Multi-line graphic display for user interface
- IGBT inverter technology with internal DC link
- Radio interference suppression filter included
- Protection rating NEMA 12 / IP54
- Supports multiple communication protocols including CANopen, Modbus TCP, BACnet MS/TP, DeviceNet, Ethernet IP, Modbus RTU, PROFIBUS
Professional Installation Requirements
- Installation must be performed by qualified personnel observing all relevant electrical and safety standards. Panel builder is responsible for temperature rise calculations, short-circuit rating, electromagnetic compatibility, and switchgear specifications.
Applications
- Industrial motor speed control
- Commercial and domestic motor applications
- Variable frequency drive for 3-phase motors
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Improves energy efficiency by optimizing motor speed and reducing power consumption
- Reduces mechanical stress on motors, extending equipment lifespan and reducing waste
- Complies with RoHS standards limiting hazardous substances
Warranty Information
Warranty terms as per Eaton's standard policy; typically includes coverage against manufacturing defects.
Available Now
The Eaton DG1 Variable Frequency Drive 400 V AC 3-phase 61 A 30 kW IP54 is available for immediate purchase. Ideal for industrial and commercial motor control applications.
