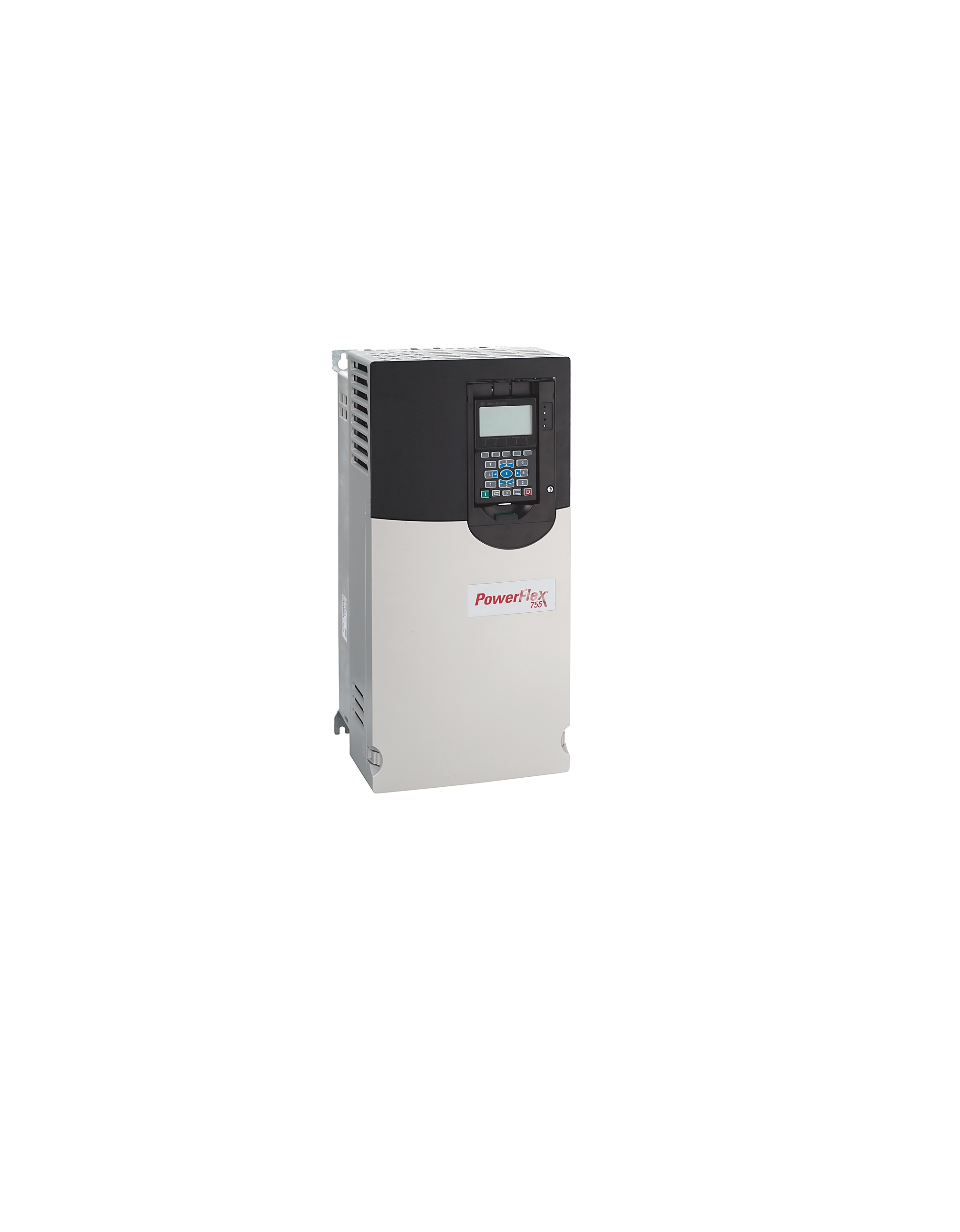

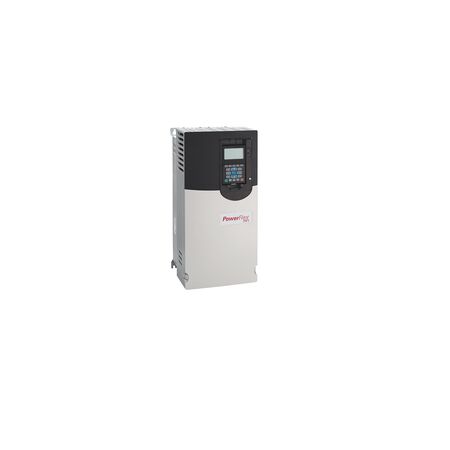

Variable Frequency Drive 30kW | 60 Amps Current Rating | Forced Air Cooling | Open Type Enclosure by Allen-Bradley

BRAND: Allen-Bradley
SKU: 20F11NC060JA0NNNNN
$5,107.40 List price: $5,663.80
+ −
30 Days Return Delivery Options
Variable frequency drive with 30kW power rating and 60 Amps current—ideal for industrial motor control and automation. Built for HVAC systems and manufacturing processes, featuring forced air cooling for reliable operation.

Product Name/Title: Variable Frequency Drive 30kW | 60 Amps Current Rating | Forced Air Cooling | Open Type Enclosure by Allen-Bradley

Brand: Allen-Bradley

SKU: 20F11NC060JA0NNNNN

Alternatively Known As: PowerFlex 753 VFD, Allen Bradley Variable Frequency Drive, 30kW AC Drive, 20F11NC060JA0NNNNN VFD

Technical Specifications
  • Power Rating: 30kW (Normal Duty), 22kW (Heavy Duty)
  • Current Rating: 60 Amps
  • Input Voltage: 400 VAC, 3 Phase
  • Frame Size: 3
  • Cooling: Forced Air
  • Input Type: AC with DC terminals
  • Enclosure: Open Type
  • Filter: Included with CM jumper installed
  • Output Stage: DB Transistor
  • Human Interface Module: Not included
  • Dimensions (H x L x W): 300mm x 250mm x 200mm
  • Weight: 15 kg
Key Features
  • Embedded I/O for flexible control
  • Standard protection features
  • Forced air cooling for reliable operation
  • AC input with DC terminals
  • Open type enclosure
  • 60 Amps current rating
  • Filtered input with CM jumper installed
  • DB Transistor output stage
  • No Human Interface Module (HIM) included
Professional Installation Requirements
  • Installation must be performed by a qualified electrician familiar with industrial drives and compliant with local electrical codes.
Applications
  • Industrial motor control and automation
  • Manufacturing process drives
  • HVAC systems requiring variable speed control
  • Pumps, fans, and conveyor systems
Standards & Compliance
  • AS/NZS 3000 – Wiring Rules (Electrical Installation)
  • AS/NZS 3820 – Essential Safety Requirements for Electrical Equipment
Environmental Benefits
  • Energy-efficient motor control reduces power consumption
  • Improved process control minimizes waste and emissions
Warranty Information

1 year warranty covering manufacturing defects and workmanship.

Available Now

This product available now for immediate purchase.
