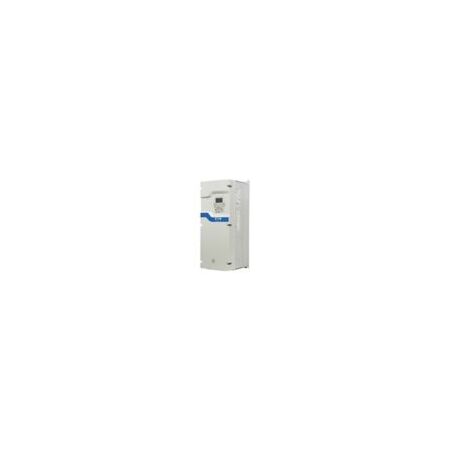

Variable Frequency Drive 37kW | 400V AC | IP54 Protection | Efficient Cooling by Eaton
Eaton's Variable Frequency Drive offers 37kW power output and 400V AC operation—ideal for industrial motor speed control. Built for commercial and domestic applications, it features IP54 protection and a temperature-controlled fan for efficient cooling.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Variable Frequency Drive 37kW | 400V AC | IP54 Protection | Efficient Cooling by Eaton
Brand: Eaton
SKU: Y7-9702-4107-00P
Alternatively Known As: Eaton DG1 VFD, Eaton Variable Frequency Drive 37kW, Eaton 3-phase VFD, DG1 400V Drive
Technical Specifications
- Voltage: 400 V AC, 3-phase
- Current: 72 A nominal, 82.1 A at 110% overload
- Power Output: 37 kW nominal, 45 kW at 110% overload
- Protection: IP54 / NEMA 12
- Cooling: Temperature-controlled fan
- Communication Interfaces: CANopen, Modbus RTU, DeviceNet, BACnet MS/TP, PROFIBUS, SmartWire-DT, Ethernet IP
- Operating Temperature Range: -10 °C to 50 °C
- Overload Capacity: 150% for short durations
- Efficiency: 98.3%
- Safety Function: Safe Torque Off (STO) SIL1, PLc Cat 1
- Frequency Range: 0 to 400 Hz
- Braking Resistance: 6.5 Ω
- Pollution Degree: 2
- Altitude: Max 1000 m (derating above)
- Mounting Position: Vertical
- Dimensions (H x L x W): 630mm x 294mm x 238mm
- Weight: 35.2 kg
Key Features
- Temperature-controlled fan for efficient cooling
- Externally accessible fan for easy maintenance
- Multiple parameterization options including Fieldbus, Keypad, and Power Xpert inControl
- Radio interference suppression filter and DC link choke included
- Multi-line graphic display and internal DC link
- IGBT inverter technology
- Supports various communication interfaces including CANopen, Modbus RTU, DeviceNet, BACnet MS/TP, PROFIBUS, SmartWire-DT, Ethernet IP
- Protection rating IP54 / NEMA 12
- Safe Torque Off (STO) safety function SIL1, PLc Cat 1
- High efficiency of 98.3%
Professional Installation Requirements
- Installation must be performed by qualified personnel following local electrical codes and standards. Proper panel design and heat dissipation calculations are required.
Applications
- Industrial motor speed control
- Commercial and domestic motor applications
- Variable frequency drive for 3-phase motors
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
- AS/NZS 3820 – Essential Safety Requirements for Electrical Equipment
Environmental Benefits
- Energy-efficient motor control reduces power consumption and operational costs
- Improved motor lifespan through precise speed and torque control
- Reduced electromagnetic interference with built-in suppression filters
Warranty Information
Warranty terms as per Eaton's standard policy; typically includes coverage against manufacturing defects.
Available Now
The Eaton DG1 Variable Frequency Drive is available for immediate purchase, ideal for industrial and commercial motor control applications.
