Variable Frequency Drive 400V | 170A Output Current | IP54 Protection | Ethernet Communication by Eaton
Eaton's variable frequency drive operates at 400V with a 170A output current, featuring IP54 protection and Ethernet communication. Ideal for industrial motor speed control and automation systems, it offers high efficiency and advanced motor control to reduce energy consumption and extend equipment life.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.

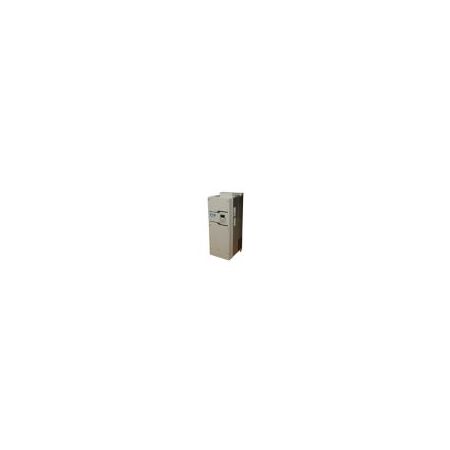

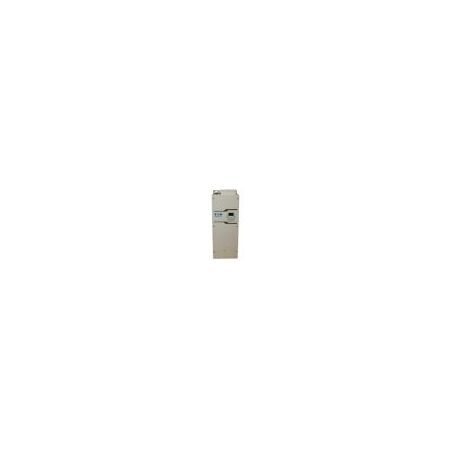

Product Name/Title: Variable Frequency Drive 400V | 170A Output Current | IP54 Protection | Ethernet Communication by Eaton
Brand: Eaton
SKU: Y7-9702-5111-00P
Alternatively Known As: Eaton DG1 VFD, Eaton Variable Frequency Drive, DG1 400V Drive, Eaton 3-phase VFD, DG1 170A Drive
Technical Specifications
- Voltage: 400 V AC, 3-phase
- Current: 170 A nominal output current
- Power: 90 kW rated operational power
- Protection rating: IP54 / NEMA12
- Cooling: Temperature-controlled external fan
- Communication: Ethernet IP, DeviceNet, BACnet MS/TP, SmartWire-DT, optional PROFIBUS, Modbus TCP, Modbus RTU, CANopen
- Control modes: U/f control, sensorless vector control, speed control with slip compensation, torque regulation
- Overload capacity: 110% for rated operational power
- Efficiency: 98.6%
- Operating temperature range: -10 °C to 50 °C
- Altitude: Max 3000 m with derating above 1000 m
- Safety function: Safe Torque Off (STO), SIL1, PLc Cat 1
- Rated frequency range: 45 Hz to 66 Hz
- Number of inputs: 2 analog, 8 digital
- Number of outputs: 2 analog, 1 digital, 3 relay outputs
- Dimensions (H x L x W): 889mm x 341mm x 288mm
- Weight: 70.6 kg
Key Features
- Externally accessible temperature-controlled fan
- Parameterization via Fieldbus, Keypad, Power Xpert inControl
- Internal DC link and DC link choke
- Multi-line graphic display
- IGBT inverter technology
- PC connection capability
- Radio interference suppression filter
- Protection: Finger and back-of-hand proof against direct contact
- Communication interfaces including Ethernet IP, DeviceNet, BACnet MS/TP, SmartWire-DT, optional PROFIBUS, Modbus TCP, Modbus RTU, CANopen
- Supports U/f control, sensorless vector control, speed control with slip compensation, and torque regulation
- Rated operational power up to 110 kW at 400 V
- High efficiency of 98.6%
Professional Installation Requirements
- Installation must be performed by qualified personnel following local electrical codes and standards. Proper panel builder responsibilities include temperature rise calculation, short-circuit rating, electromagnetic compatibility, and switchgear specifications.
Applications
- Industrial motor speed control
- Automation systems
- HVAC systems
- Pumps and fans control
- Conveyor systems
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- High efficiency reduces energy consumption and operational costs
- Advanced motor control reduces mechanical wear and extends equipment life
- Supports energy-saving motor speed regulation
Warranty Information
Standard Eaton warranty applies; please refer to Eaton's official warranty policy for details.
Available Now
The Eaton DG1 Variable Frequency Drive is available for immediate purchase, ideal for industrial motor control and automation applications.
