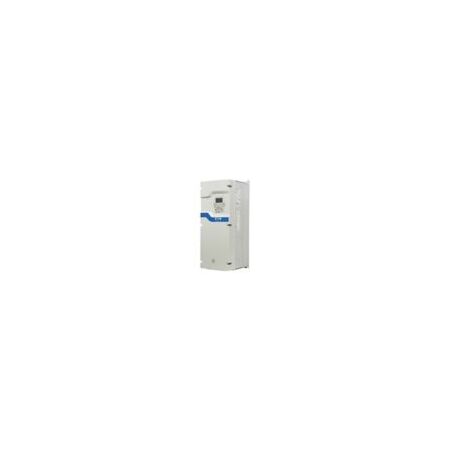

Variable Frequency Drive 45kW | 400V 3-Phase | IP54 Protection & Smart Communication by Eaton
Eaton's Variable Frequency Drive offers 45kW power and 400V 3-phase operation—ideal for industrial motor speed control. Built for commercial and domestic applications, it features IP54 protection and smart communication interfaces for enhanced performance.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Variable Frequency Drive 45kW | 400V 3-Phase | IP54 Protection & Smart Communication by Eaton
Brand: Eaton
SKU: Y7-9702-4111-00P
Alternatively Known As: Eaton DG1 VFD, Eaton Variable Frequency Drive, DG1 45kW Drive, Eaton 3-phase VFD
Technical Specifications
- Voltage: 400 V AC, 3-phase (also supports 480 V and 500 V)
- Current: 87 A nominal output current
- Power: 45 kW rated output power
- Frequency range: 0 to 400 Hz output frequency
- Protection: IP54 / NEMA 12
- Communication: SmartWire-DT, PROFIBUS, Modbus TCP, Ethernet IP, CANopen, DeviceNet, Modbus RTU, BACnet MS/TP
- Control modes: U/f control, slip compensation, sensorless vector control, torque regulation
- Cooling: Temperature-controlled external fan
- Safety: Safe Torque Off (STO) SIL1, PLc Cat 1
- Overload capacity: 110% and 150% overload ratings
- Operating temperature: -10 °C to 50 °C
- Altitude: Up to 3000 m with derating
- Pollution degree: 2
- Weight: 35.2 kg
- Dimensions: 630 mm (H) x 237.7 mm (W) x 294 mm (D)
- Dimensions (H x L x W): 630mm x 294mm x 238mm
- Weight: 35.2 kg
Key Features
- Externally accessible temperature-controlled fan
- Parameterization via Fieldbus, Keypad, and Power Xpert inControl
- DC link choke for improved performance
- Multi-line graphic display for easy operation
- IGBT inverter technology
- Communication interfaces including SmartWire-DT, PROFIBUS, Modbus TCP, Ethernet IP, CANopen, DeviceNet, Modbus RTU, BACnet MS/TP
- Protection rating NEMA 12 / IP54
- Supports U/f control, slip compensation, sensorless vector control, and torque regulation
- Safe Torque Off (STO) safety function SIL1, PLc Cat 1
Professional Installation Requirements
- Professional installation by a qualified electrician is required to ensure compliance with electrical safety standards and proper integration with existing systems.
Applications
- Industrial motor speed control
- Commercial and domestic motor applications
- Variable frequency drive for 3-phase motors
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
- Complies with AS/NZS 3820 – Essential Safety Requirements for Electrical Equipment
Environmental Benefits
- Energy-efficient motor control reduces power consumption
- Improved motor lifespan through precise speed and torque regulation
- Reduced heat dissipation and noise with temperature-controlled fan
Warranty Information
Warranty details available from Eaton; typically includes coverage against manufacturing defects.
Available Now
The Eaton DG1 Variable Frequency Drive 400 V 3-phase 87 A 45 kW IP54 is available now for immediate purchase. Ideal for industrial and commercial motor control applications.
