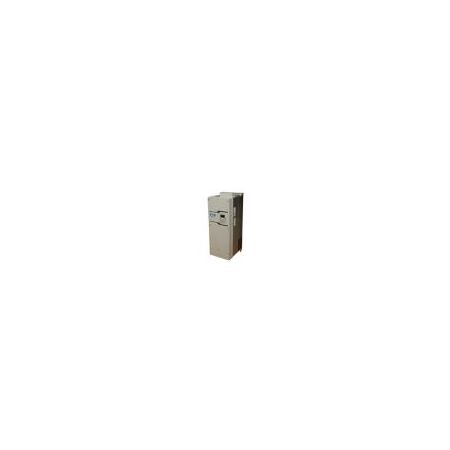

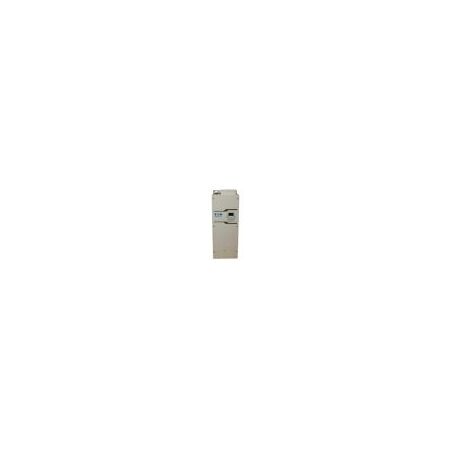

Variable Frequency Drive 75kW | 140A Output Current | NEMA 12/IP54 Protection | Eaton DG1-34140FN-C54C
The Eaton DG1 Variable Frequency Drive offers 75kW power and 140A output current—ideal for industrial motor speed control and HVAC systems. Built for efficiency with a NEMA 12/IP54 rated enclosure, it features a temperature-controlled fan and supports multiple communication protocols for seamless integration.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Variable Frequency Drive 75kW | 140A Output Current | NEMA 12/IP54 Protection | Eaton DG1-34140FN-C54C
Brand: Eaton
SKU: Y7-9702-5107-00P
Alternatively Known As: Eaton DG1 VFD, Eaton Variable Frequency Drive, DG1 140A Drive, Eaton 75kW VFD, DG1 Motor Controller
Technical Specifications
- Voltage: 400 V AC, 3-phase
- Current: 140 A nominal output current
- Power: 75 kW rated operational power
- Frequency range: 0 to 400 Hz output frequency
- Protection: NEMA 12 / IP54 rated enclosure
- Communication interfaces: SmartWire-DT, Modbus TCP/RTU, DeviceNet, PROFIBUS, CANopen, Ethernet IP, BACnet MS/TP
- Cooling: Temperature-controlled external fan
- Overload capacity: 110% for 60 seconds, 150% for 60 seconds
- Safety: Safe Torque Off (STO) SIL1, PLc Cat 1
- Efficiency: 98.6%
- Ambient operating temperature: -10 °C to 50 °C
- Altitude: Max 3000 m with derating above 1000 m
- Pollution degree: 2
- Radio interference suppression filter and DC link choke included
- Dimensions (H x L x W): 889mm x 341mm x 288mm
- Weight: 70.6 kg
Key Features
- Externally accessible temperature-controlled fan
- Parameterization via Fieldbus, Keypad, and Power Xpert inControl
- Radio interference suppression filter and DC link choke included
- Multi-line graphic display for easy operation
- Supports SmartWire-DT and multiple communication protocols
- High efficiency of 98.6%
- Protection rating NEMA 12 / IP54
- Safe Torque Off (STO) safety function SIL1, PLc Cat 1
Professional Installation Requirements
- Installation must be performed by qualified personnel following local electrical codes and Eaton installation guidelines. Proper panel builder responsibilities include temperature rise calculation, short-circuit rating, electromagnetic compatibility, and connection integrity.
Applications
- Industrial motor speed control
- Commercial HVAC systems
- Manufacturing automation
- Pumps, fans, and conveyor systems
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Energy-efficient motor control reduces power consumption and operational costs
- Improved process control reduces waste and enhances system longevity
- Supports reduced emissions through optimized motor performance
Warranty Information
Standard Eaton warranty applies; please refer to Eaton's official warranty policy for details.
Available Now
The Eaton DG1 Variable Frequency Drive is available for immediate purchase, ideal for industrial and commercial motor control applications.
