Variable Frequency Drive 90kW | 170 Amps | Ethernet/IP & Forced Air Cooling | Open Type by Allen-Bradley

BRAND: Allen-Bradley
SKU: 20G1ANC170JA0NNNNN
$16,320.20 List price: $18,097.90
Free pick up (over 25 kg or over 1 meter)
For delivery quote message
30 Days Return Delivery Options

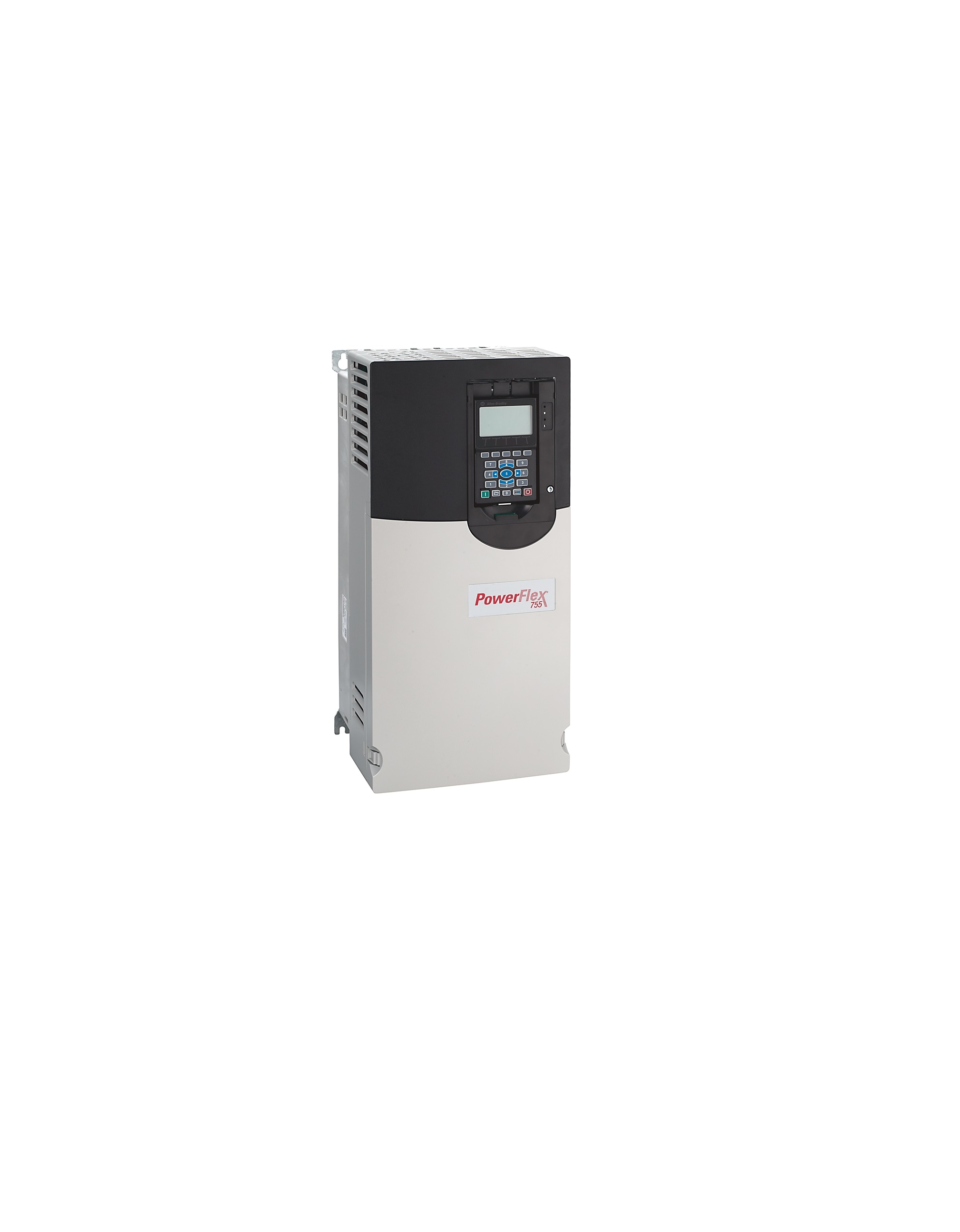

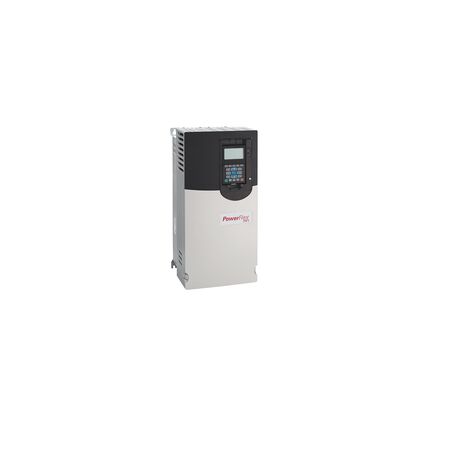

This 90kW variable frequency drive features 170 Amps current and Ethernet/IP connectivity—ideal for industrial motor control and automation. Built for manufacturing processes and HVAC systems, it offers forced air cooling and an open type enclosure for efficient operation.

Product Name/Title: Variable Frequency Drive 90kW | 170 Amps | Ethernet/IP & Forced Air Cooling | Open Type by Allen-Bradley

Brand: Allen-Bradley

SKU: 20G1ANC170JA0NNNNN

Alternatively Known As: PowerFlex 755 VFD, Allen Bradley 90kW AC Drive, 20G1ANC170JA0NNNNN Variable Frequency Drive

Technical Specifications
  • Power Rating: 90kW Normal Duty, 75kW Heavy Duty
  • Current: 170 Amps
  • Voltage: 400 VAC, 3 Phase
  • Frame Size: 6
  • Cooling: Forced Air
  • Input: AC with Precharge
  • Enclosure: Open Type
  • Filtered with CM jumper installed
  • Transistor Type: DB
  • No DC Terminals
  • No Human Interface Module (HIM)
  • Dimensions (H x L x W): 600mm x 400mm x 300mm
  • Weight: 50 kg
Key Features
  • Embedded Ethernet/IP for network communication
  • Standard protection features
  • Forced air cooling
  • AC input with precharge
  • No DC terminals
  • Open type enclosure
  • Filtered with CM jumper installed
  • DB Transistor
  • No Human Interface Module (HIM)
Professional Installation Requirements
  • Installation must be performed by a qualified electrician experienced with industrial drives to ensure compliance with electrical standards and safety.
Applications
  • Industrial motor control and automation
  • Manufacturing process drives
  • HVAC systems
  • Pumps and fans control
Standards & Compliance
  • Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
  • Complies with AS/NZS 3820 – Essential Safety Requirements for Electrical Equipment
Environmental Benefits
  • Energy-efficient motor control reduces power consumption
  • Improves process efficiency and reduces waste
  • Supports networked control for optimized energy use
Warranty Information

1 year warranty covering manufacturing defects and performance issues.

Available Now

This product available now for immediate purchase.
