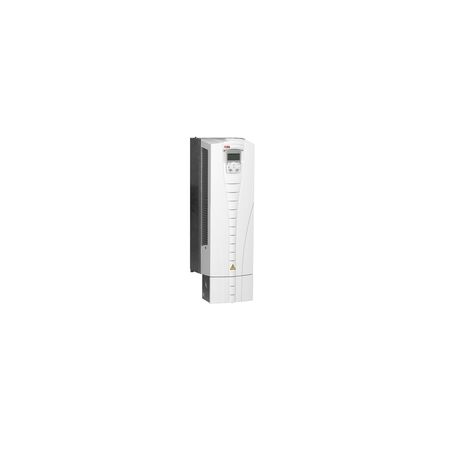

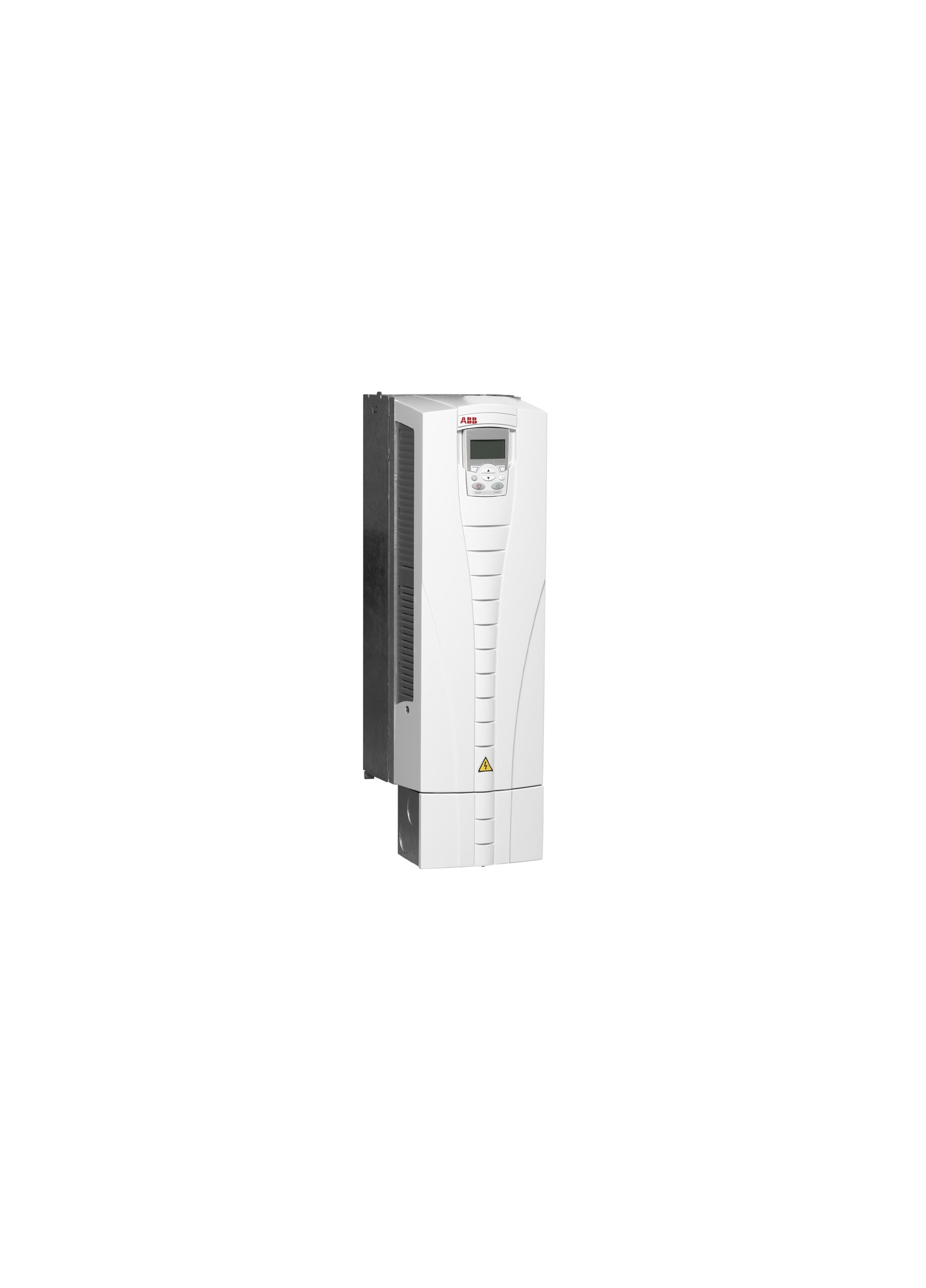

Variable Frequency Drive 90 kW | 180A Output Current | IP21 Protection | Wall-Mounted by ABB

BRAND: ABB
SKU: ACS550-01-180A-4
$11,025.60 List price: $12,226.60
Free pick up (over 25 kg or over 1 meter)
For delivery quote message
30 Days Return Delivery Options
The ABB ACS550-01-180A-4 is a 90 kW variable frequency drive designed for efficient motor speed control. With a 180A output current and IP21 protection, it's ideal for industrial applications like pumps and conveyor systems, ensuring reliable performance and energy savings.

Product Name/Title: Variable Frequency Drive 90 kW | 180A Output Current | IP21 Protection | Wall-Mounted by ABB

Brand: ABB

SKU: ACS550-01-180A-4

Alternatively Known As: Variable Frequency Drive, VFD, Inverter Drive, Motor Speed Controller

Technical Specifications
  • Number of Phases: 3
  • Degree of Protection: IP21
  • Enclosure Type NEMA: Type 1
  • Frequency Range: 47.5 to 63 Hz
  • Frame Size: R5
  • Input Voltage (Uin): 380 to 480 V
  • Mounting Type: Wall-mounted
  • Output Current, Normal Use (In): 180A
  • Output Current, Heavy-Duty Use (IHD): 156A
  • Output Power, Normal Use (Pn): 90 kW
  • Output Power, Heavy-Duty Use (PHD): 75 kW
  • Efficiency Level: IE2
  • Dimensions (H x L x W): 600mm x 250mm x 300mm
  • Weight: 50 kg
Key Features
  • Three-phase input
  • IP21 degree of protection
  • Wall-mounted Type 1 enclosure
  • High efficiency level IE2
  • Supports input voltage 380-480 V
  • Output current 180A for normal use
  • Output power 90 kW for normal use
Professional Installation Requirements
  • Installation must be performed by a qualified electrician familiar with industrial drives and electrical safety standards.
Applications
  • Industrial motor speed control
  • Pumps, fans, and conveyor systems
  • Manufacturing and processing plants
Standards & Compliance
  • AS/NZS 3000 – Wiring Rules (Electrical Installation)
  • AS/NZS 3820 – Essential Safety Requirements for Electrical Equipment
Environmental Benefits
  • Improves energy efficiency by optimizing motor speed and reducing power consumption
  • Reduces carbon footprint by lowering energy use in industrial applications
Warranty Information

1 year warranty covering manufacturing defects and performance issues.

Available Now

This product available now for immediate purchase.
